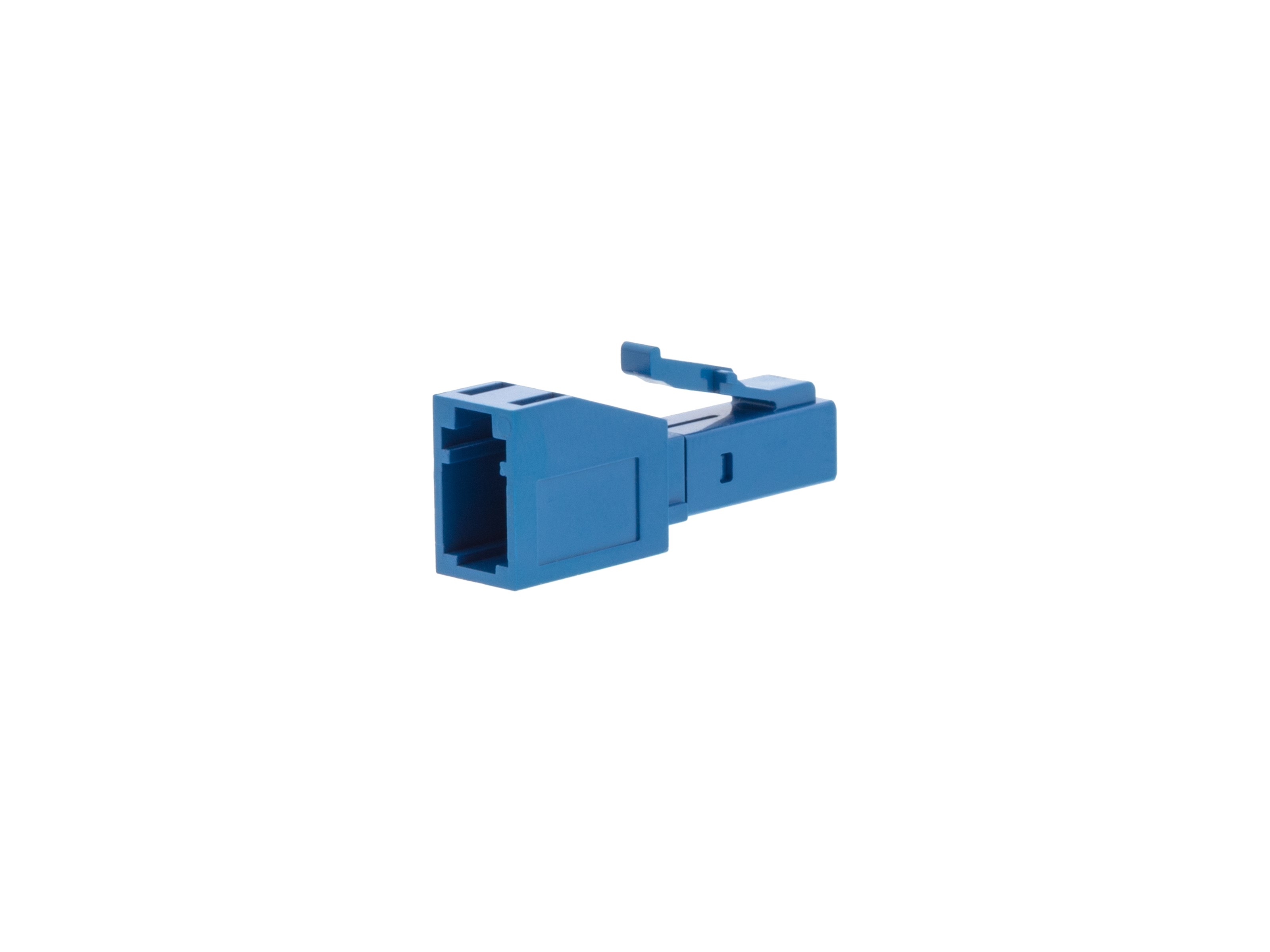

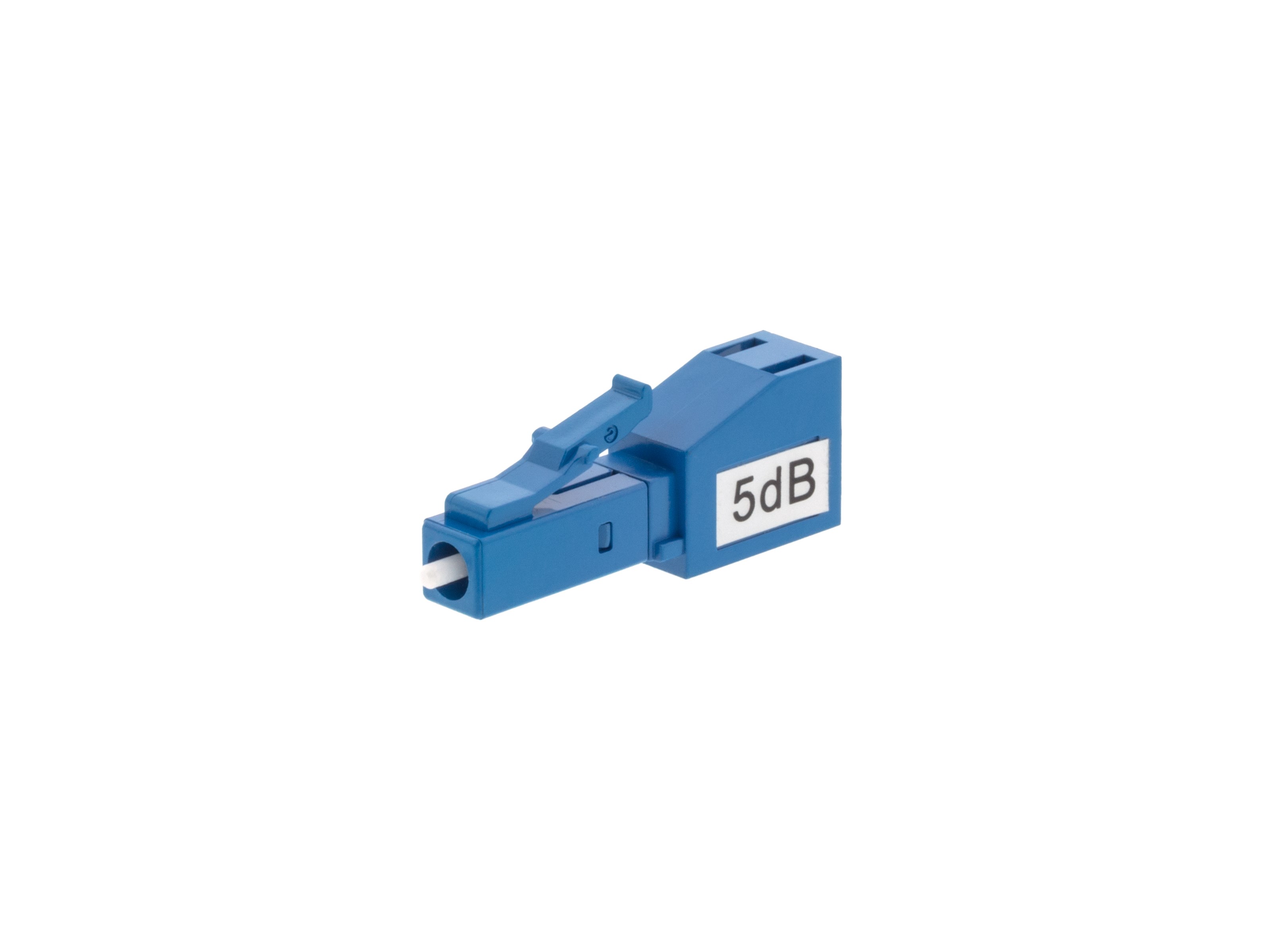

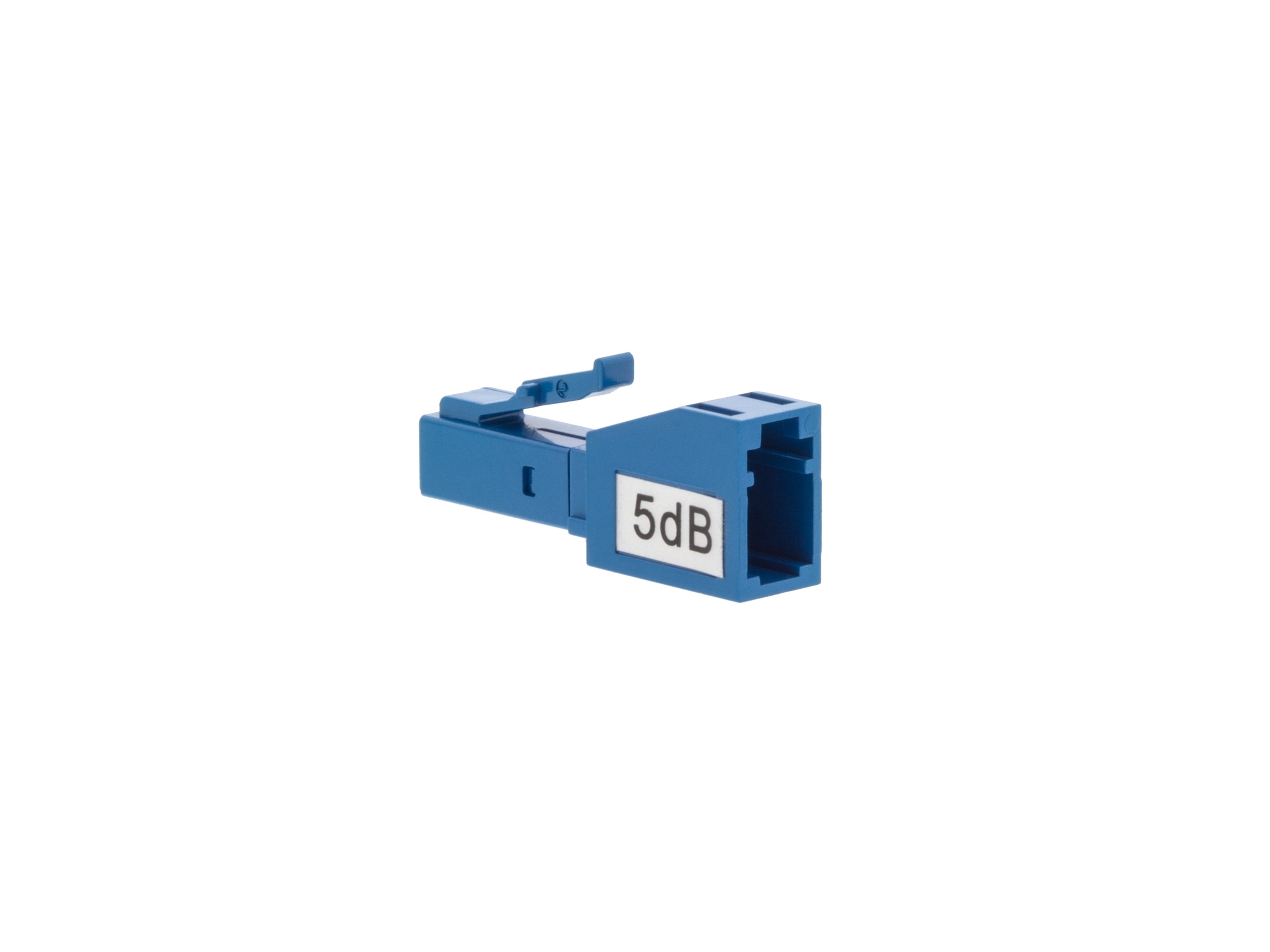

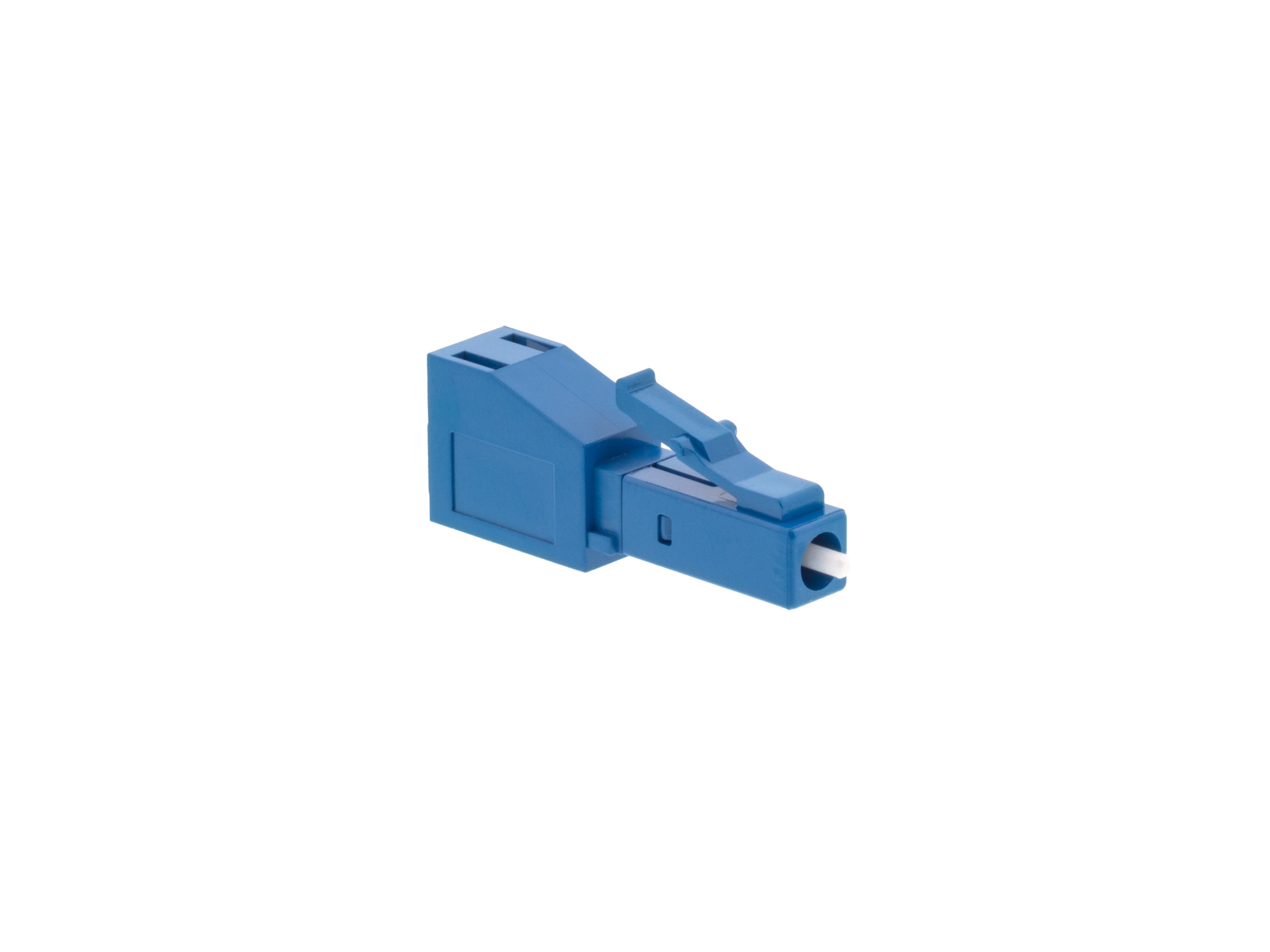

Fiber Optic Attenuator, Fixed - LC/UPC 5dB

This Fiber Optic Attenuator, Fixed - LC/UPC 5dB is necessary to prevent over saturating an optical receiver when the optical power is too high. Using attenuators will ensure low bit error rates and prevent damage to receiving components. LC male-female, 5db
SKU: FA-ULCSM-05
$12.60
This Fiber Optic Attenuator, Fixed - LC/UPC 5dB is necessary to prevent over saturating an optical receiver when the optical power is too high. Using attenuators will ensure low bit error rates and prevent damage to receiving components. LC male-female, 5db

  • Fiber Connectors: LC male-female
  • Operating Wavelengths: 1310nm, 1550nm
  • Polish Type: Ultra Physical Contact (UPC)
  • Maximum Optical Input Power: 200nW
  • Return Loss: ≥55dB
  • Bellcore Compliant
  • Wavelength Independent
Products specifications
Attribute nameAttribute value
Attenuation5db
ColorBlue
Connector ALC Male
Connector BLC Female
Fiber TypeSinglemode
Polish TypeUltra Physical Contact (UPC)
Wavelength1550nm
SKUFA-ULCSM-05
GTIN845425008435
