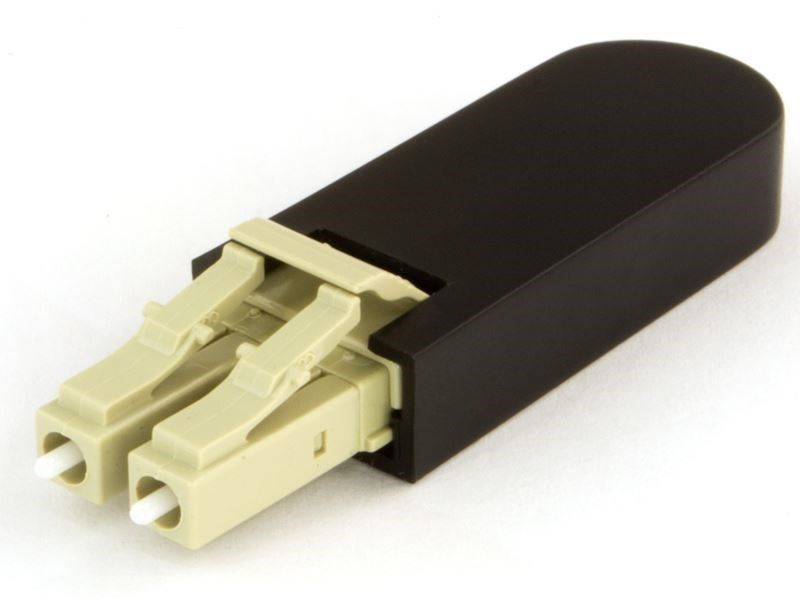

LC Fiber Optic Loopback Adapter - OM5, UPC, (50/125)

Networx® Fiber Optic Loopback Cables provide a return signal for fiber optic equipment which can be using for tesing purposes and isolating any network issues.
SKU: FL-LC5MM5
$9.53

Networx® Fiber Optic Loopback Cables provide a return signal for fiber optic equipment which can be using for tesing purposes and isolating any network issues. Built using high quality Corning Glass, these fiber loopback adapter cables will offer consistent performance time and time again.

Also known as Wide Band Multimode Fiber (WB MMF). The effective modal bandwidth for OM5 fiber is specified at lower and upper wavelengths of 4700 MHz/km at 850nm and 2470 MHz/km at 953nm. Fully compatible with OM3 & OM4 cabling. The OM5 optical and mechanical attributes are compliant with OM4 50/125 μm specifications and include the additional specifications of effective modal bandwidth and attenuation at 953 nm. WB MMF is intended for operation using vertical-cavity-surface-emitting-laser (VCSEL) transceivers across the 846 to 953 nm wavelength range. Parallel transmission is the default multimode fiber variant for data rates greater than or equal to 40G. Supports SWDM (shortwave wavelength division multiplexing) technology which can reduce fiber counts in optical transmission.

  • Connector: LC
  • Fiber Classification: OM5
  • Boot Size: 0.9mm
  • Fiber Type: 50/125
  • Insertion Loss: <0.1dB (Typical) 0.50dB (Maximum)
  • Operating Temperature: -40°C to +85°C
Products specifications
Attribute nameAttribute value
ColorIvory
Connector ALC Male
Connector BLC Male
ManufacturerNetworx®
Fiber TypeMultimode
Core Size50/125
Length2 Inch
Fiber ClassificationOM5
SKUFL-LC5MM5
GTIN00845425024336
