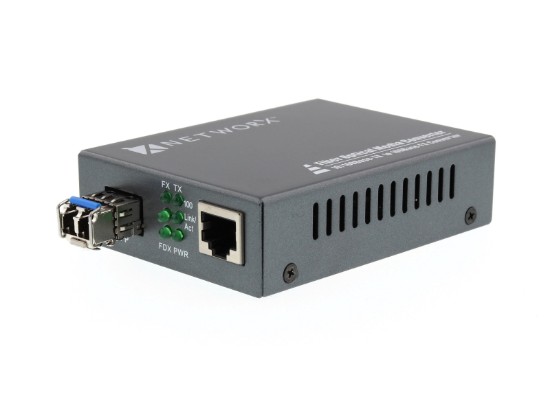

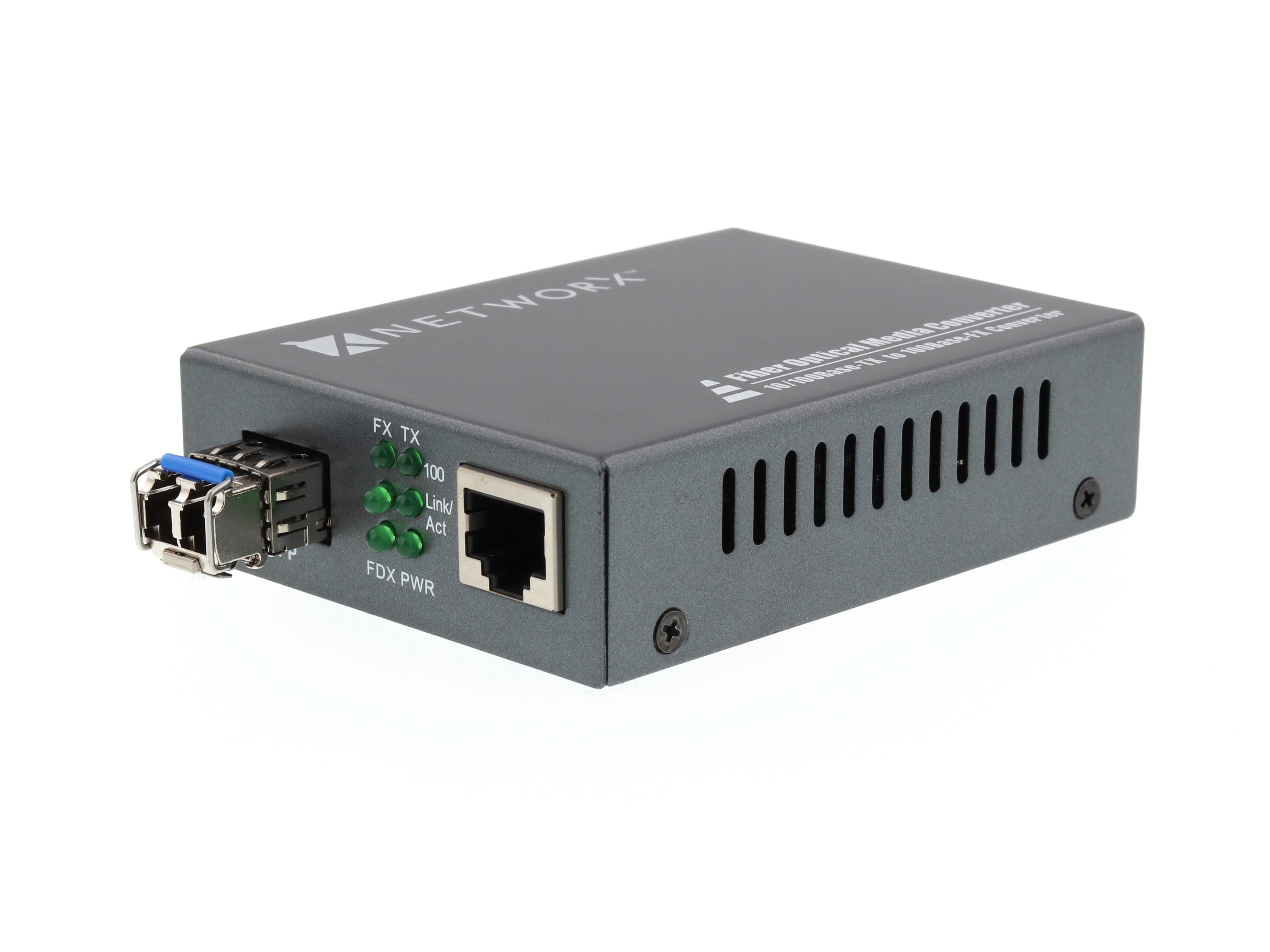

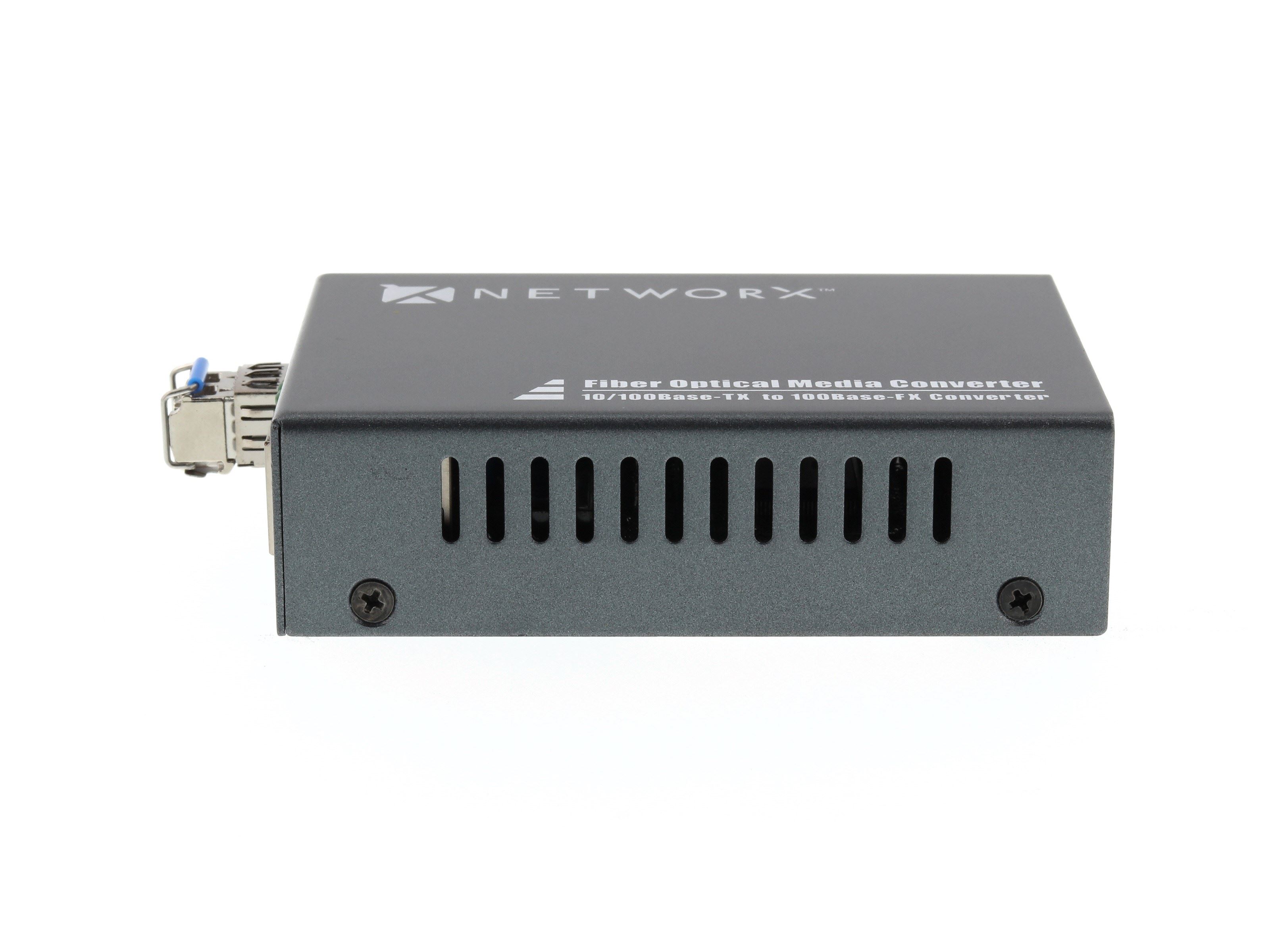

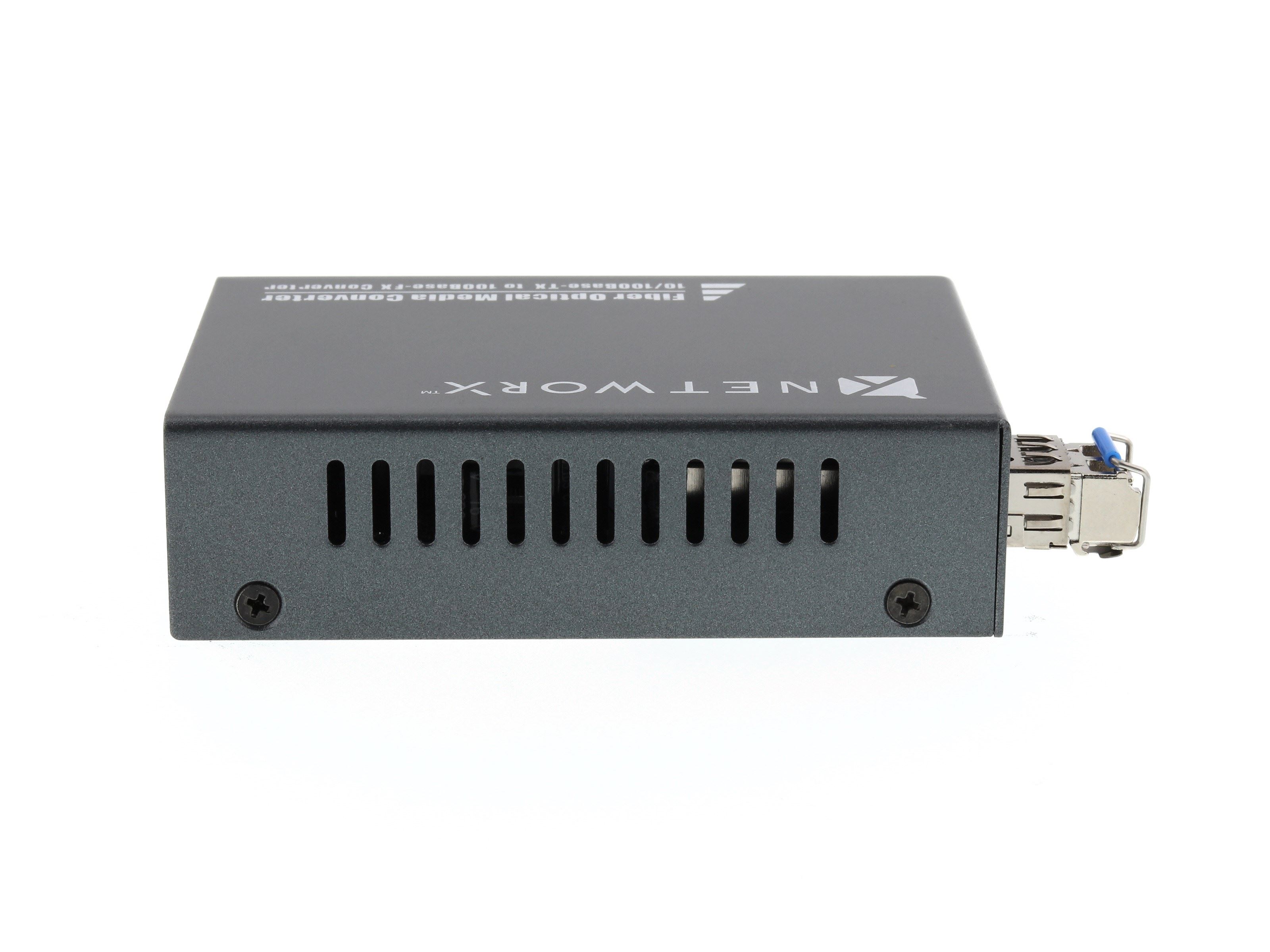

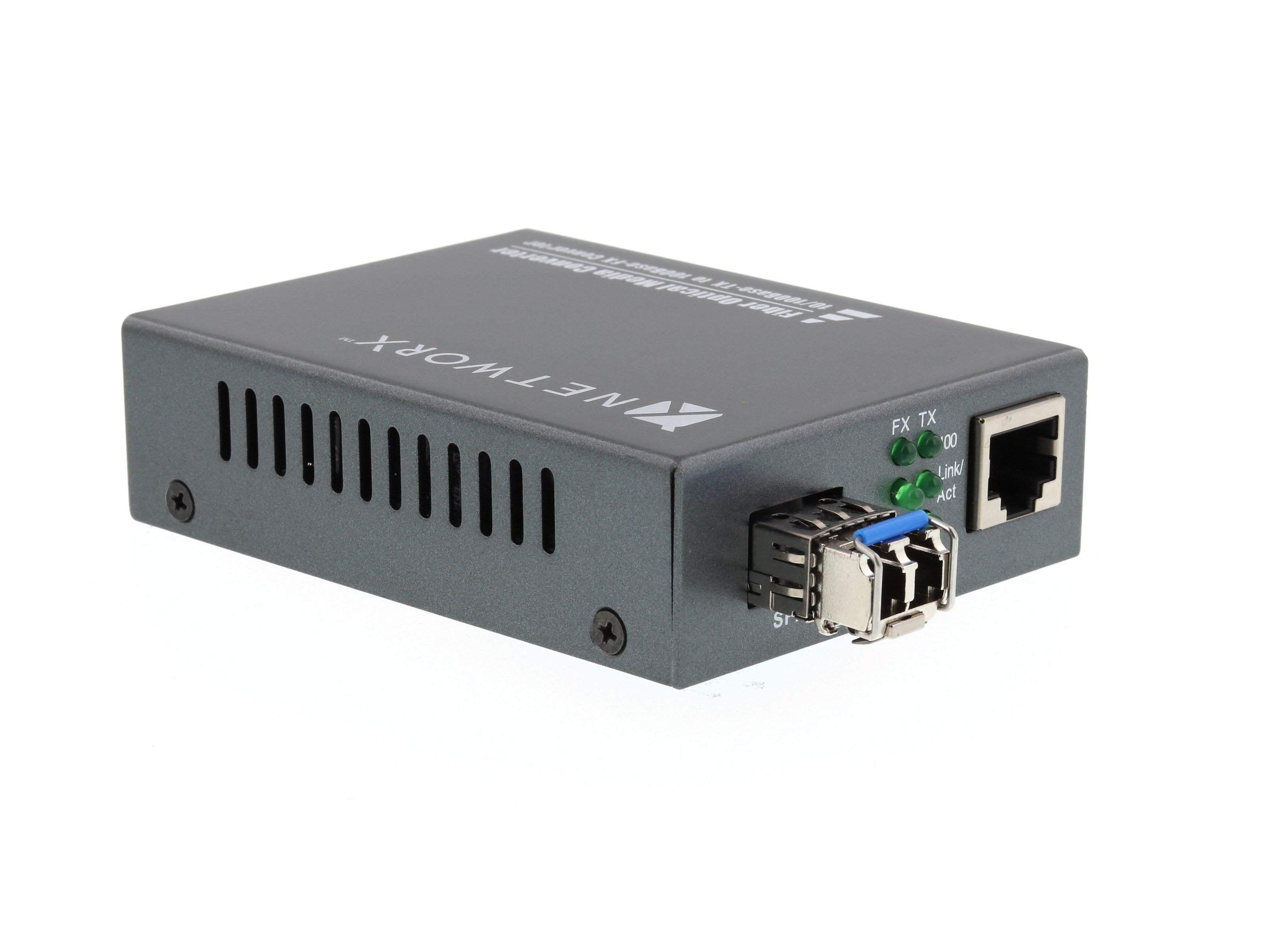

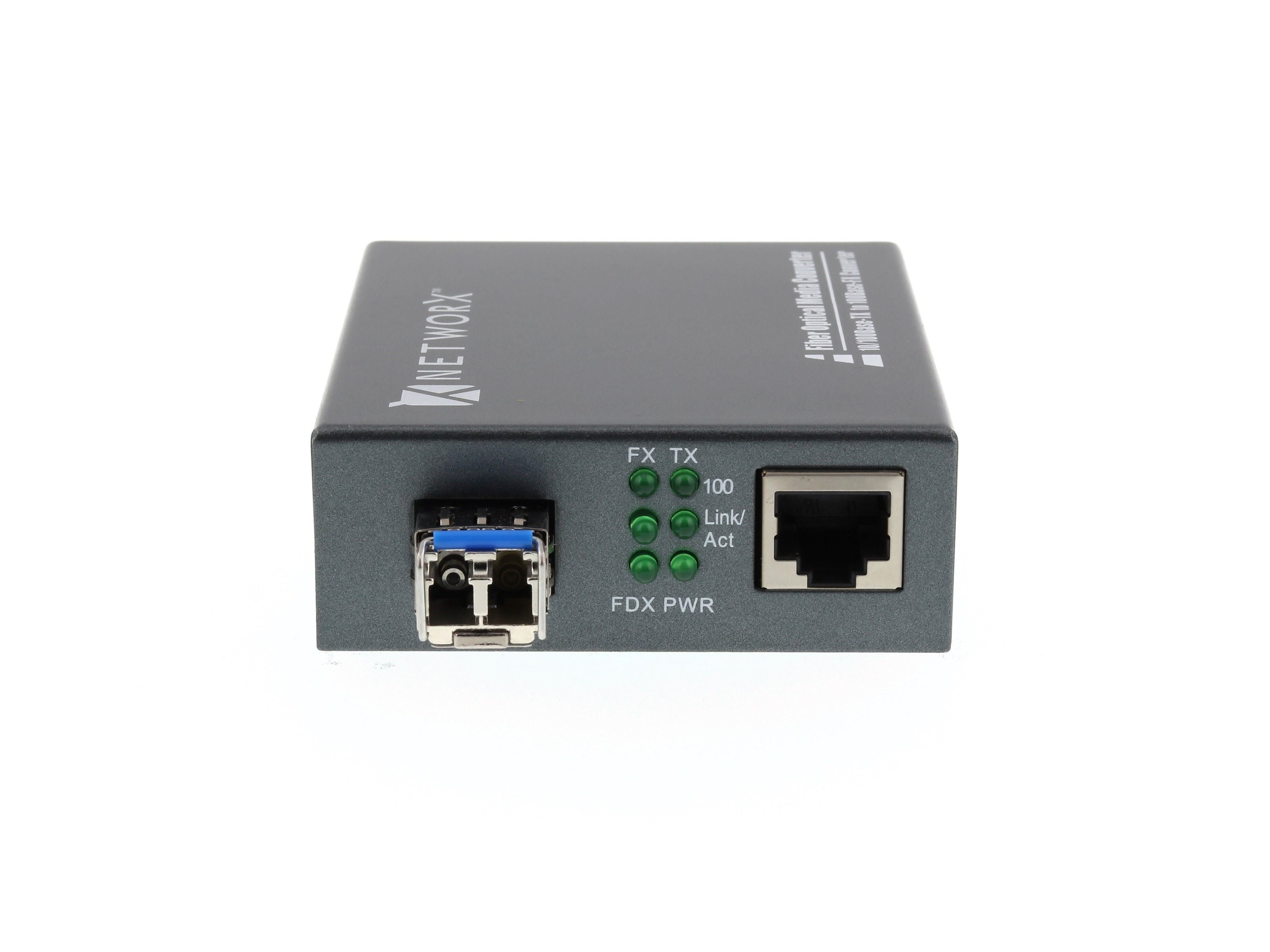

Fiber Media Converter - 100Base-FX, LC Multimode, 2km, 1310nm

This Fiber Transceiver / Media Converter converts data signal between 10/100Base-T/TX and 100Base-FX Fast Ethernet. Supports 50/125, 62.5/125, or 100/140 micron multimode Duplex LC fiber. Optical wavelength 1310nm, Maximum distance up to 2km.
SKU: FT-100MM-LC
$131.22
This product supports IEEE802.3UI 100Base-Tx/Fx protocol, as well as full duplex and half duplex mode. The transmission media adopts Cat5 twisted-pair with typical length of 100 meter. It features the function of automatically identifying the through line and cross wire (10/100M).

In conformity to IEEE 802.3 10 Base-T standard and IEEE 802.3u 100 Base-Tx/Fx. Max. 2M buffer memory built in chip. Back pressure flow control for full duplex IEEE802.3 X and half duplex. Automatic identification of MDI/MDI-X cross line. High performance 1.4Gpbs memory bandwidth. In conformity to safety code of FCC and 15 CLASS A and CE MARK.

  • Standard Protocol - IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX/FX
  • Connectors - One UTP RJ45, Two LC Fiber
  • Operation mode - Full Duplex or Half Duplex

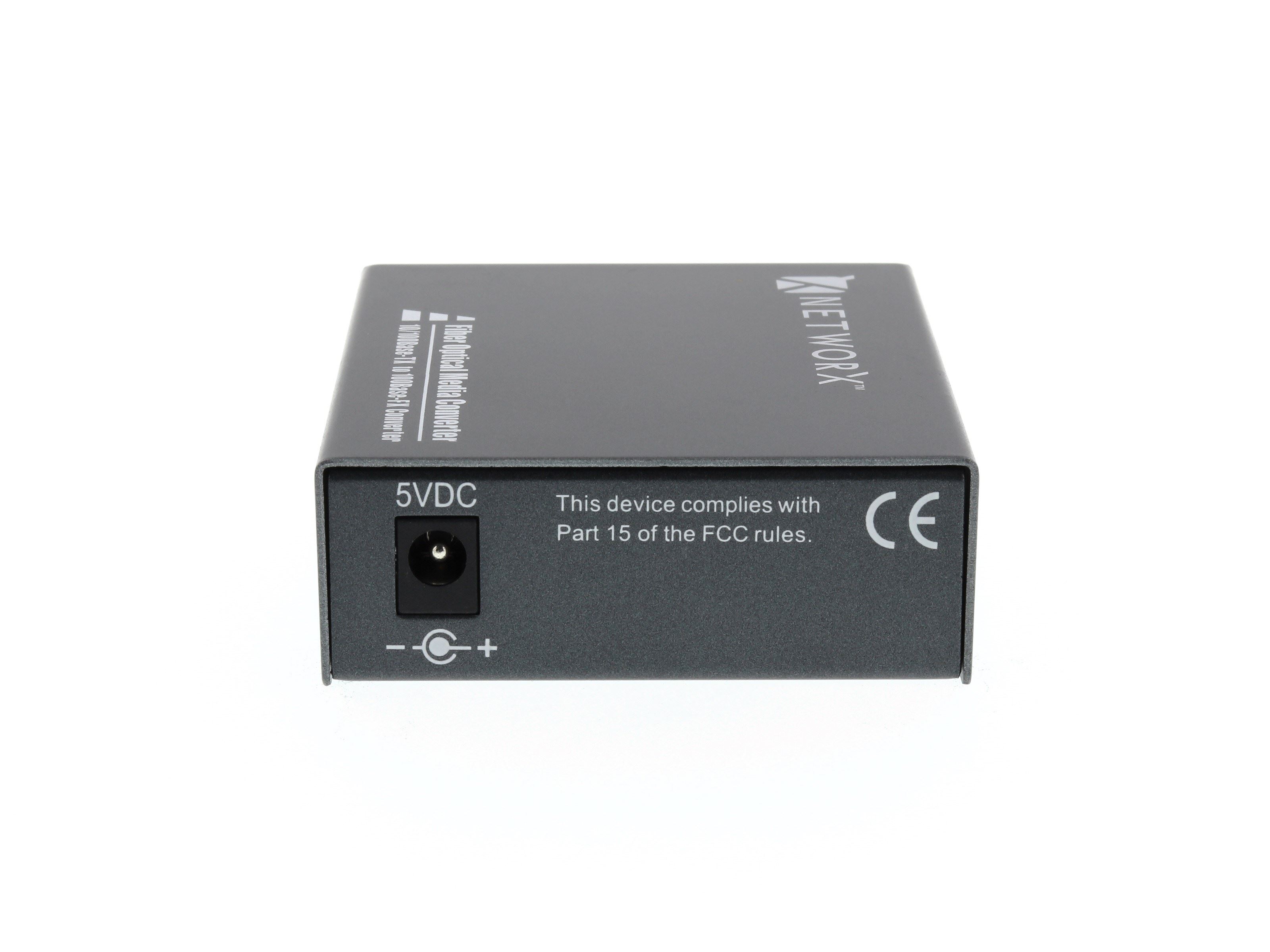

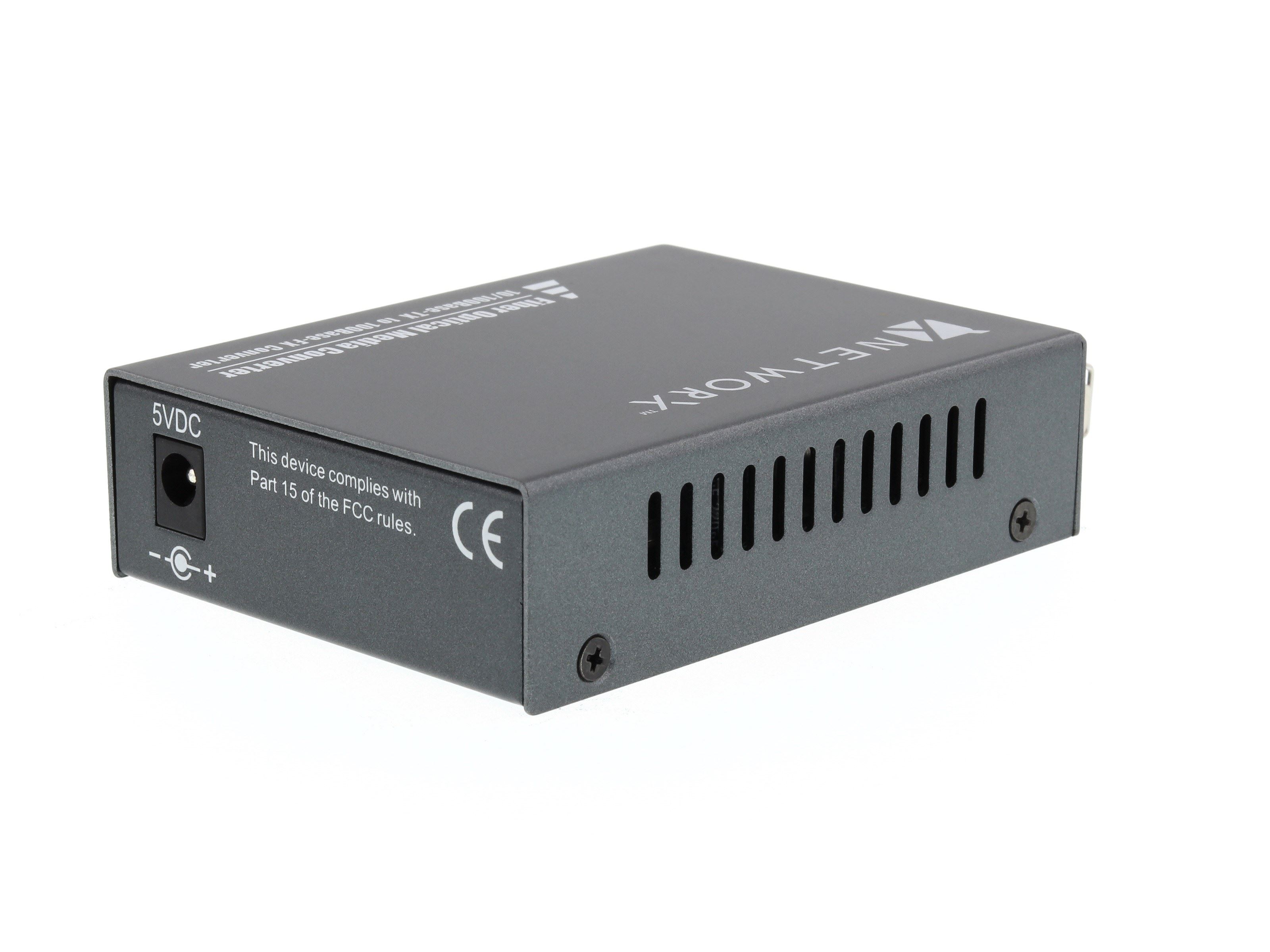

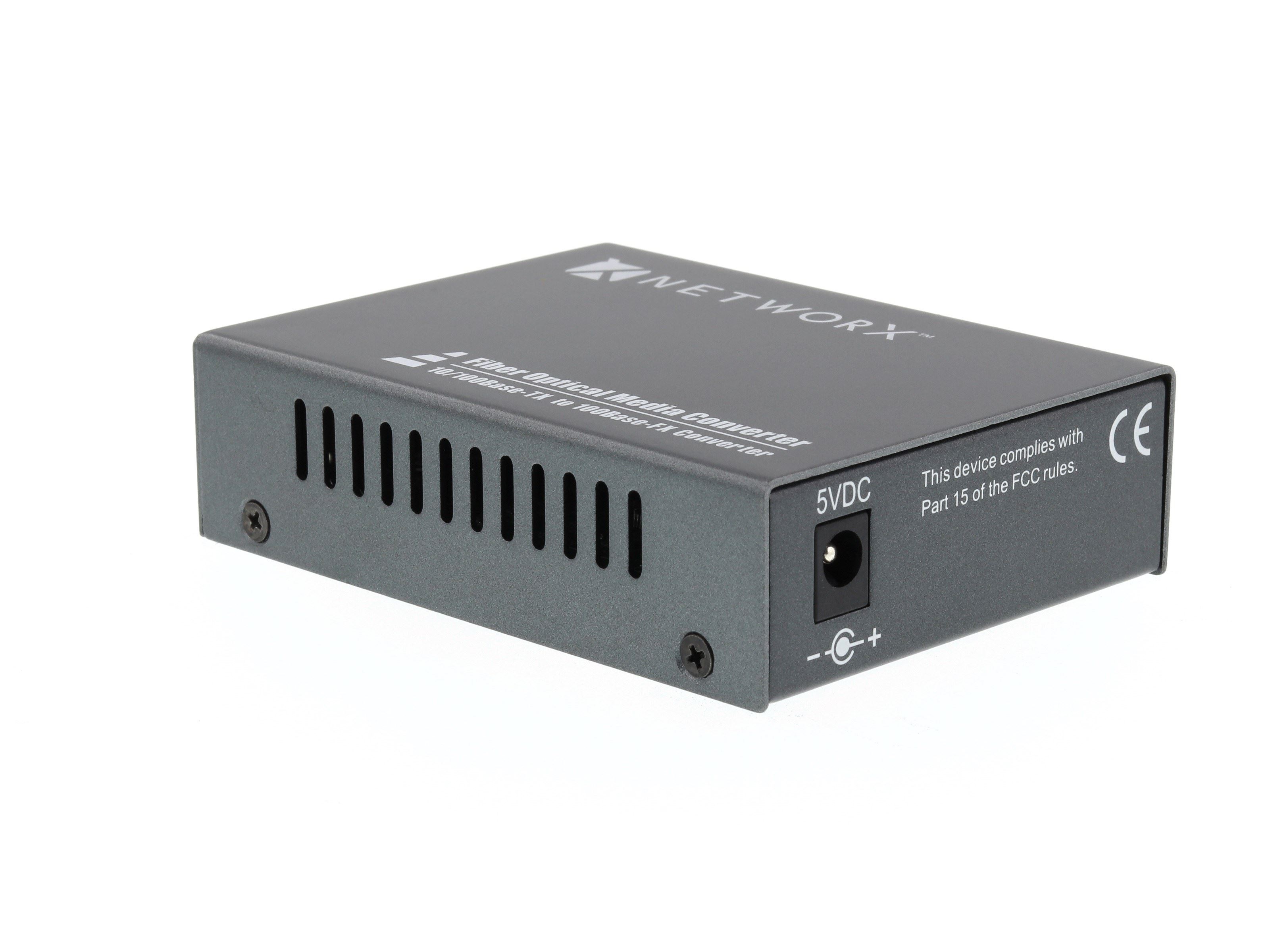

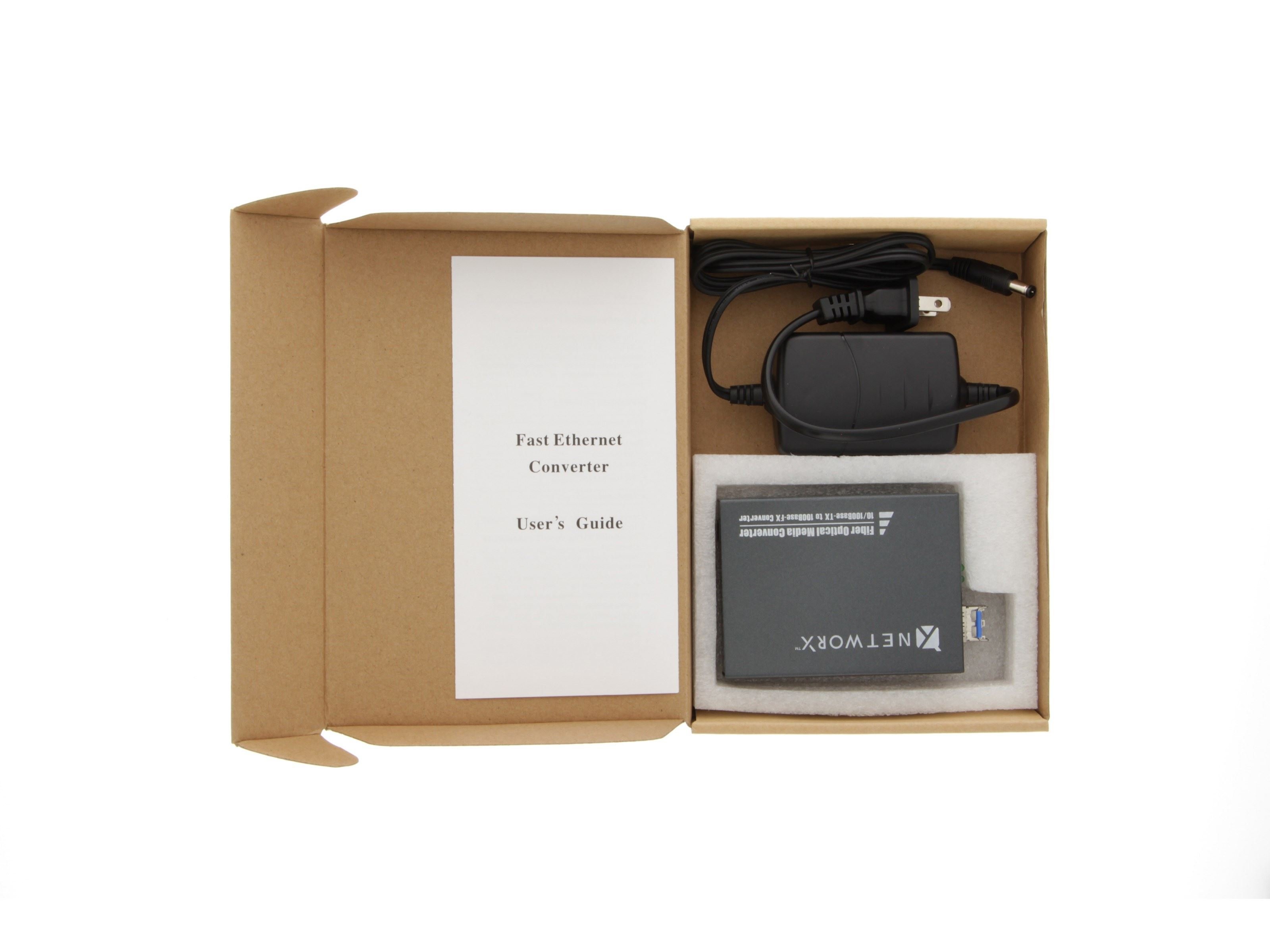

  • Power Supply - External AC-DC Power Adapter, US Standard
  • Fiber (micron) - 50/125, 62.5/125, or 100/140
  • Optical wavelength - 1310 nm
  • Transmission Distance - 2km
  • Optical Output Power - > -18 dBm
  • Receiving Sensitivity - < -31 dBm
Products specifications
Attribute nameAttribute value
ColorGray
Connector ALC Female
Connector BRJ45 Female
Fiber TypeMultimode
Maximum Data Transfer Rate10/100 Mbps
Maximum Transfer Distance2km
Wavelength1310nm
SKUFT-100MM-LC
GTIN845425008220
