Fiber Optic Attenuator SC/APC 20dB
Fiber Optic Attenuator SC/APC 20dB Fiber Attenuator SC/APC 20dB APC Fiber Attenuator SC 20dB SC APC Fiber Attenuator 20dB

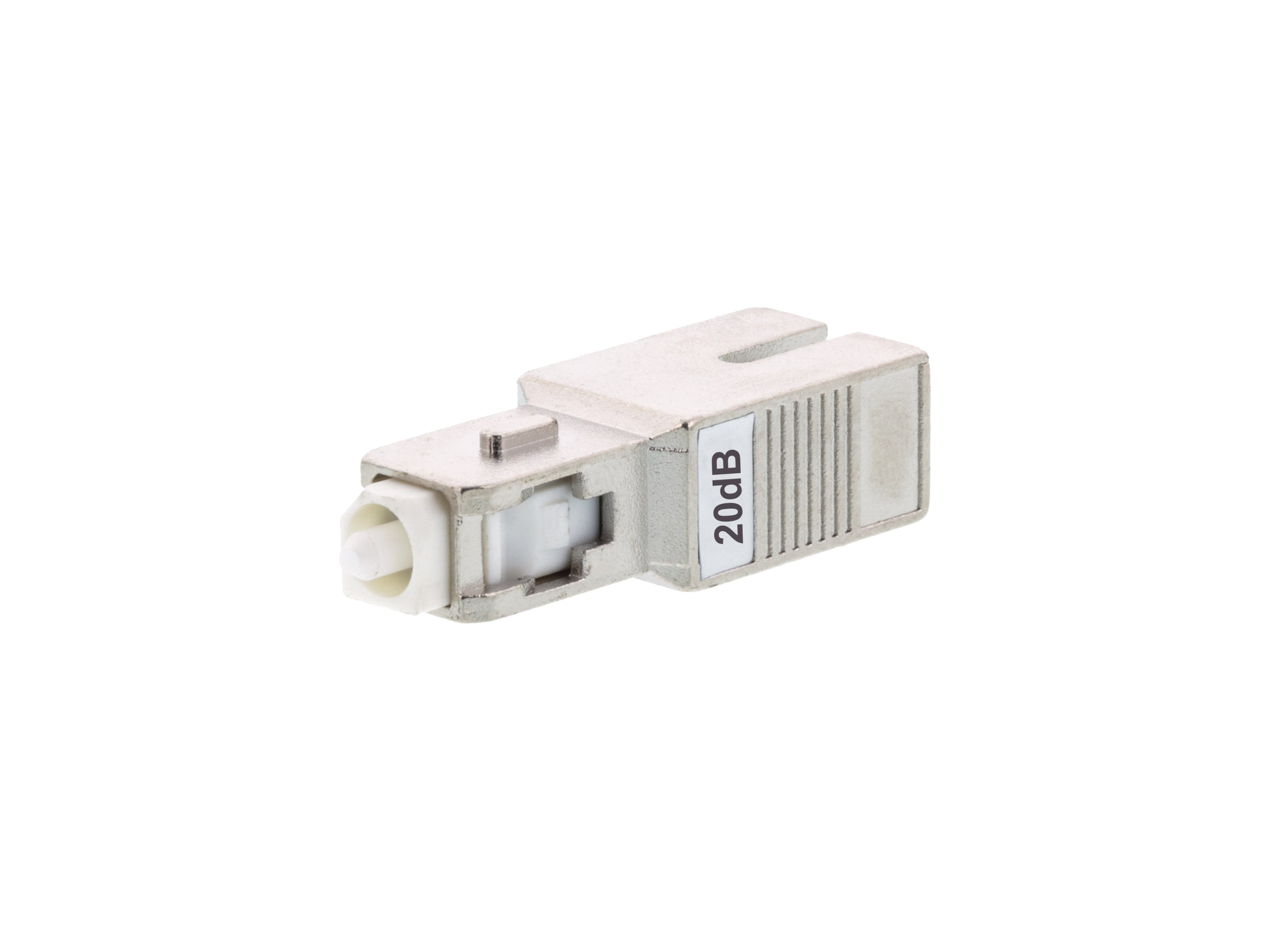

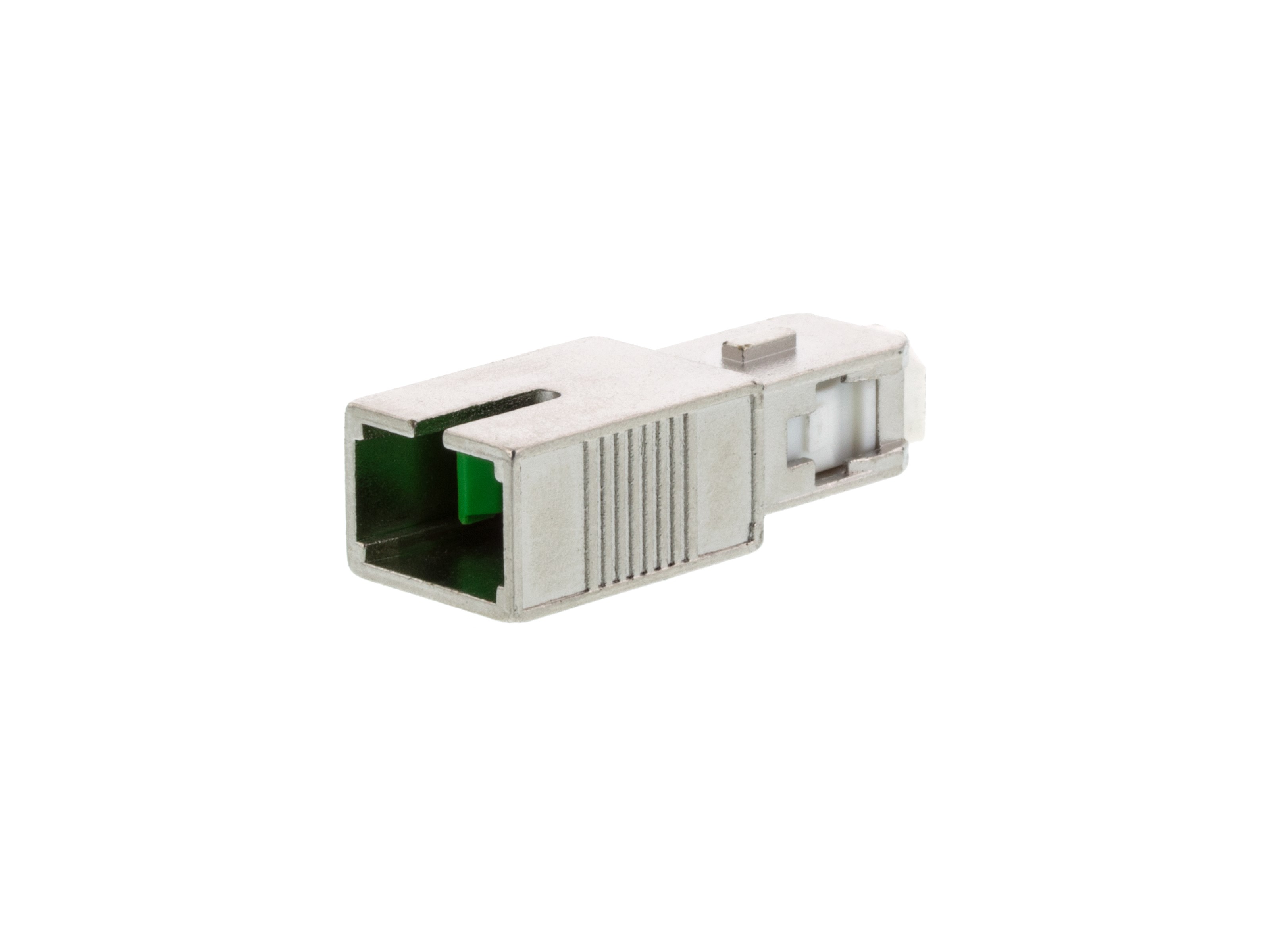

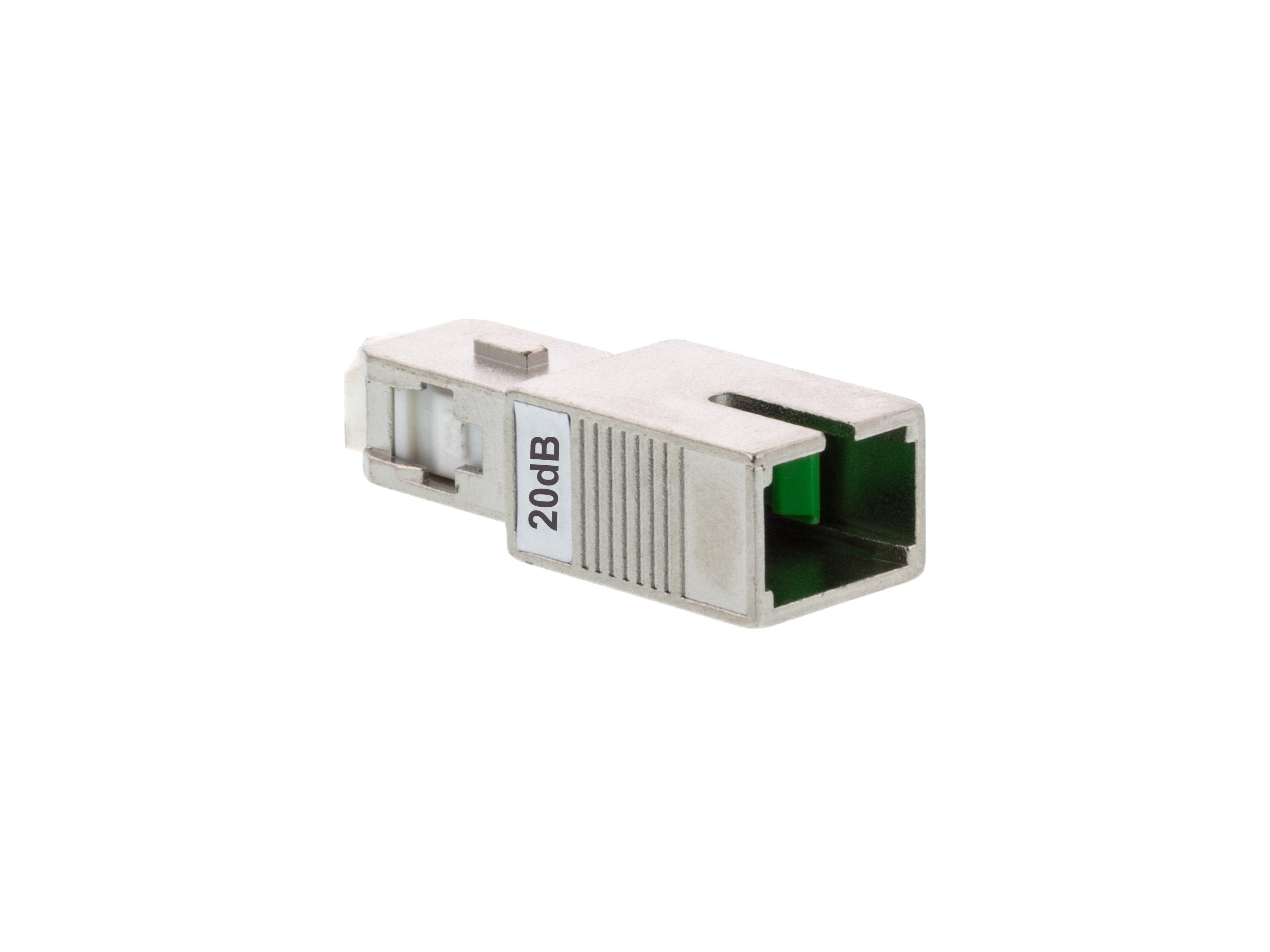

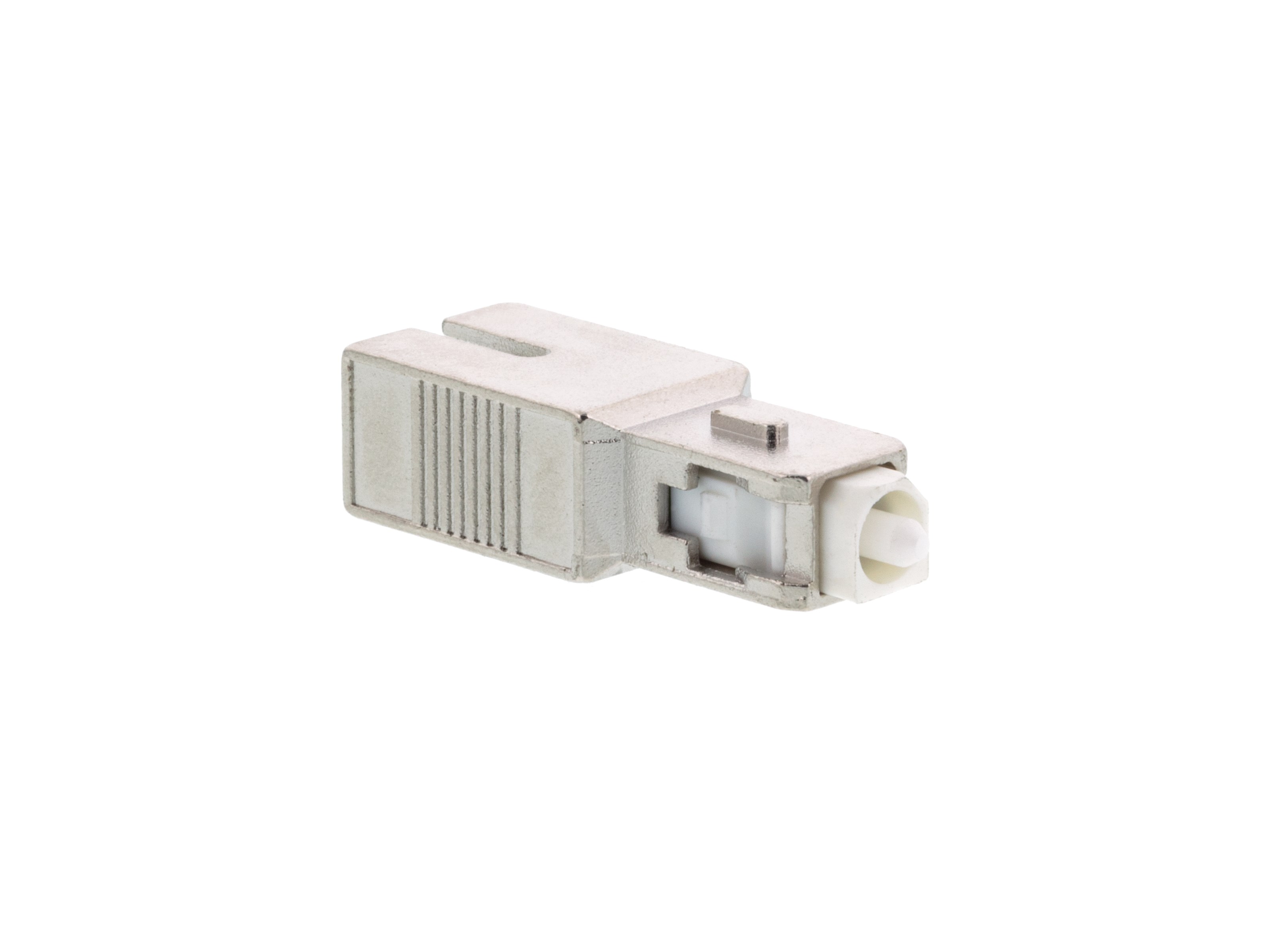

Fiber Optic Attenuator, Fixed - SC/APC 20dB

Be the first to review this product
Networx® 20 dB SC/APC attenuator safeguards receivers on very high-power optical links.
Polish Type:
Angled Physical Contact (APC) Ultra Physical Contact (UPC)
SKU: FA-ASCSM-20
$36.99
Where to Buy Available from authorized Networx resellers

Buy Now

ComputerCableStore.com

ComputerCableStore.com

www.computercablestore.com
Amazon

Amazon

www.amazon.com
Cables N More

Cables N More

www.cablesnmore.com
View All Authorized Sellers
This Fiber Optic Attenuator, Fixed - SC/APC 20dB is necessary to prevent over saturating an optical receiver when the optical power is too high. Using attenuators will ensure low bit error rates and prevent damage to receiving components. SC male-female, 20db

  • Fiber Connectors: SC male-female
  • Operating Wavelengths: 1310nm, 1550nm
  • Polish Type: Angled Physical Contact (APC)
  • Maximum Optical Input Power: 200nW
  • Return Loss: ≥65dB
  • Bellcore Compliant
  • Wavelength Independent

Products specifications
Attribute name Attribute value
Attenuation 20db
Color Silver
Connector A SC Male
Connector B SC Female
Fiber Type Singlemode
Polish Type Angled Physical Contact (APC)
Wavelength 1550nm
SKU FA-ASCSM-20
GTIN 845425008428
