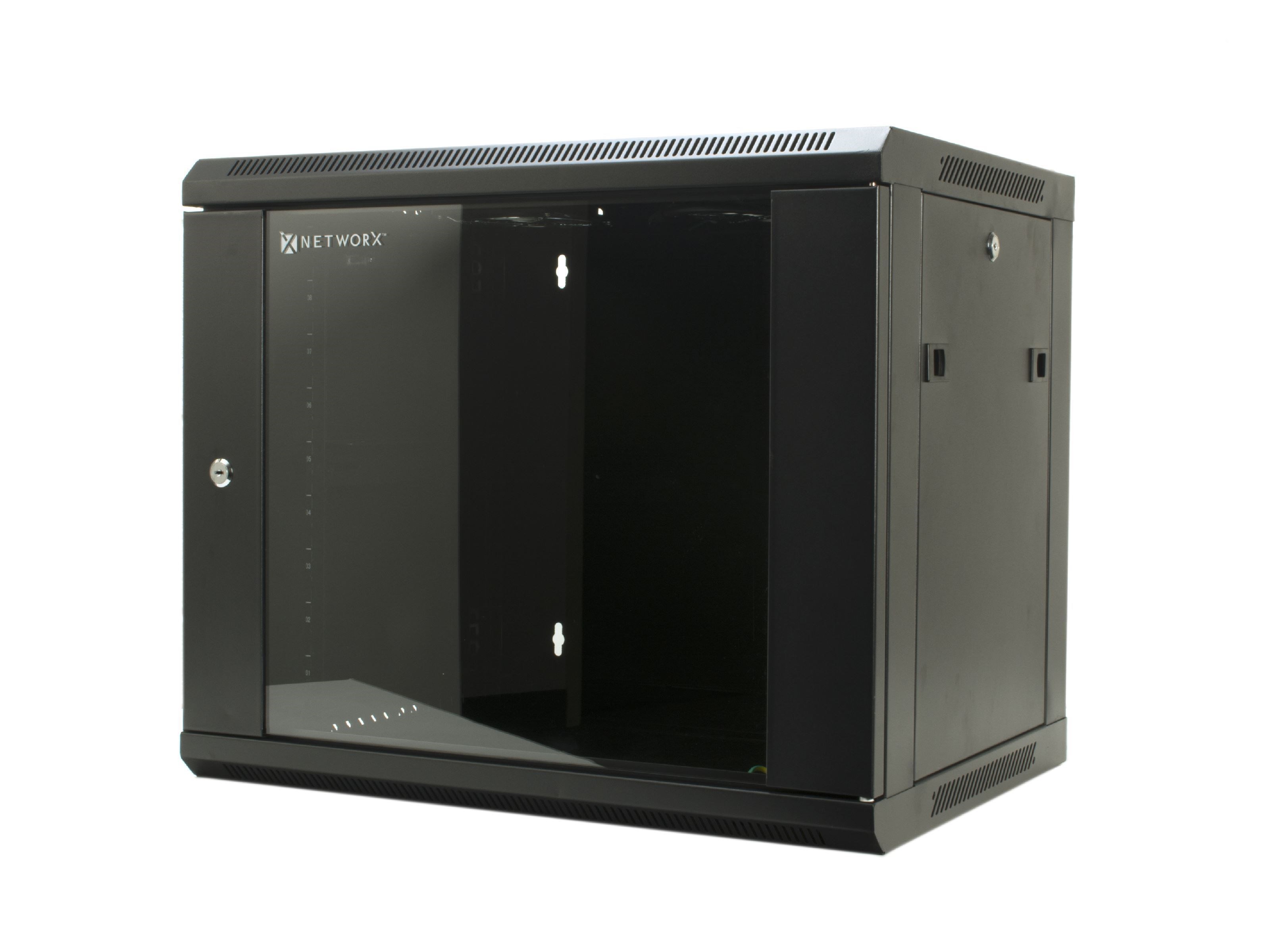

401 Series 18-Inch Deep Wall Mount Cabinets

These 401 Series wall mount cabinets provide an enclosed solution for organizing compatible network, telecom, and rack-mounted equipment while helping conserve floor space. Available in 6U, 9U, 12U, and 15U sizes with an 18-inch depth, they provide multiple capacity options for equipment rooms, offices, and structured cabling installations.

  • Available in 6U, 9U, 12U, and 15U rack sizes
  • 18-inch deep wall mount cabinet design
  • Designed for compatible rack-mounted network and telecom equipment
  • Enclosed construction helps protect and organize installed equipment
  • Multiple rack sizes make it easier to match cabinet capacity to the installation
  • Wall-mounted design helps preserve valuable floor space
  • Helps create a cleaner and more organized equipment setup
  • Ideal for network rooms, offices, telecom spaces, and structured cabling installations
Where to Buy Available from authorized Networx resellers
Available Models
WMC-S401-12U
12U Wall Mount Cabinet - 401 Series, 18 Inches Deep, Fully Assembled
A 12U fully assembled cabinet pairs mid-size capacity with dual-fan cooling.
$405.49
View Details
WMC-S401-15U
15U Wall Mount Cabinet - 401 Series, 18 Inches Deep, Fully Assembled
This 15U assembled wall cabinet supports growing networks with active dual-fan airflow.
$453.19
View Details
WMC-S401-6U
6U Wall Mount Cabinet - 401 Series, 18 Inches Deep, Fully Assembled
Fully assembled 6U cabinet delivers compact 18 in-deep storage with dual-fan cooling.
$310.09
View Details
WMC-S401-9U
9U Wall Mount Cabinet - 401 Series, 18 Inches Deep, Fully Assembled
Networx® 9U assembled cabinet adds shallow wall storage with stronger dual-fan airflow.
$357.79
View Details
Products specifications
Attribute name Attribute value

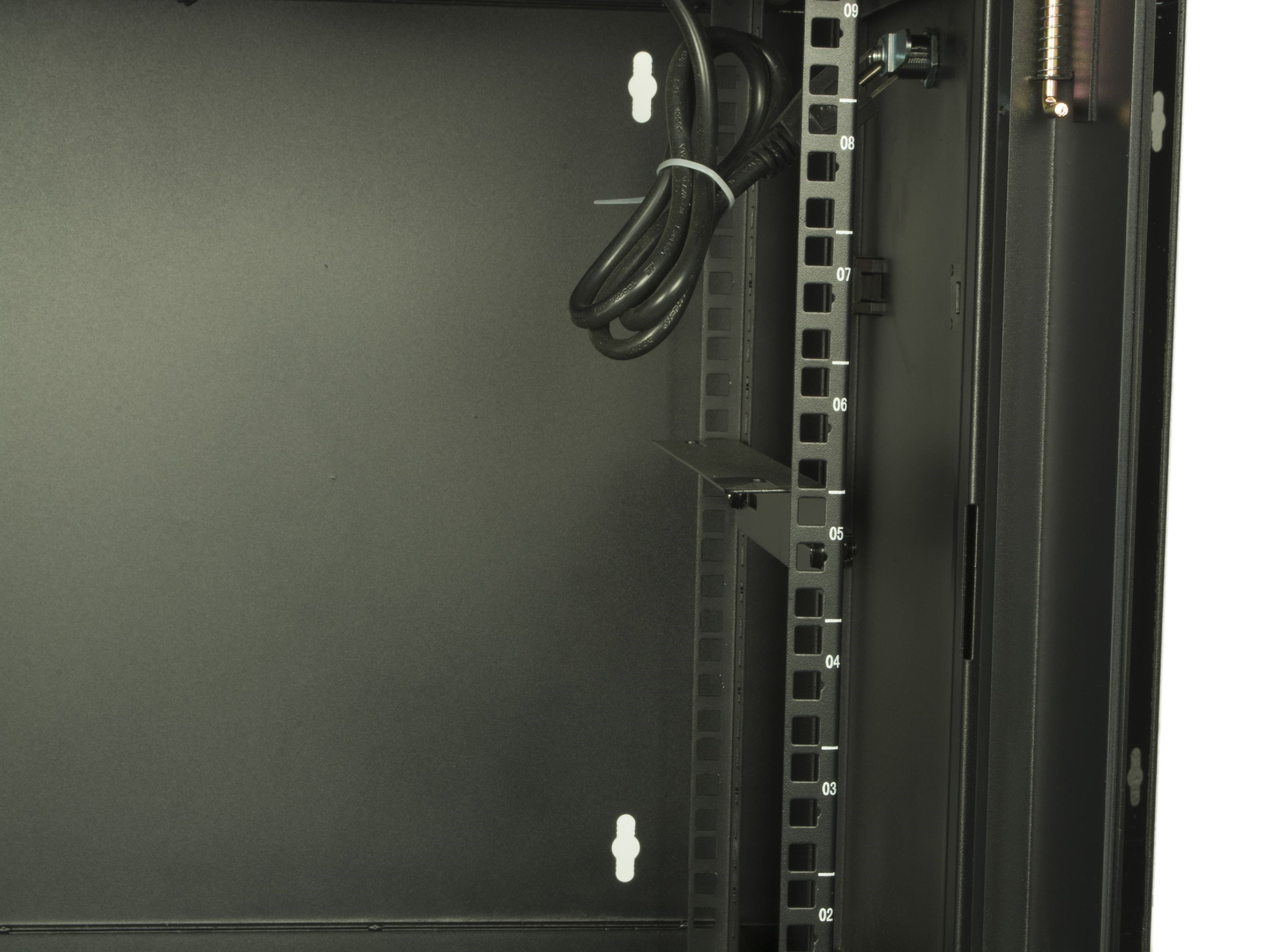

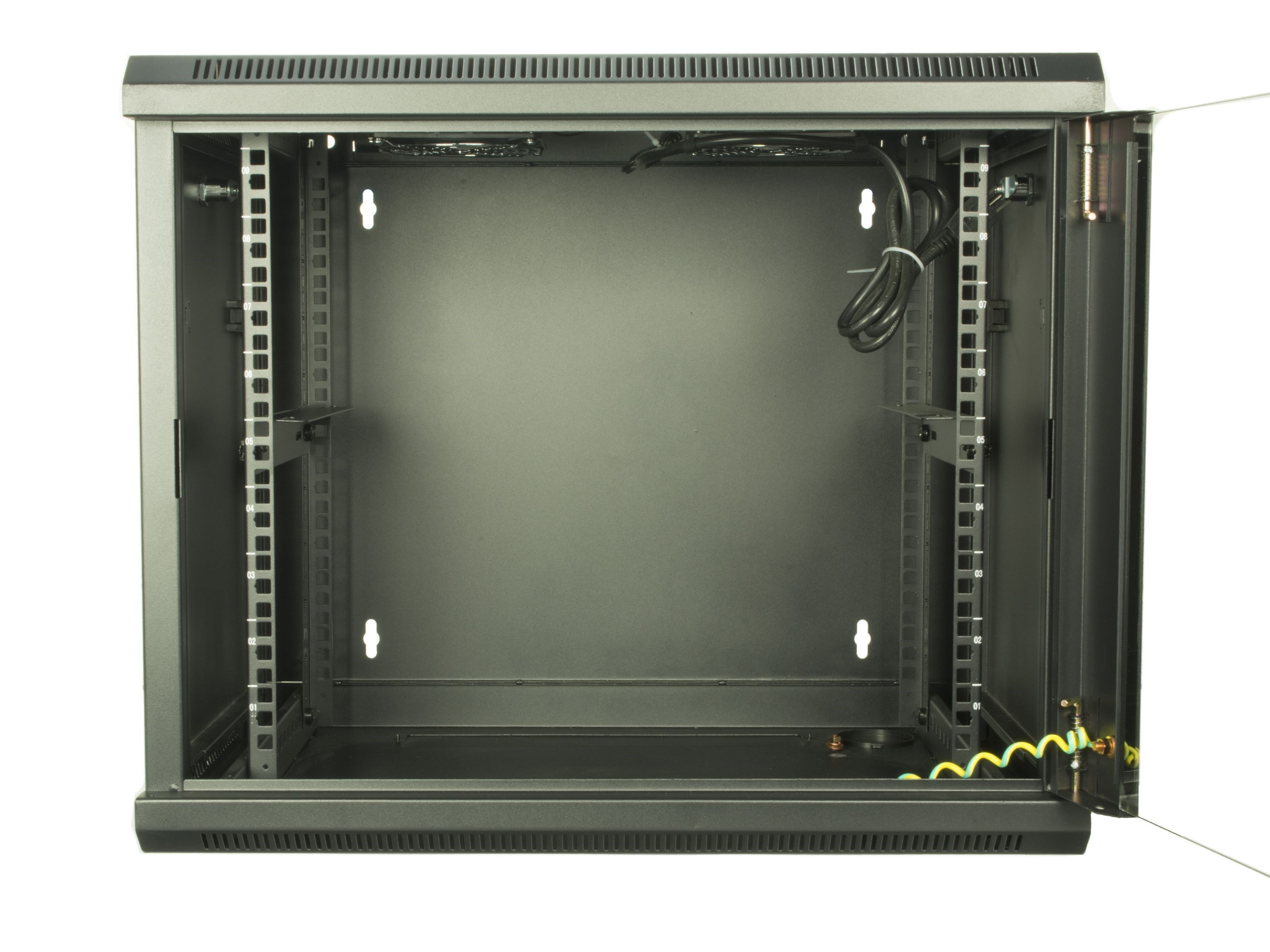

Cage Nut Rails Front & Rear
Color Black
Delivery Style Assembled

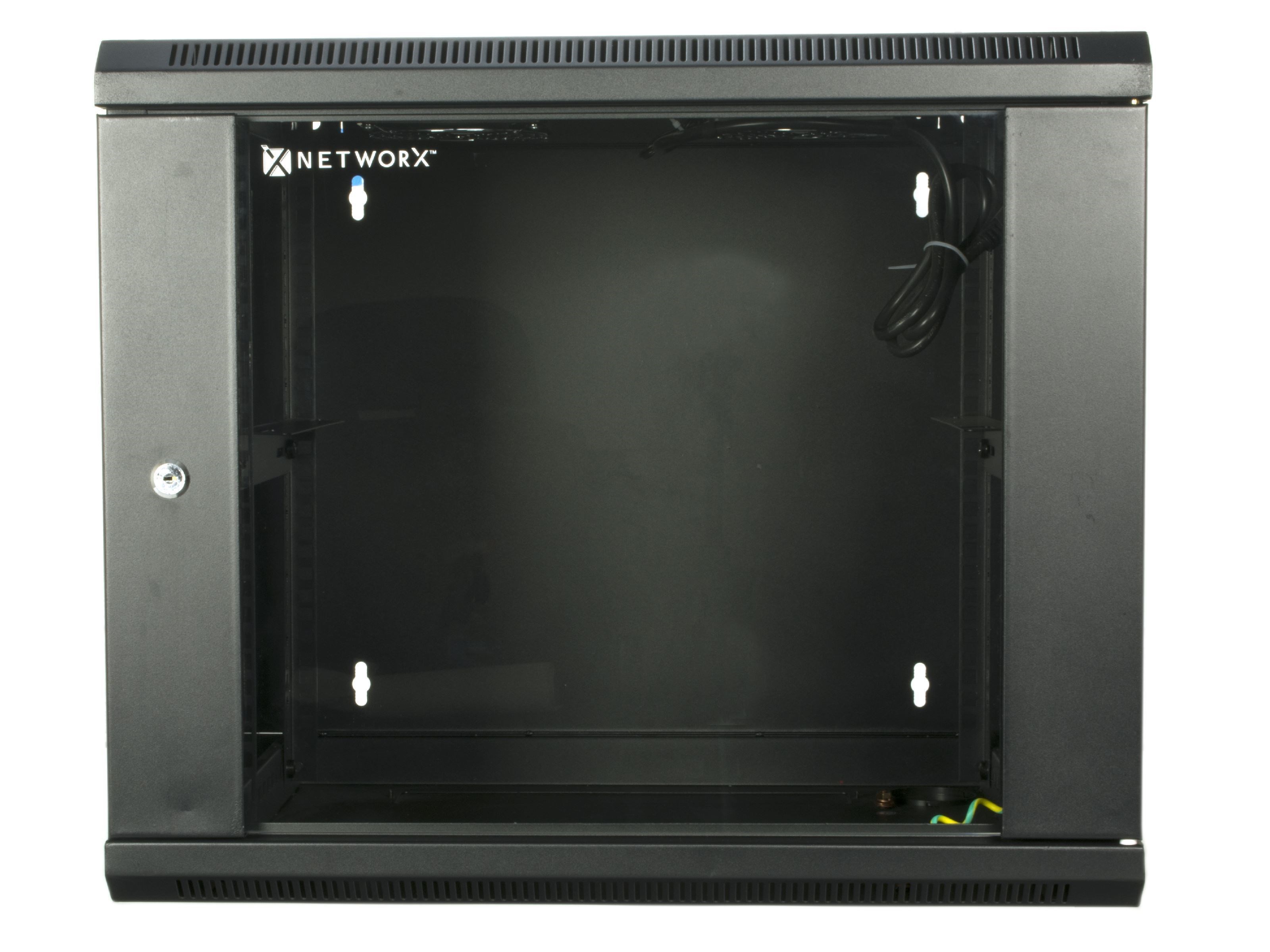

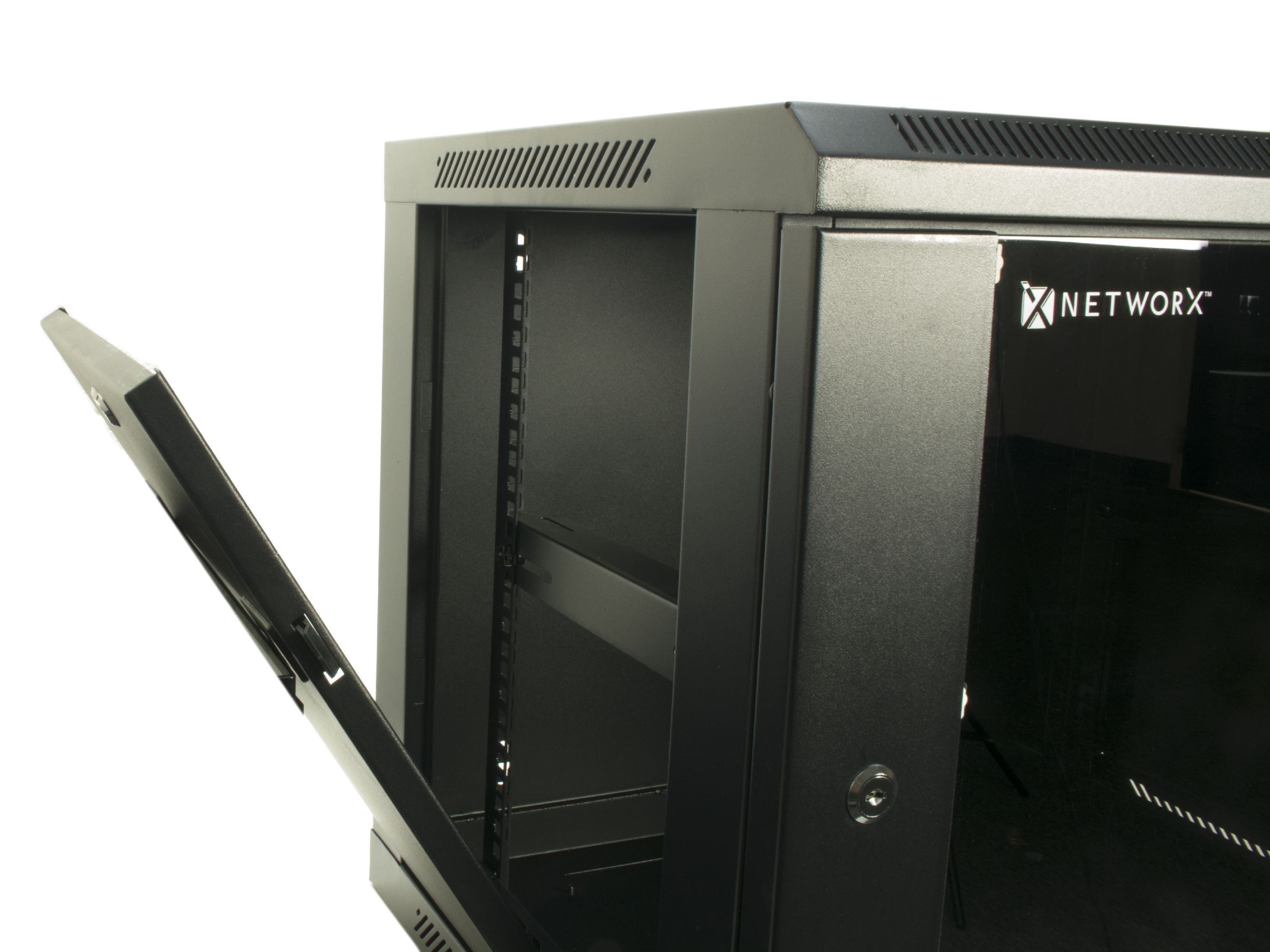

Door Style Tempered Glass
Hinged Swing Out Design No
Internal Mounting Format 19"

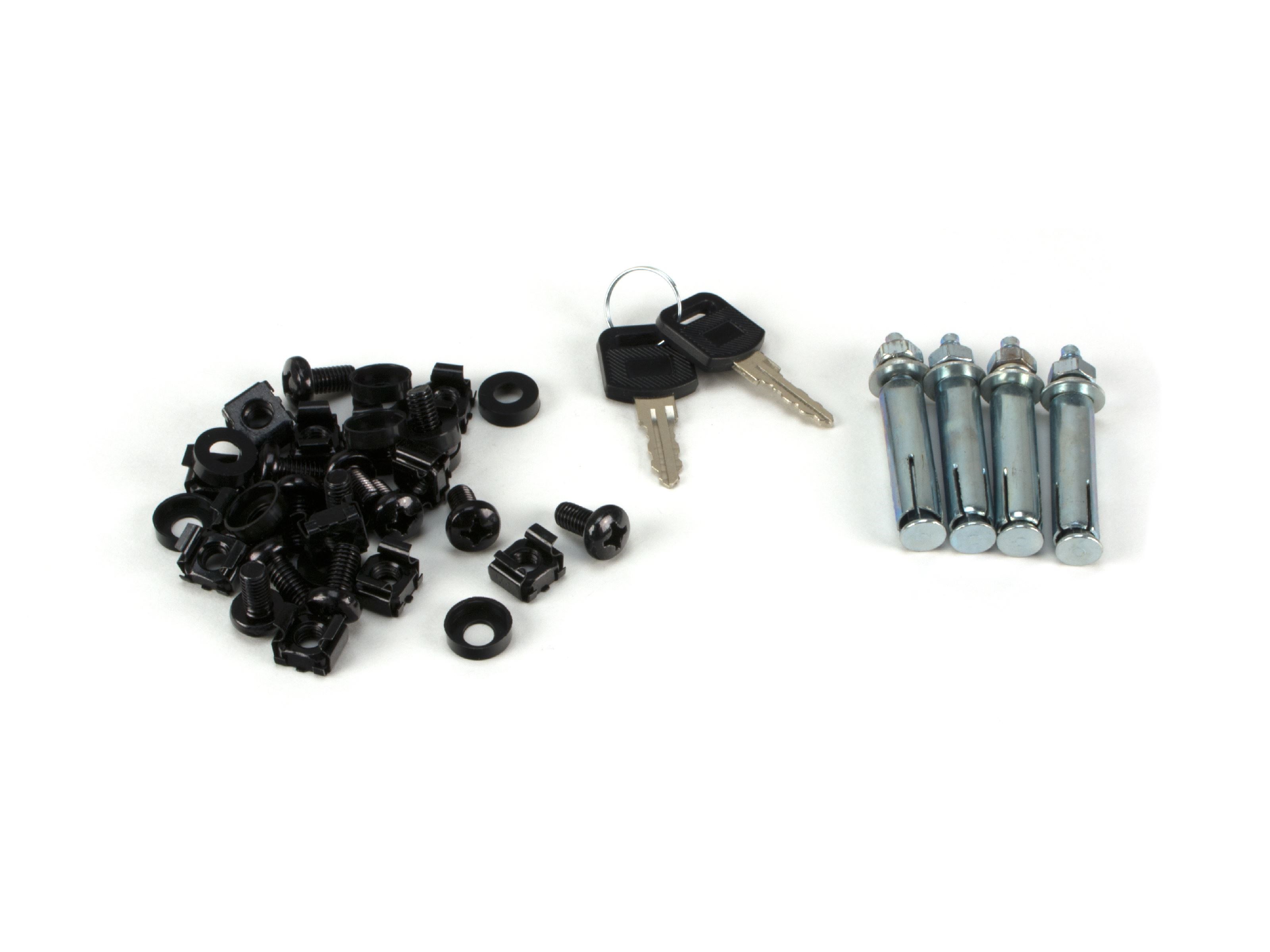

Key Lock Set (2 Keys per Set) 1 Set
Load Capacity 130 lbs

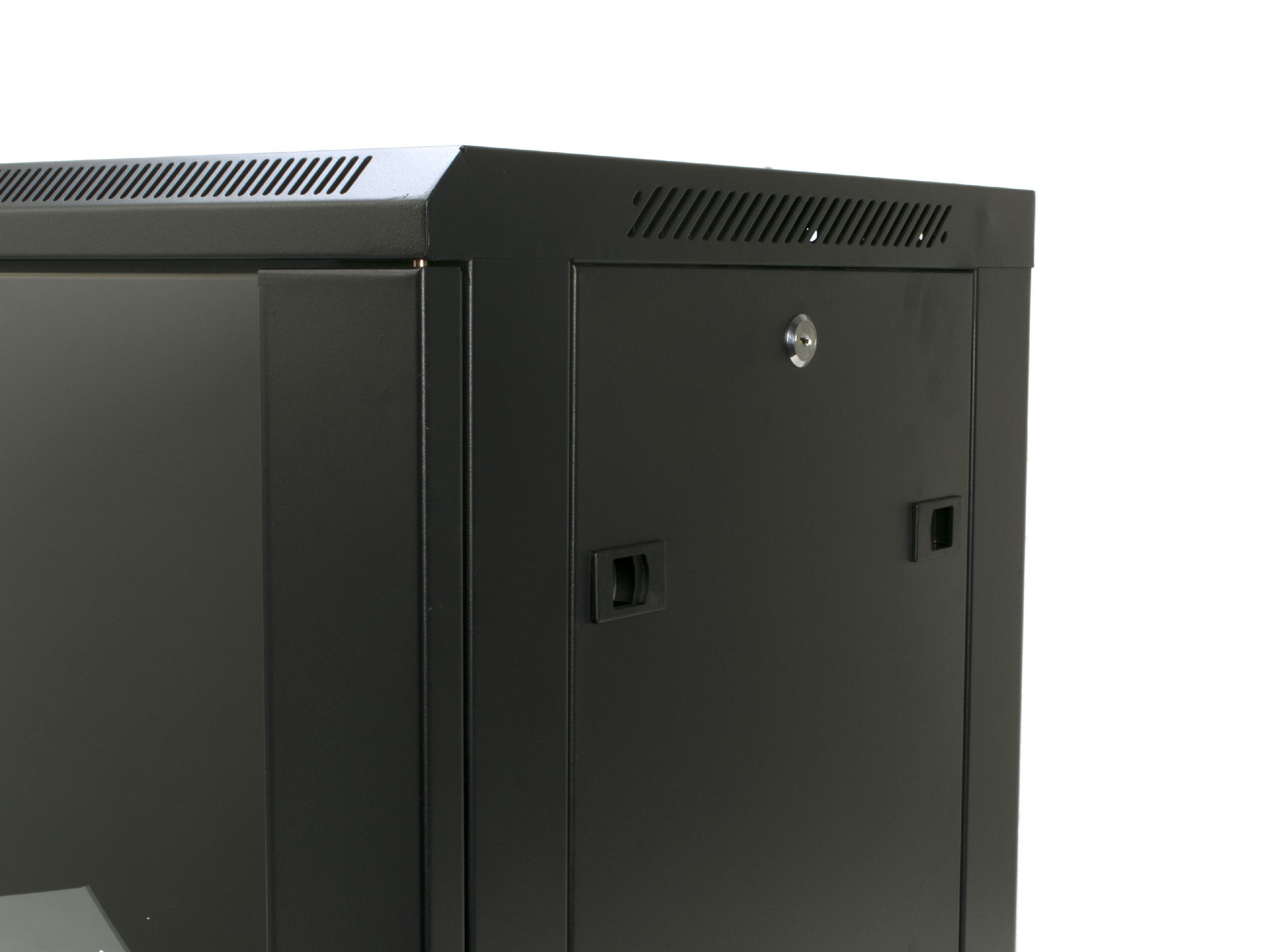

Locking Side Panels Yes

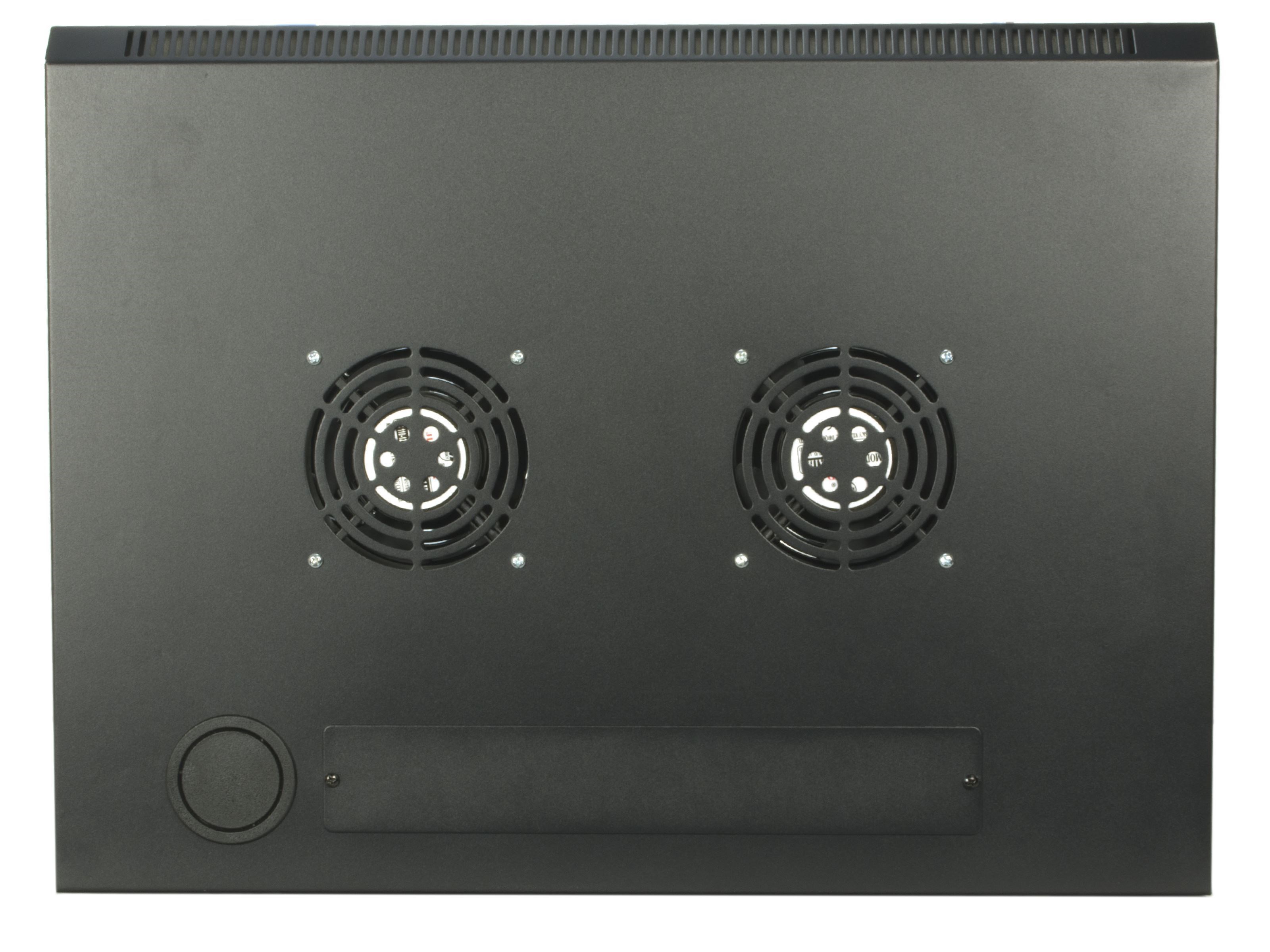

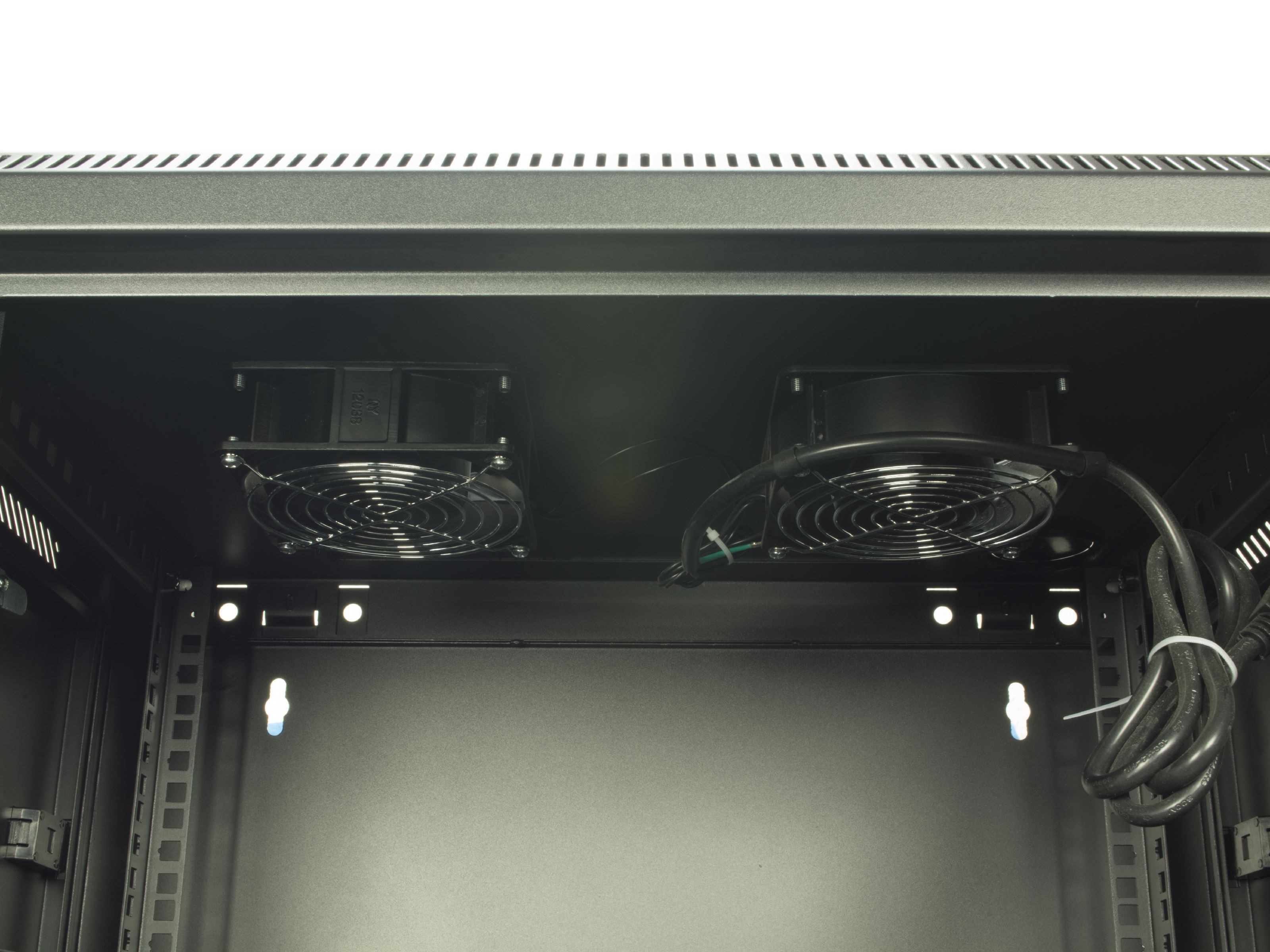

Preinstalled 80CFM 110V Fans 2
Rack Height (Assembled) 26.4 Inch
Rack Size Depth (Internal) 18" (14")
Rack Size Width (Internal) 24" (19")
Reinforced Door Frame Yes
Structure & Fabrication SPCC Cold-Rolled Steel Sheets

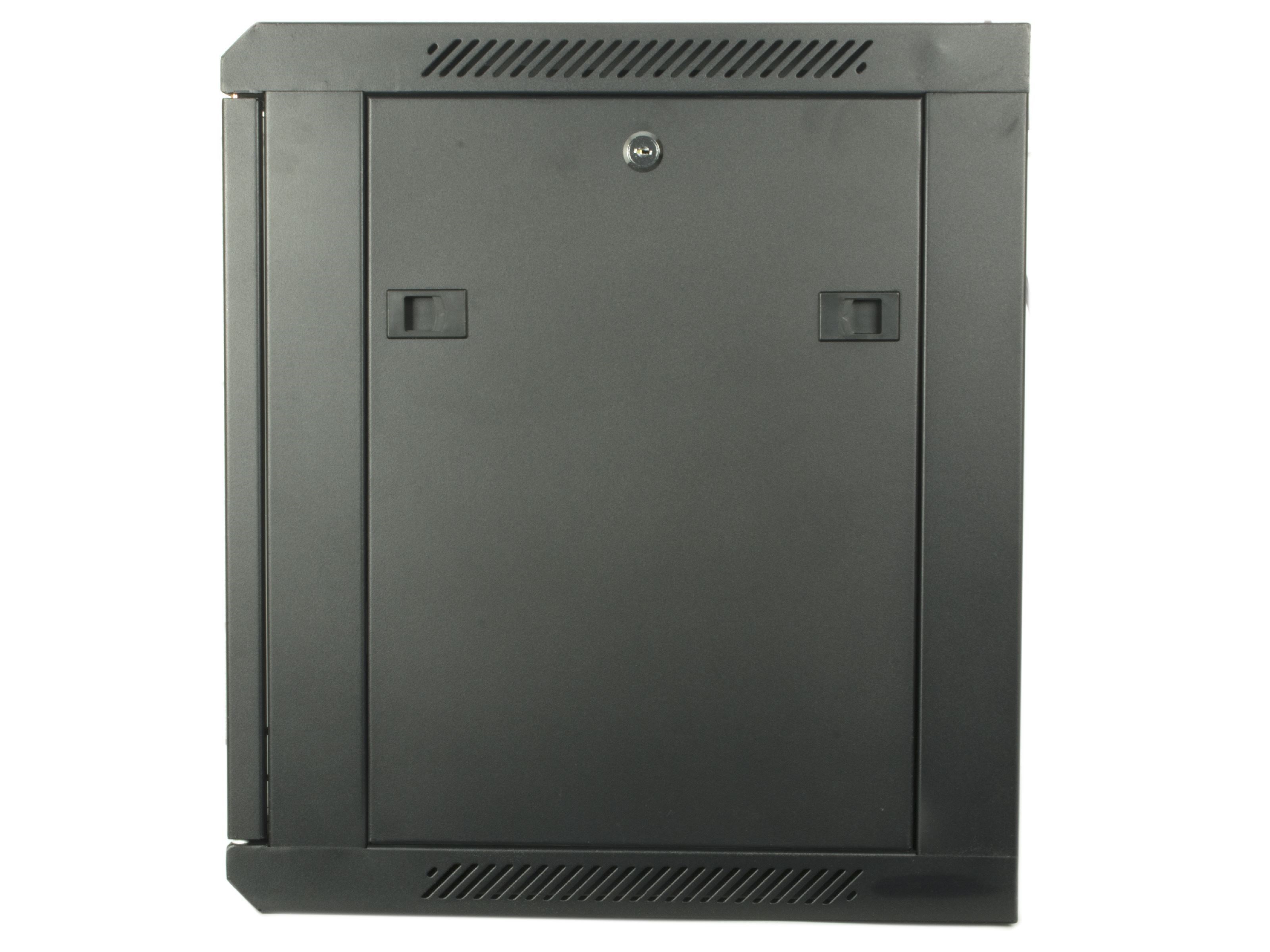

Vented Side Panels Removable
SKU WMC-S401
