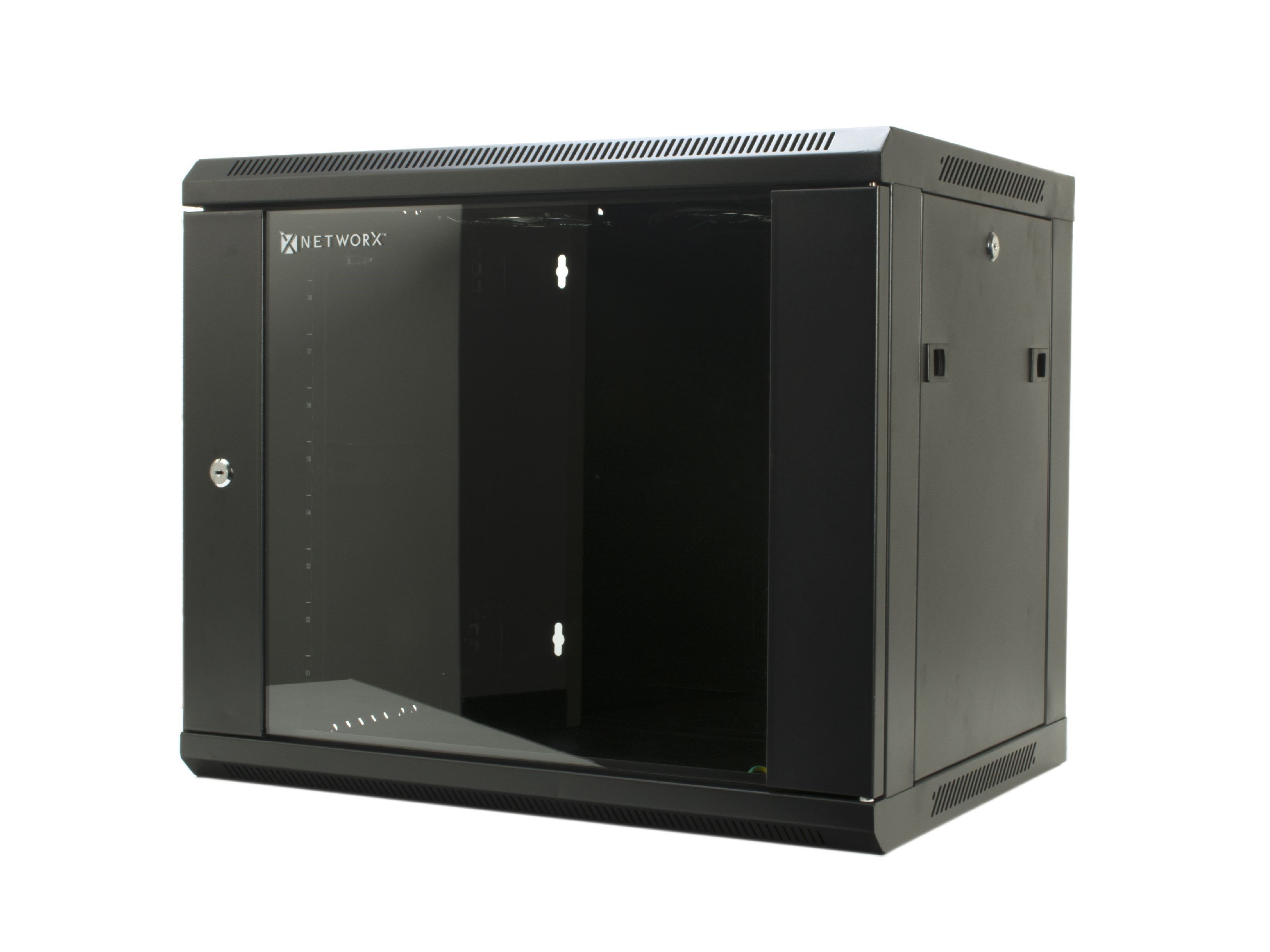

6U Wall Mount Cabinet - 401 Series, 18 Inches Deep, Fully Assembled

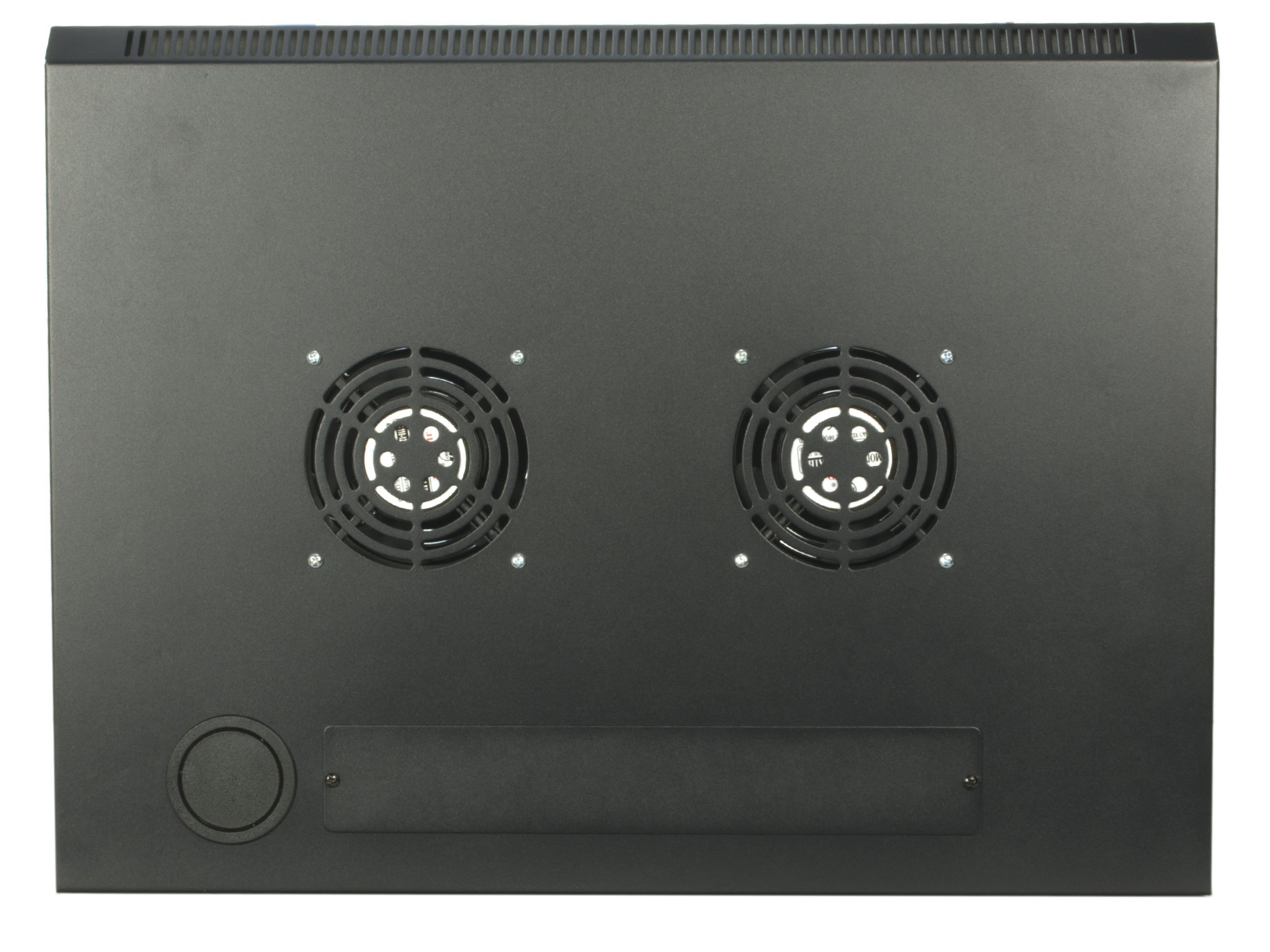

Fully assembled 6U cabinet delivers compact 18 in-deep storage with dual-fan cooling.
Rack Height (Assembled): 13.2 Inch $310.09
SKU: WMC-S401-6U
$310.09
Where to Buy Available from authorized Networx resellers

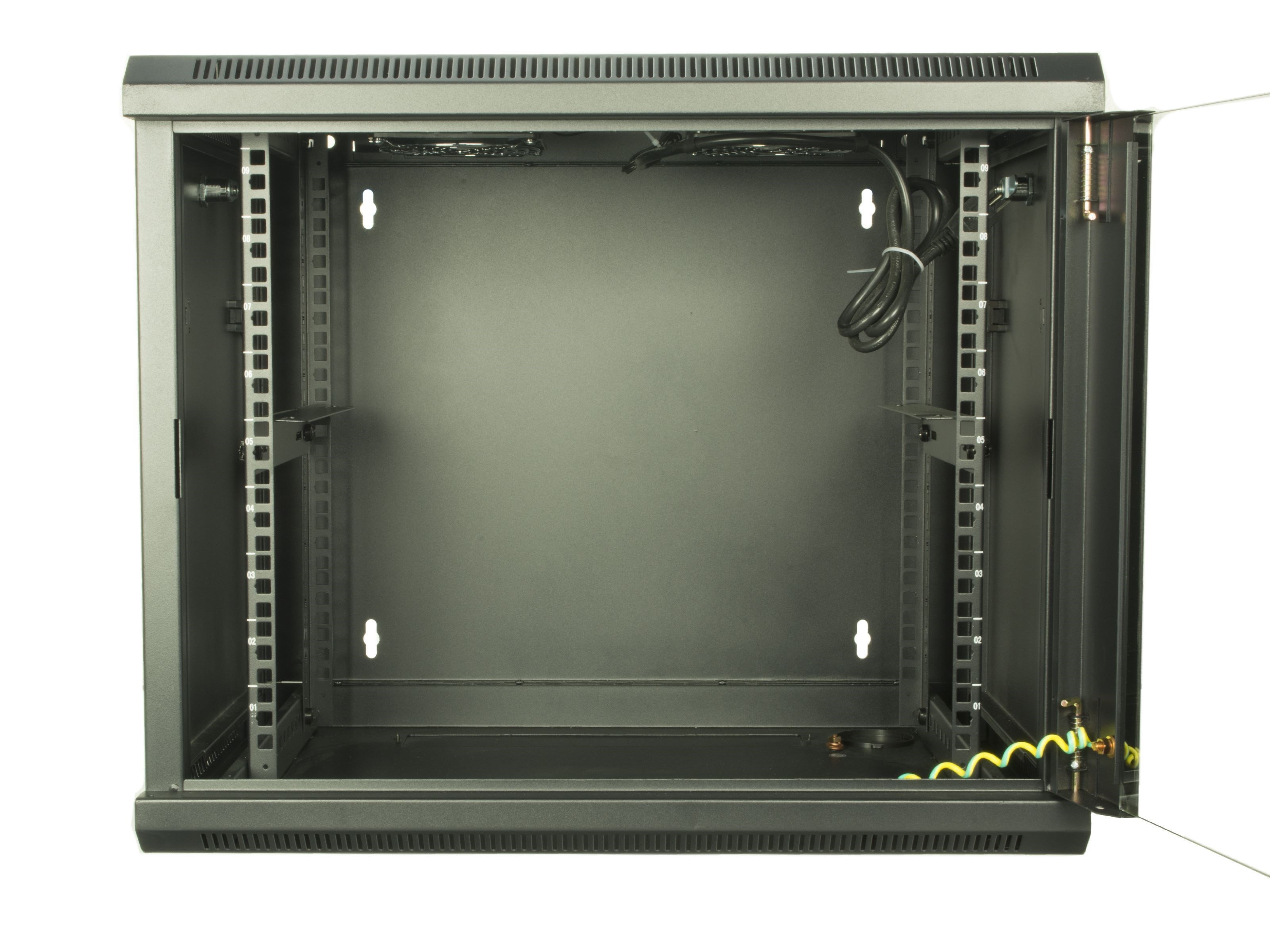

Get organized with the 6U 401 Series of Wall Mount Cabinets from Networx®. This cabinet comes equipped with some of the most requested features. Starting with the basics, this Wall Mount Cabinet is constructed with high quality SPCC Cold-Rolled Steel Panels. All Networx® Wall Mount Cabinets come with removable side panels, which include vents to keep equipment cool, to allow for quick access to sensitive networking equipment. All front panels swing out for easy access to loaded network equipment and include a window of 5mm tempered glass. Adjustable rails allow for full customization to allow a variety of networking equipment to fit securely. The rails are punched to allow for the installation of M6 Cage Nuts. Both Side Panels and Front Door are lockable with the included set of keys. Top/Bottom/Rear knockouts for cable entry and exit. All racks are designed to house 19" rack mountable equipment.

  • **FANS NOT INCLUDED**
  • 6U Rack Mount Units
  • Designed for equipment with a 19” mounting profile
  • Vented Top/Sides/Front Panels for adequate airflow

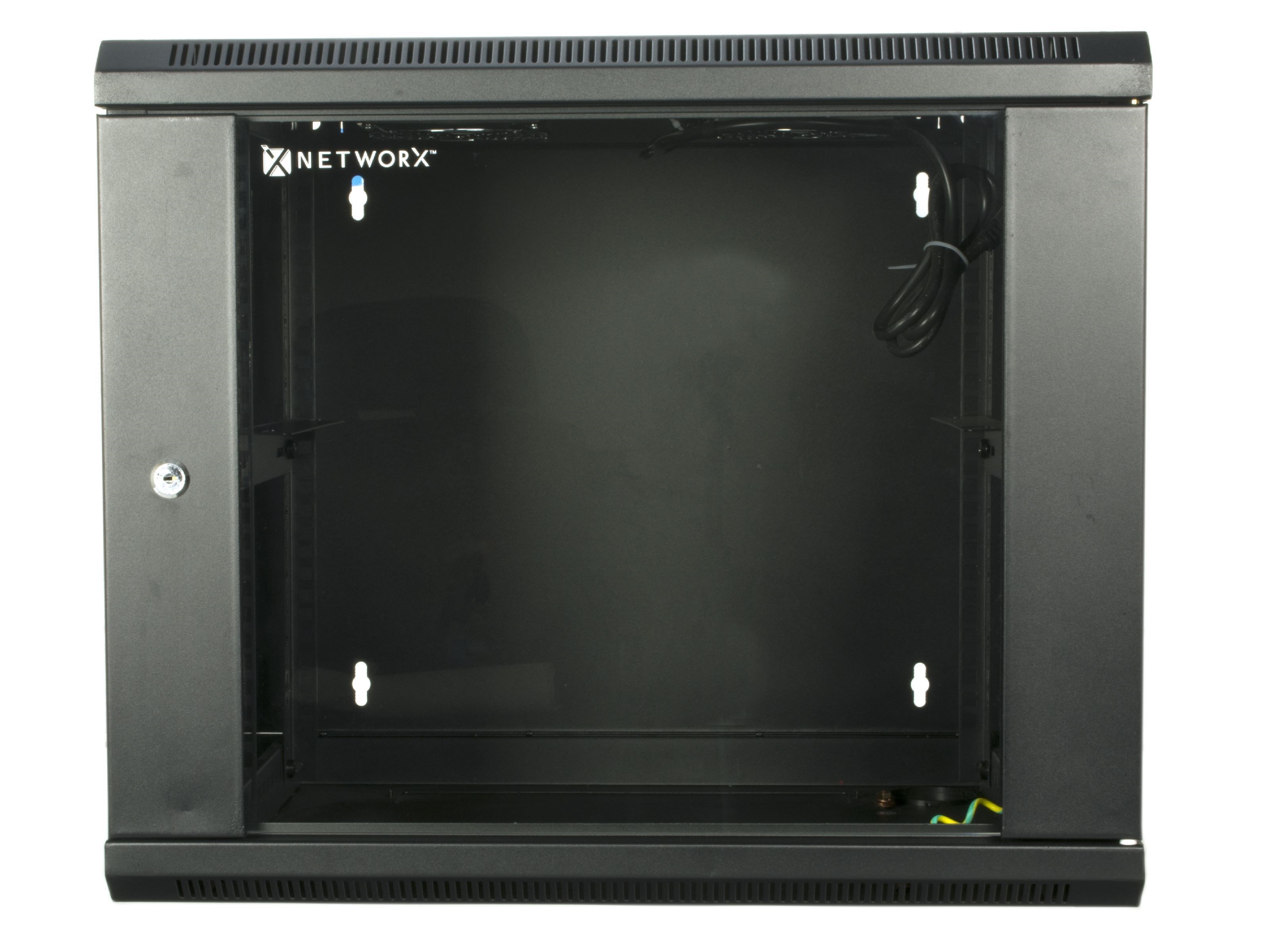

  • Reversible front door with tempered glass window

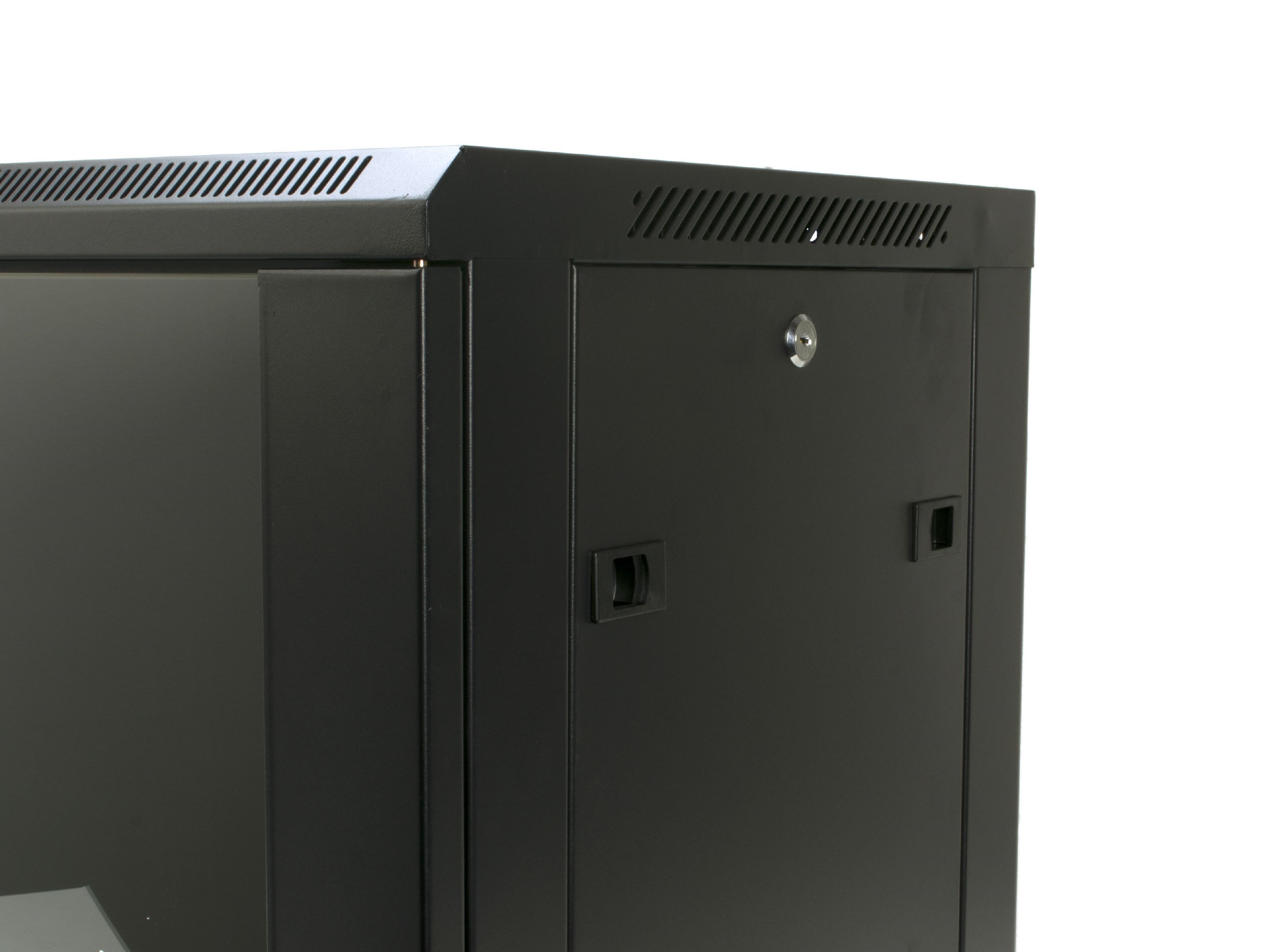

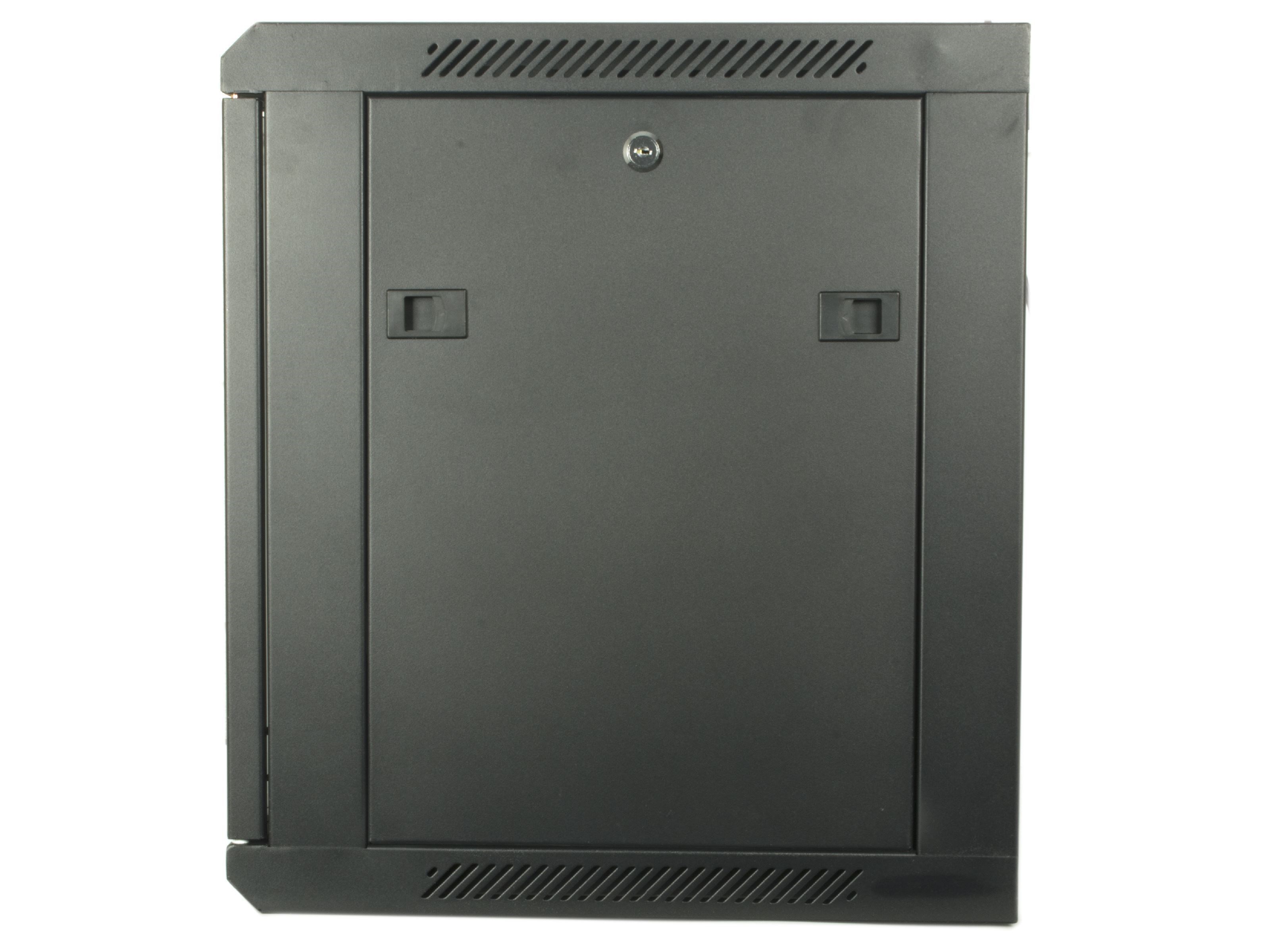

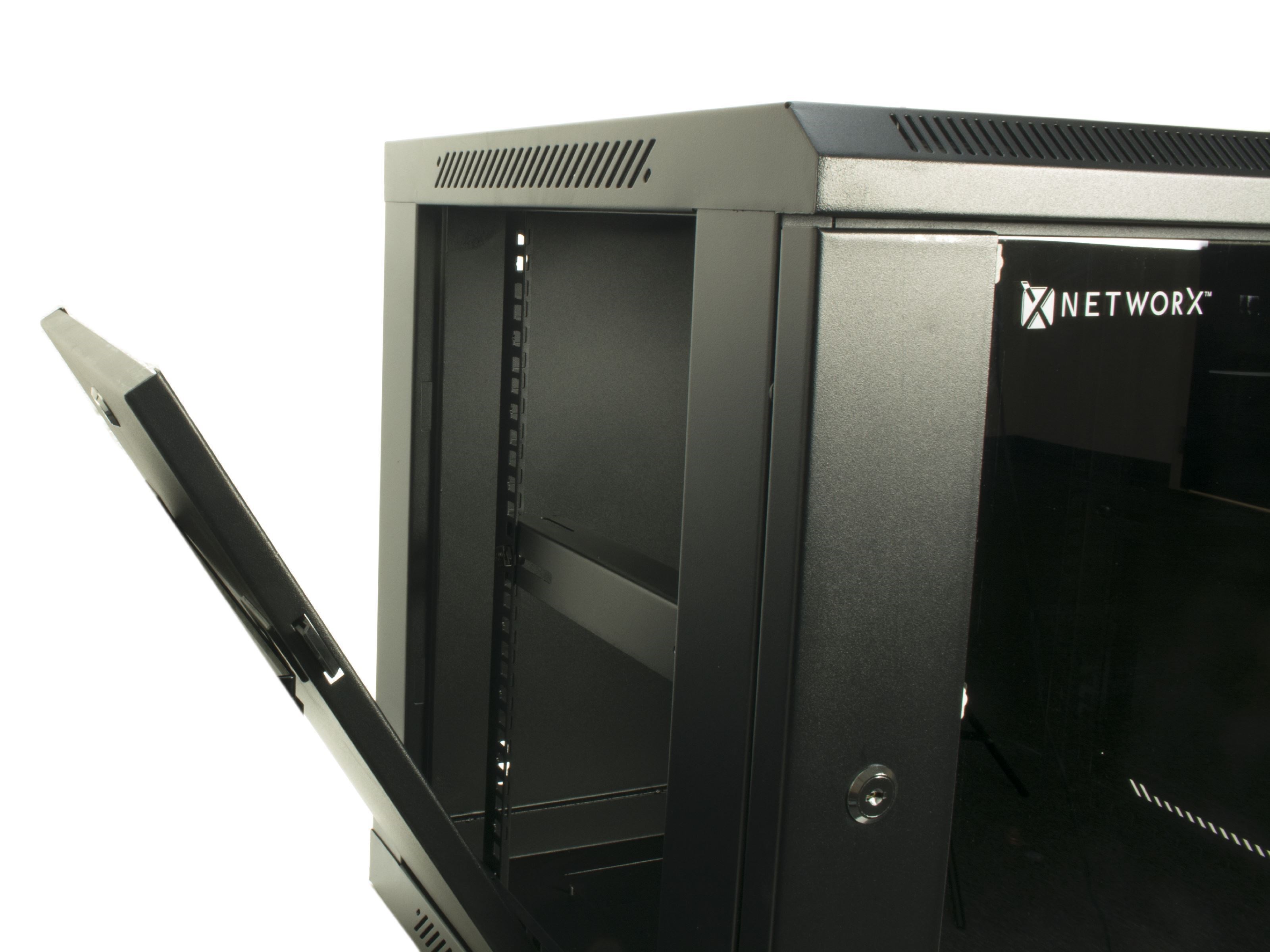

  • Removable side panels for easy access to equipment
  • Front and Side Panels are lockable with included set of keys

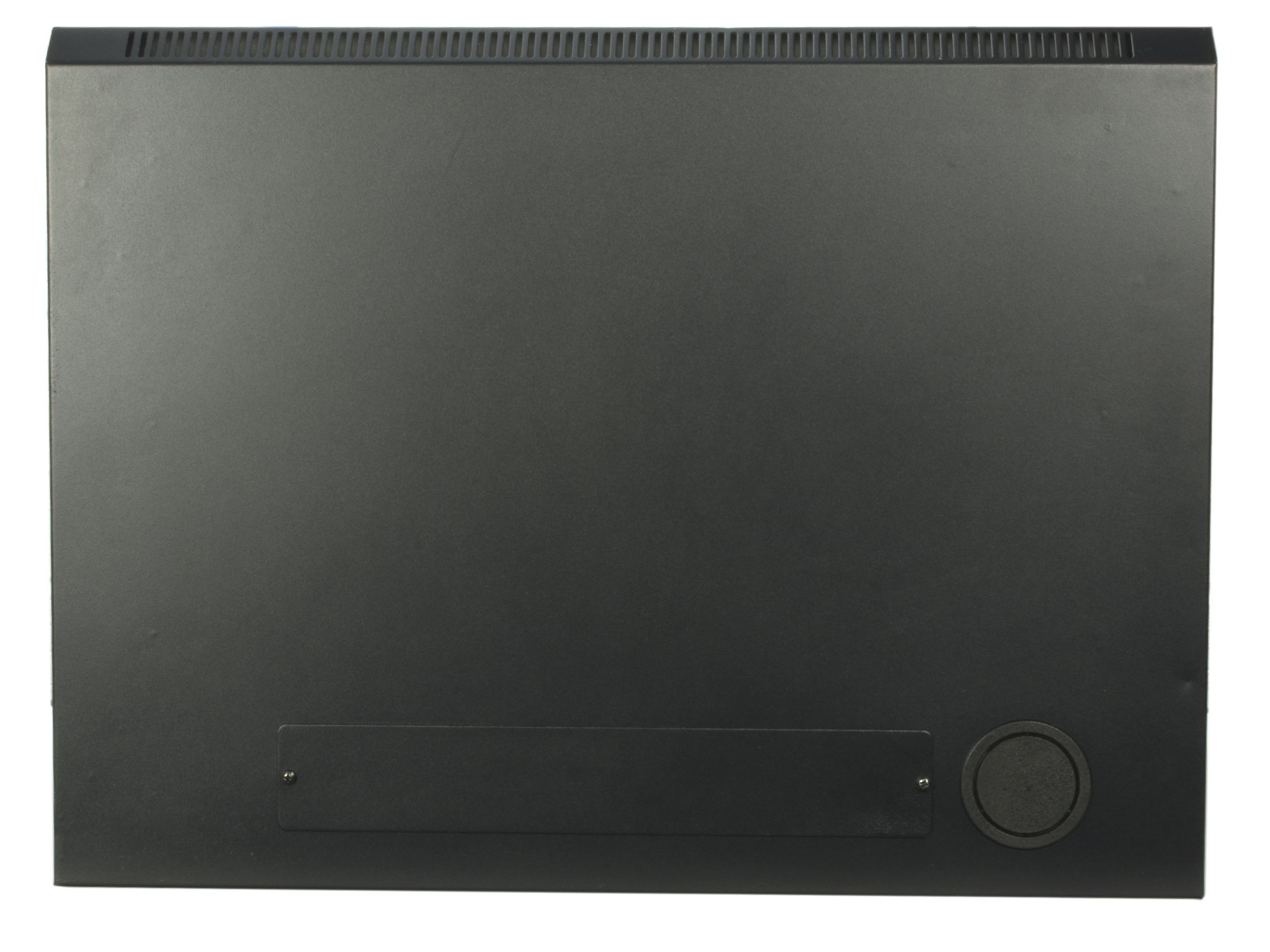

  • Top/Bottom/Real Knockouts for easy cable entry and exit
  • Supports up to 130lbs when secured properly
  • Fully Assembled
Products specifications
Attribute name Attribute value

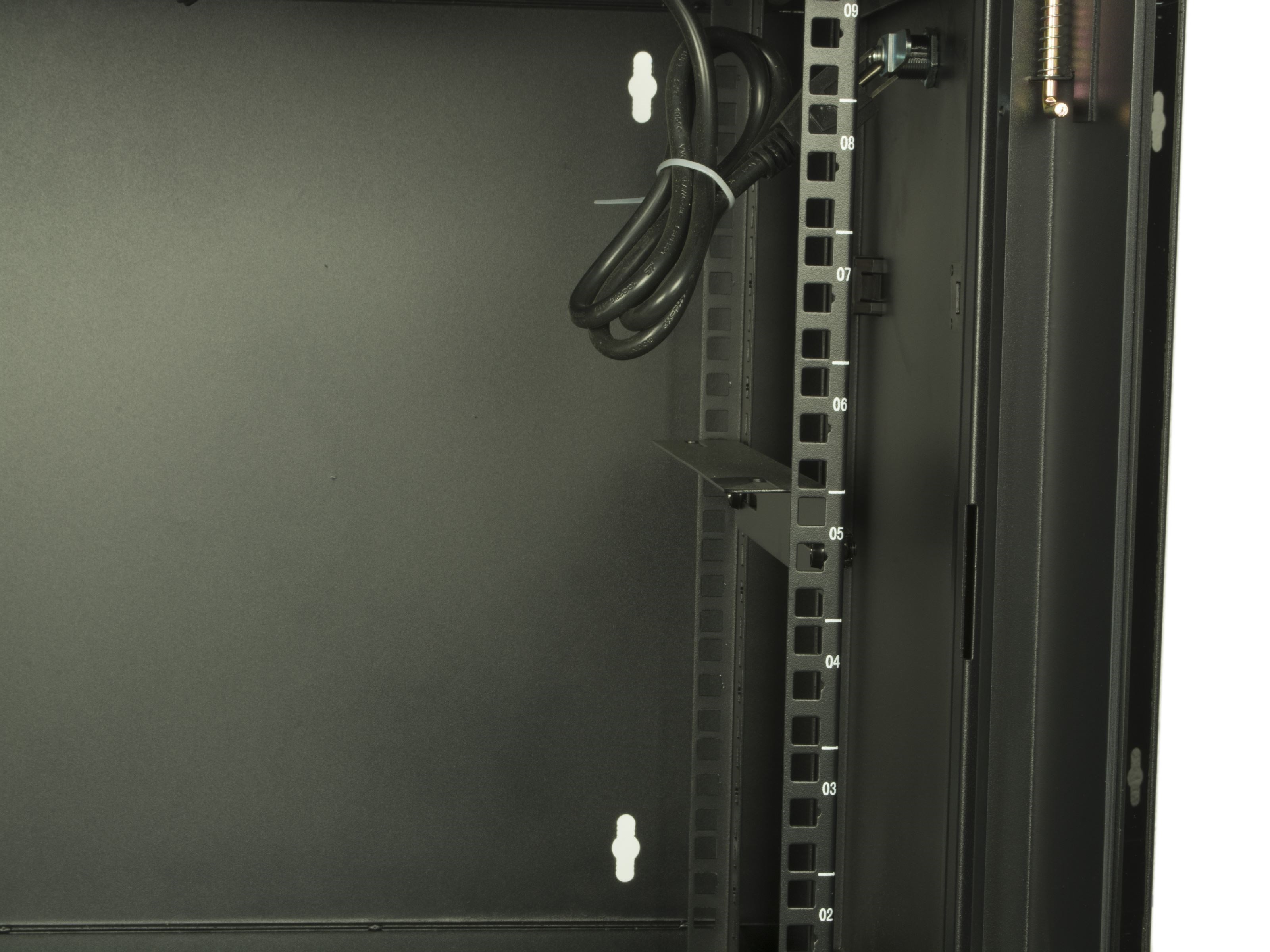

Cage Nut Rails Front & Rear
Color Black
Delivery Style Assembled
Door Style Tempered Glass
Hinged Swing Out Design No
Internal Mounting Format 19"

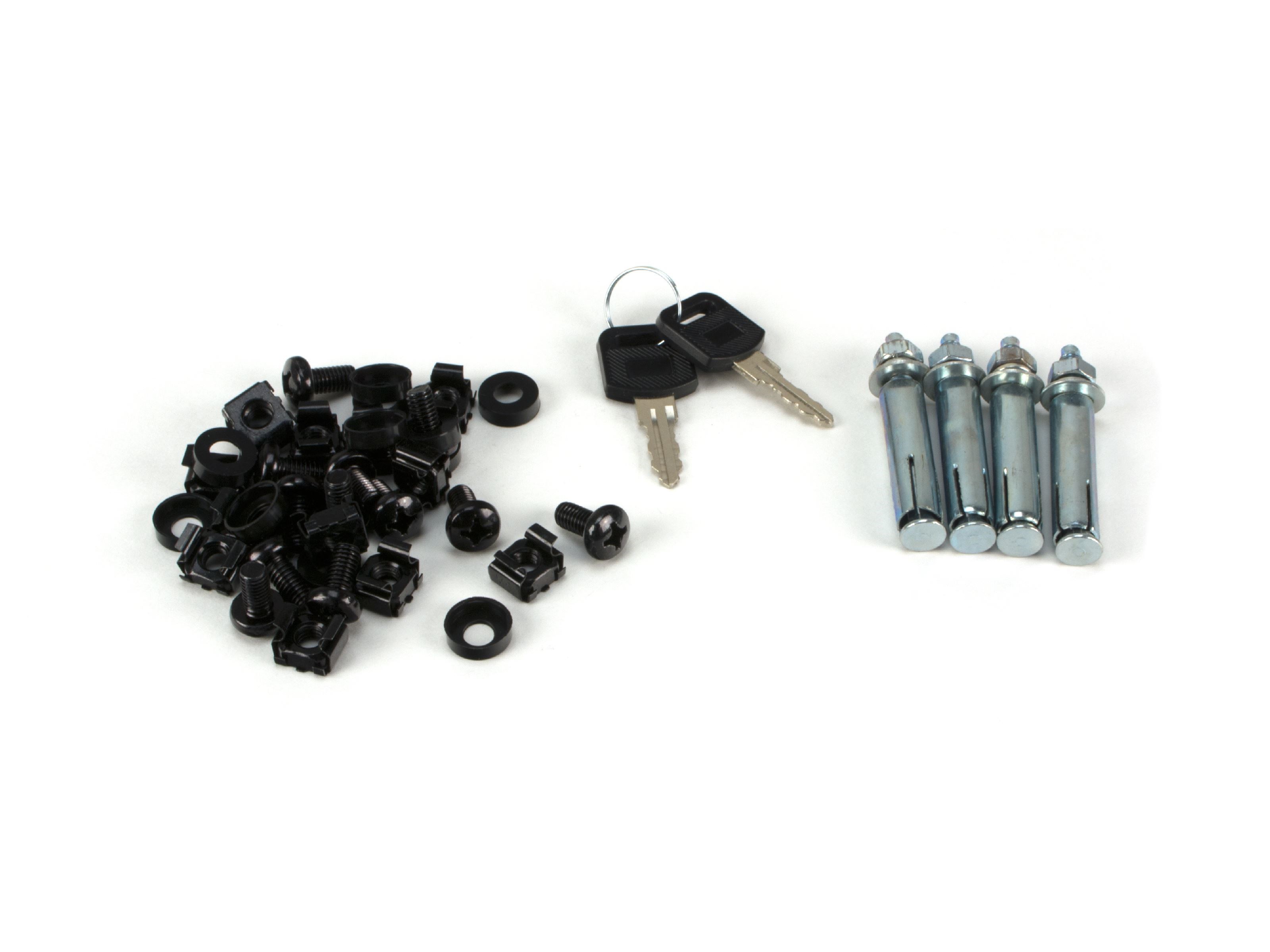

Key Lock Set (2 Keys per Set) 1 Set
Load Capacity 130 lbs
Locking Side Panels Yes
Rack Height (Assembled) 13.2 Inch
Rack Size Depth (Internal) 18" (14")
Rack Size Width (Internal) 24" (19")
Reinforced Door Frame Yes
RMU 6U
Structure & Fabrication SPCC Cold-Rolled Steel Sheets
Vented Side Panels Removable
SKU WMC-S401-6U
GTIN 00845425023230
