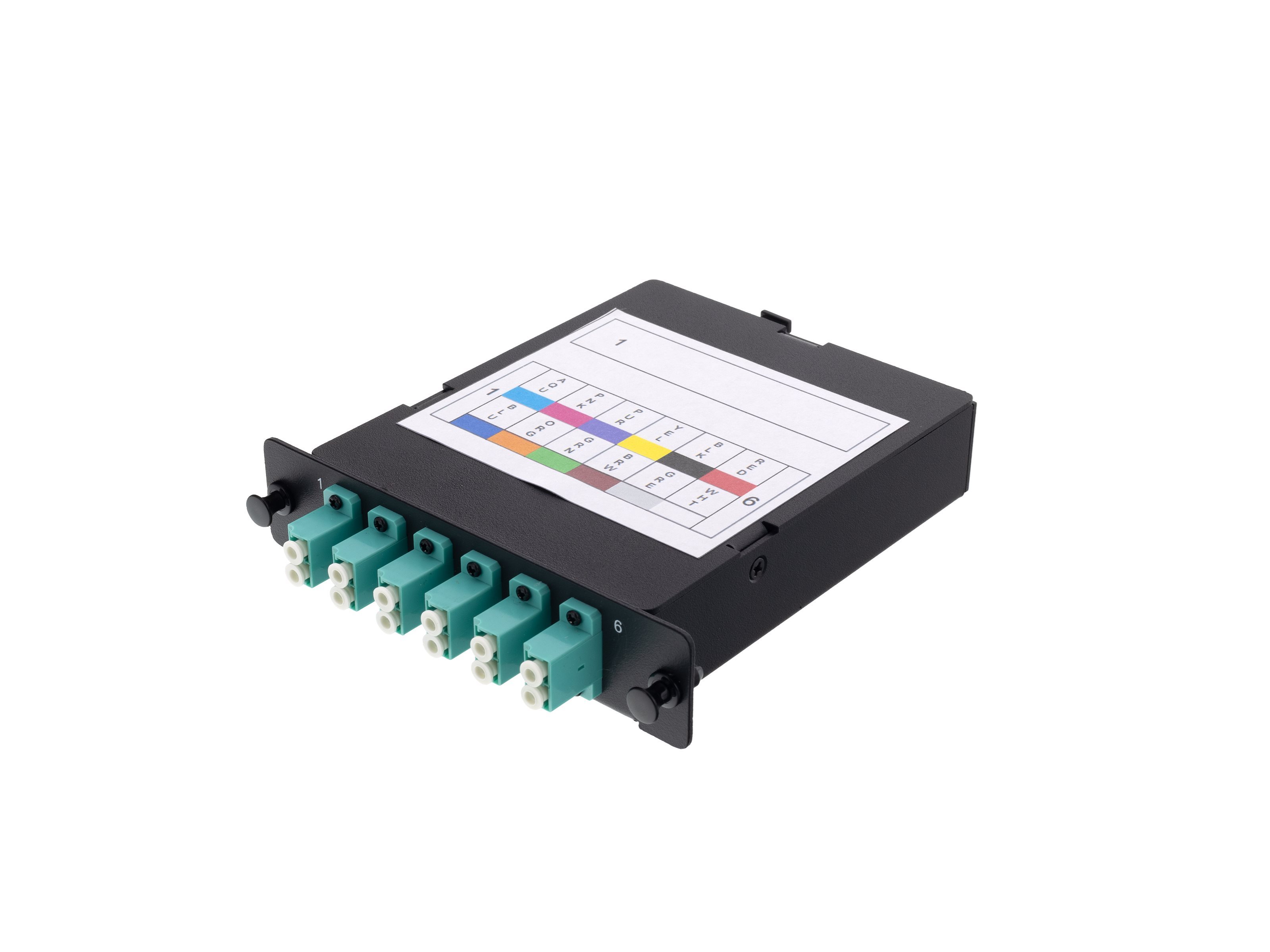

OM4 12-Port MTP®–LC Duplex Cassette, Type B Polarity

Networx® OM4 MTP® to LC Duplex Cassette – 12-Port, Type B Polarity High-Density Fiber Module | OM4 Multimode | Plug-and-Play | Type B Polarity

Elevate your fiber infrastructure with the Networx® OM4 Multimode MTP® to LC Duplex Cassette, designed with Type B polarity for seamless integration into high-speed parallel optic systems. This modular fiber cassette features a 12-fiber MTP® female connector on the rear and six LC duplex ports (12 LC total) on the front, supporting clean and organized breakout connections for modern data center and enterprise networks.

Engineered to meet the demands of 10G, 40G, and 100G Ethernet environments, this cassette is ideal for plug-and-play deployment in high-density rack systems, with factory-terminated fiber paths and precision polarity mapping that eliminates the guesswork.

Product Features

• Type B Polarity: MTP® key-up to key-up configuration internally reverses fiber positions (1→12, 2→11...), ensuring proper transmit/receive alignment in parallel optic links

• Fiber Type: OM4 Laser-Optimized Multimode (LOMMF) supports long-reach 10G and short-reach 40G/100G Ethernet

• Connector Configuration:

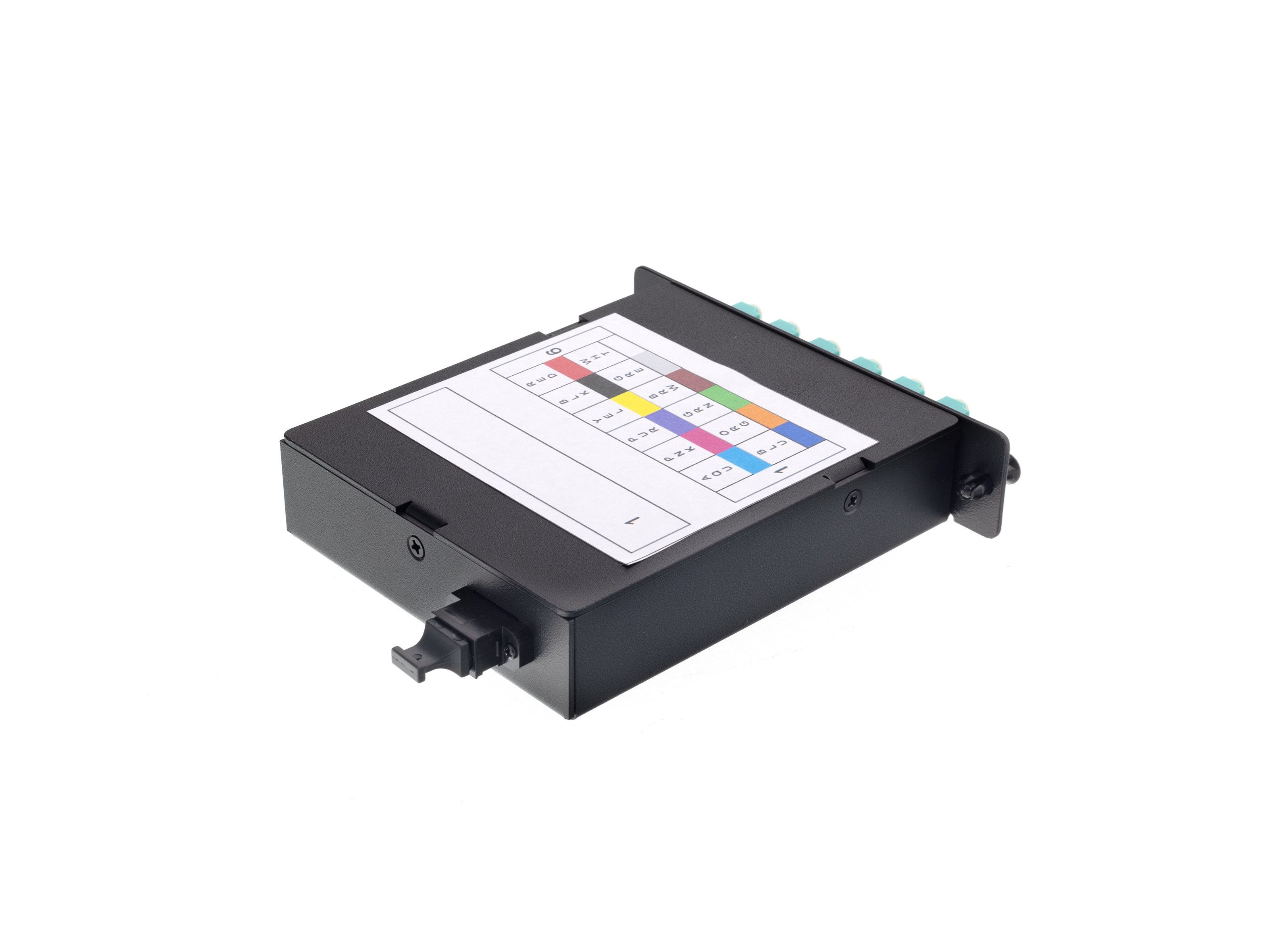

  • Rear: (1) MTP® Female, 12-Fiber

  • Front: (6) LC Duplex Ports (12 LC total)

• High-Density Design: Compact LGX-style cassette fits standard rack enclosures, ideal for data center patching

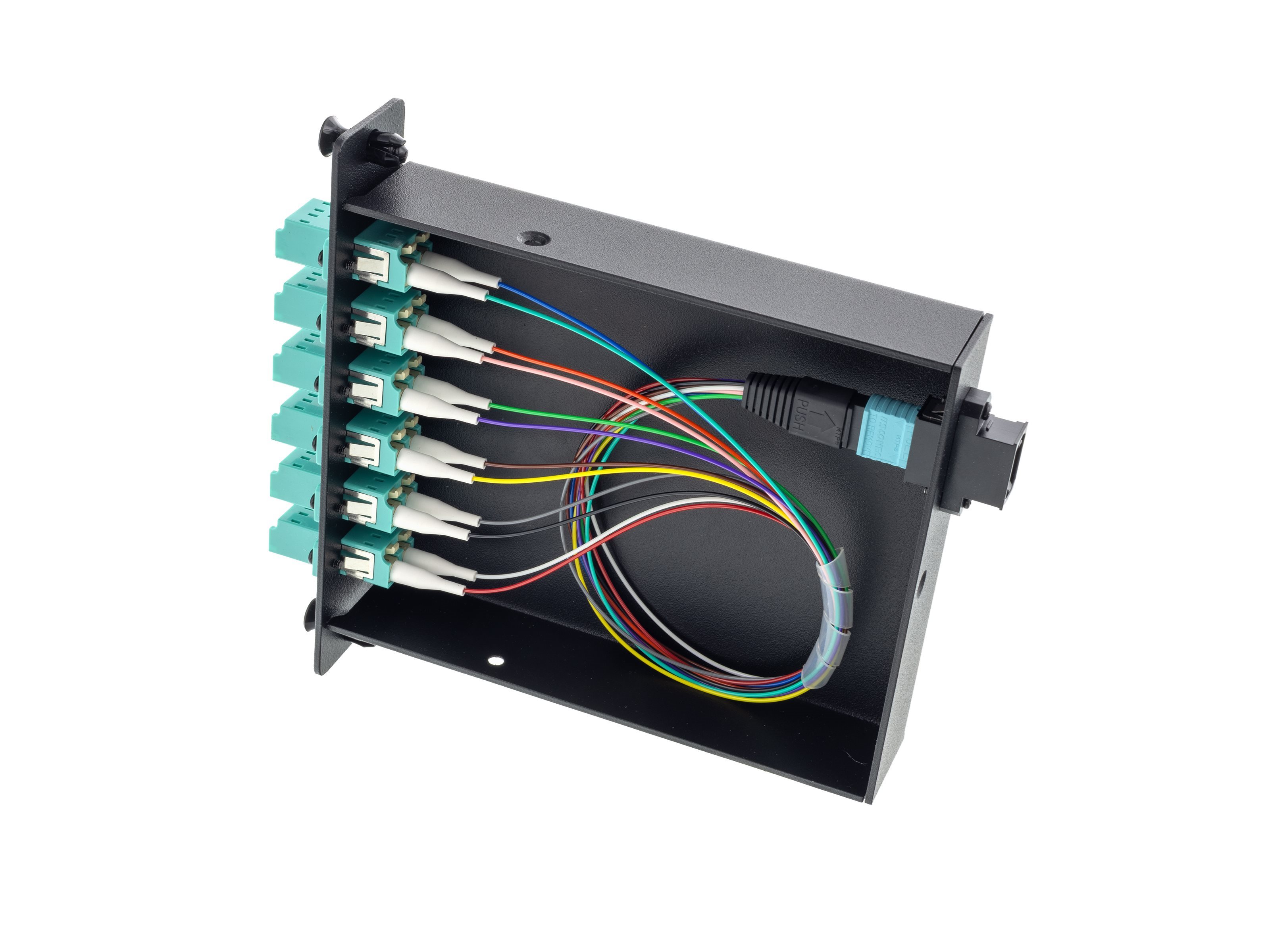

• Pre-Terminated & Labeled: Factory-tested internal fanout with labeled ports for polarity clarity and fast deployment

• Color Coding: Aqua LC ports for OM4 identification; top label diagram for fiber channel mapping

• Durable Housing: Sturdy steel construction with snap-in mounting latches

Ideal Applications

• 10G to 100G data center interconnects

• Parallel optics deployments using MTP® trunks

• Modular patching systems for enterprise networks

• High-density backbone or SAN cabling
