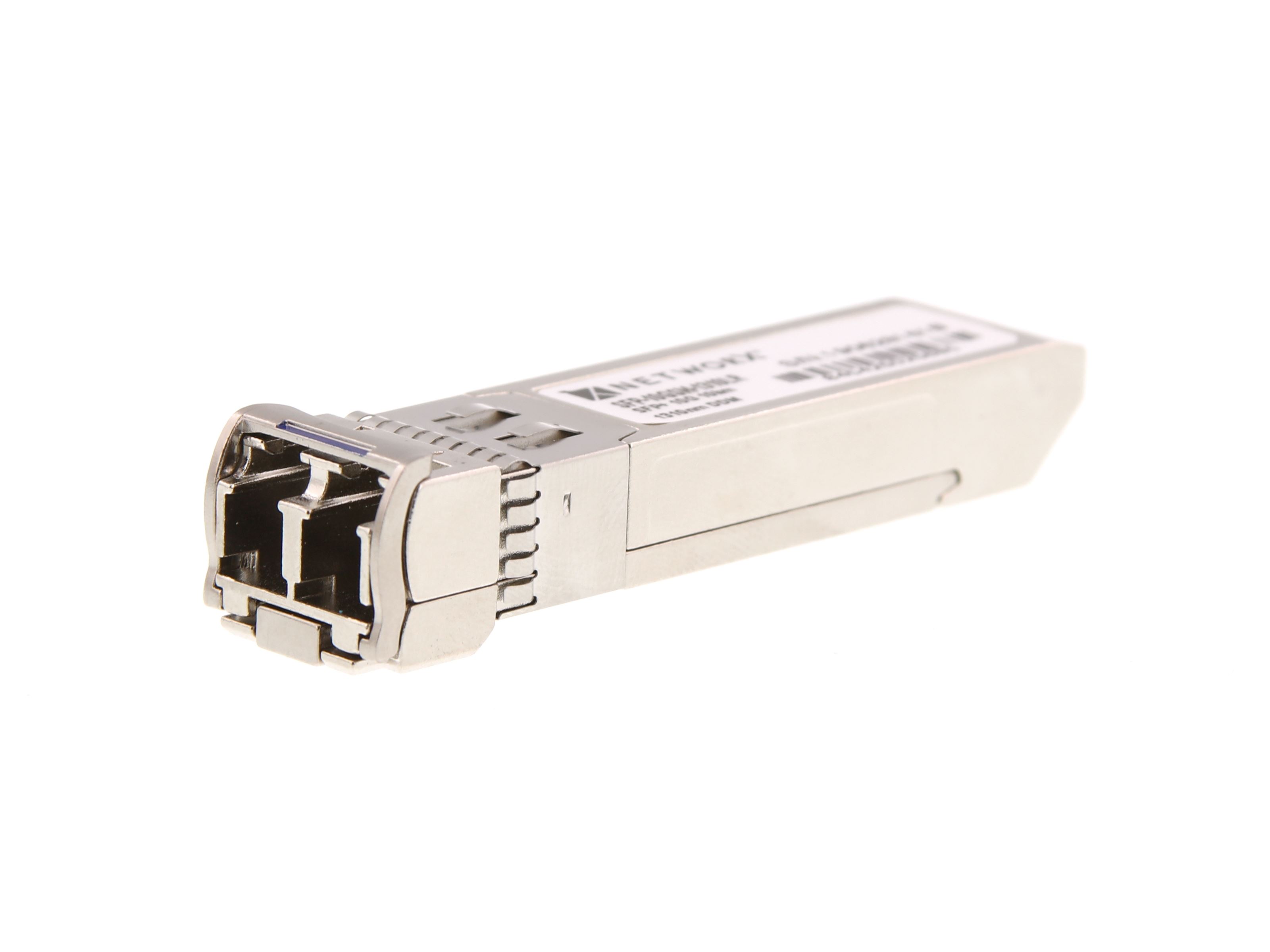

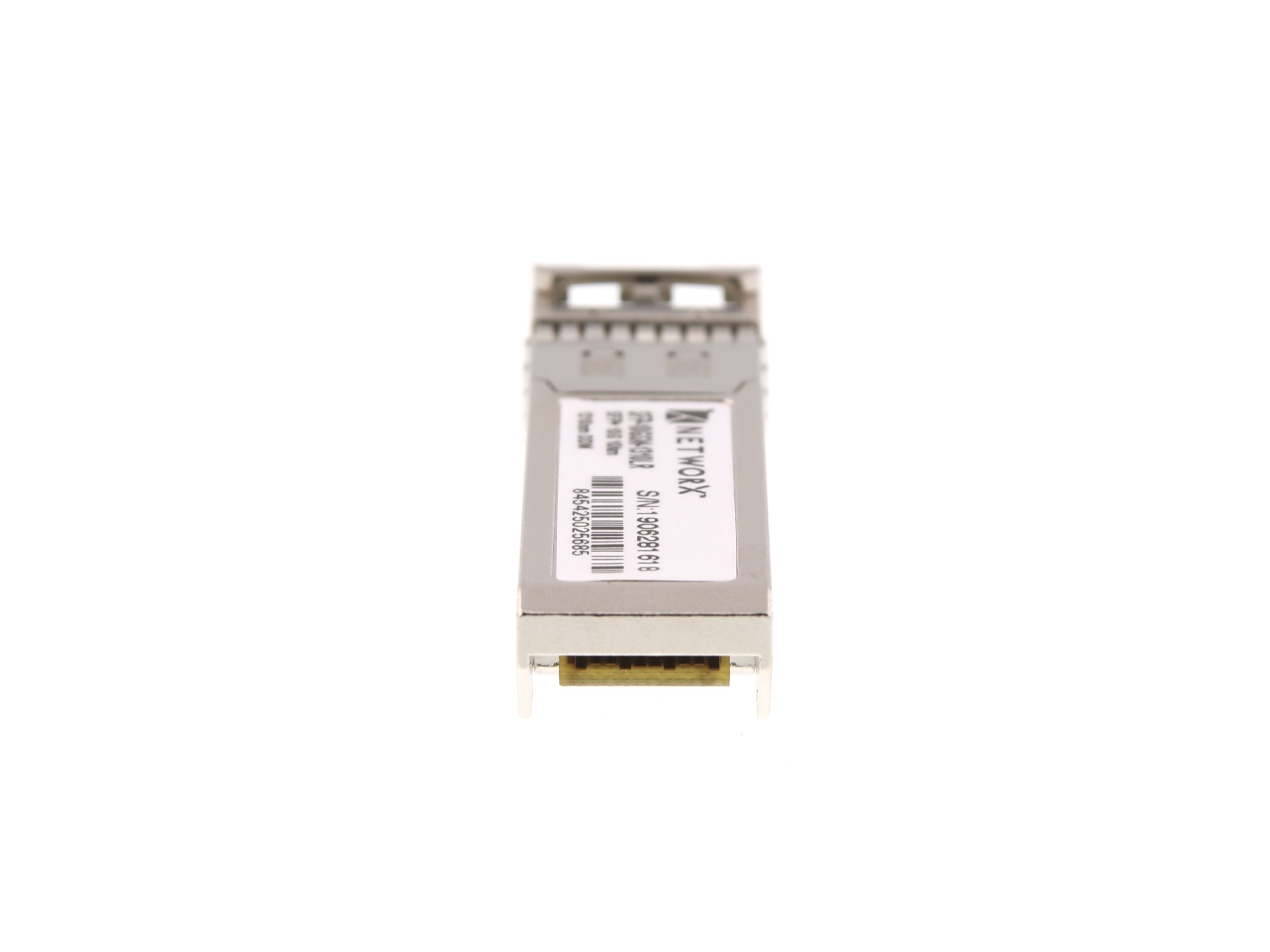

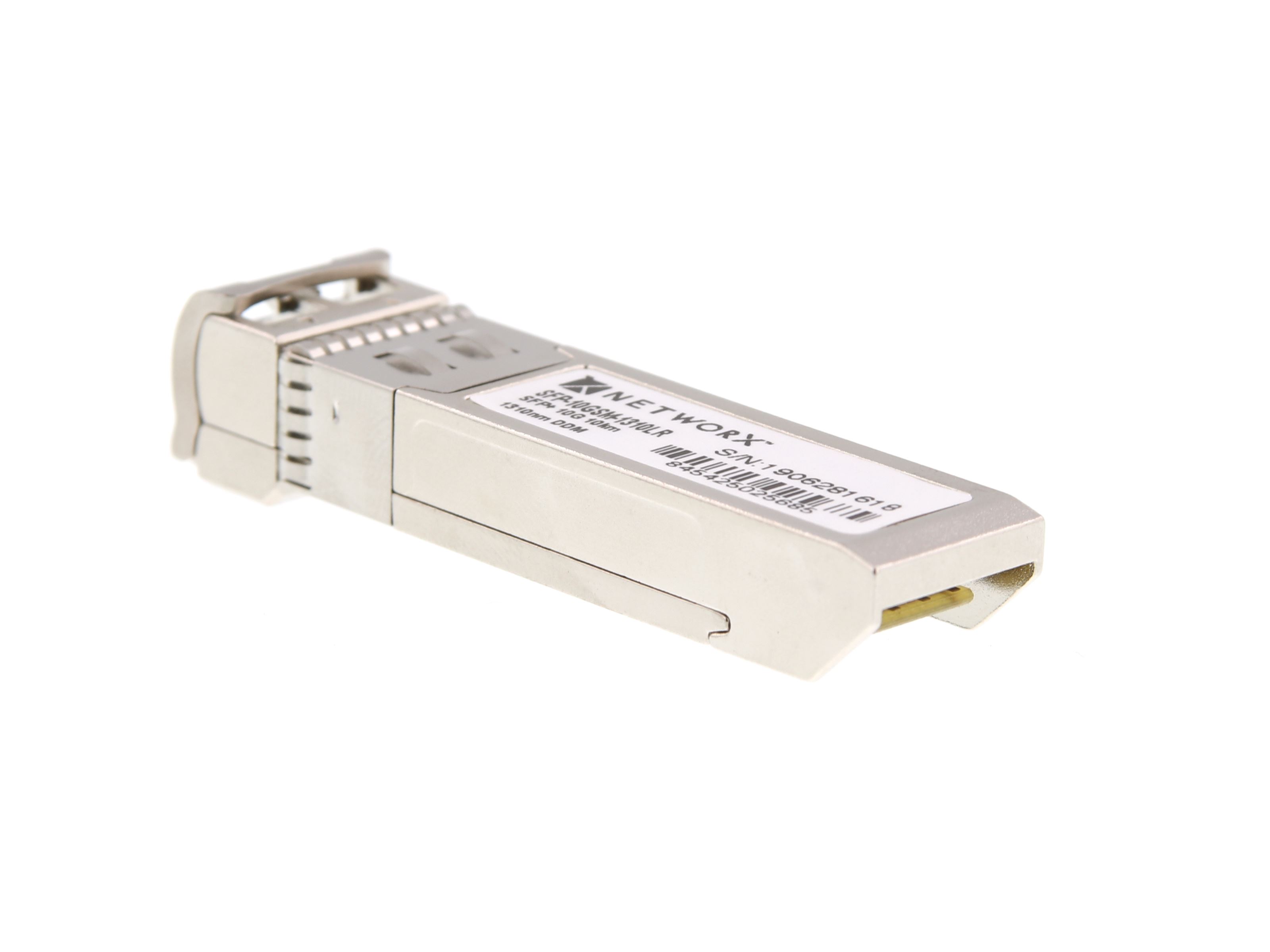

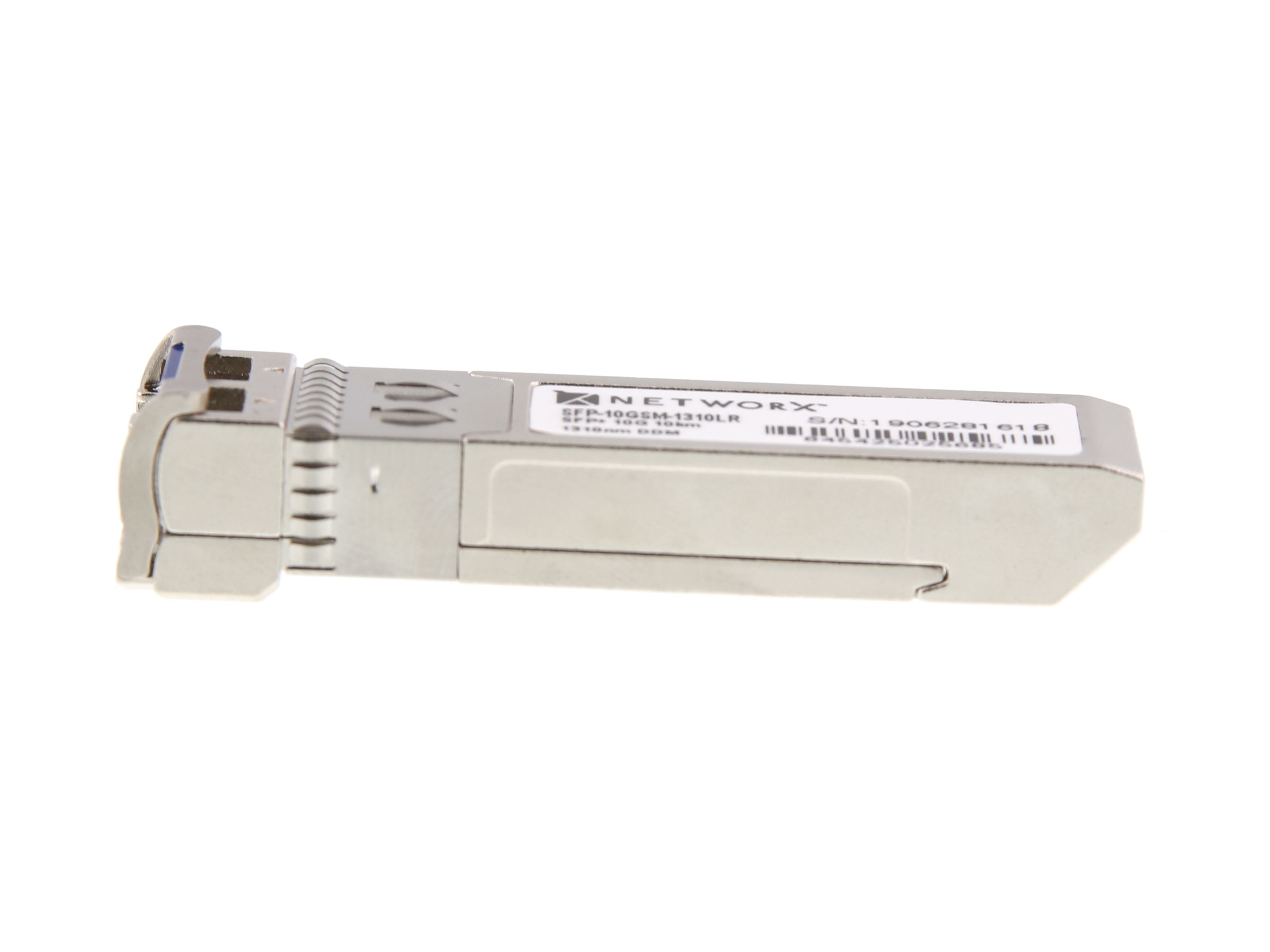

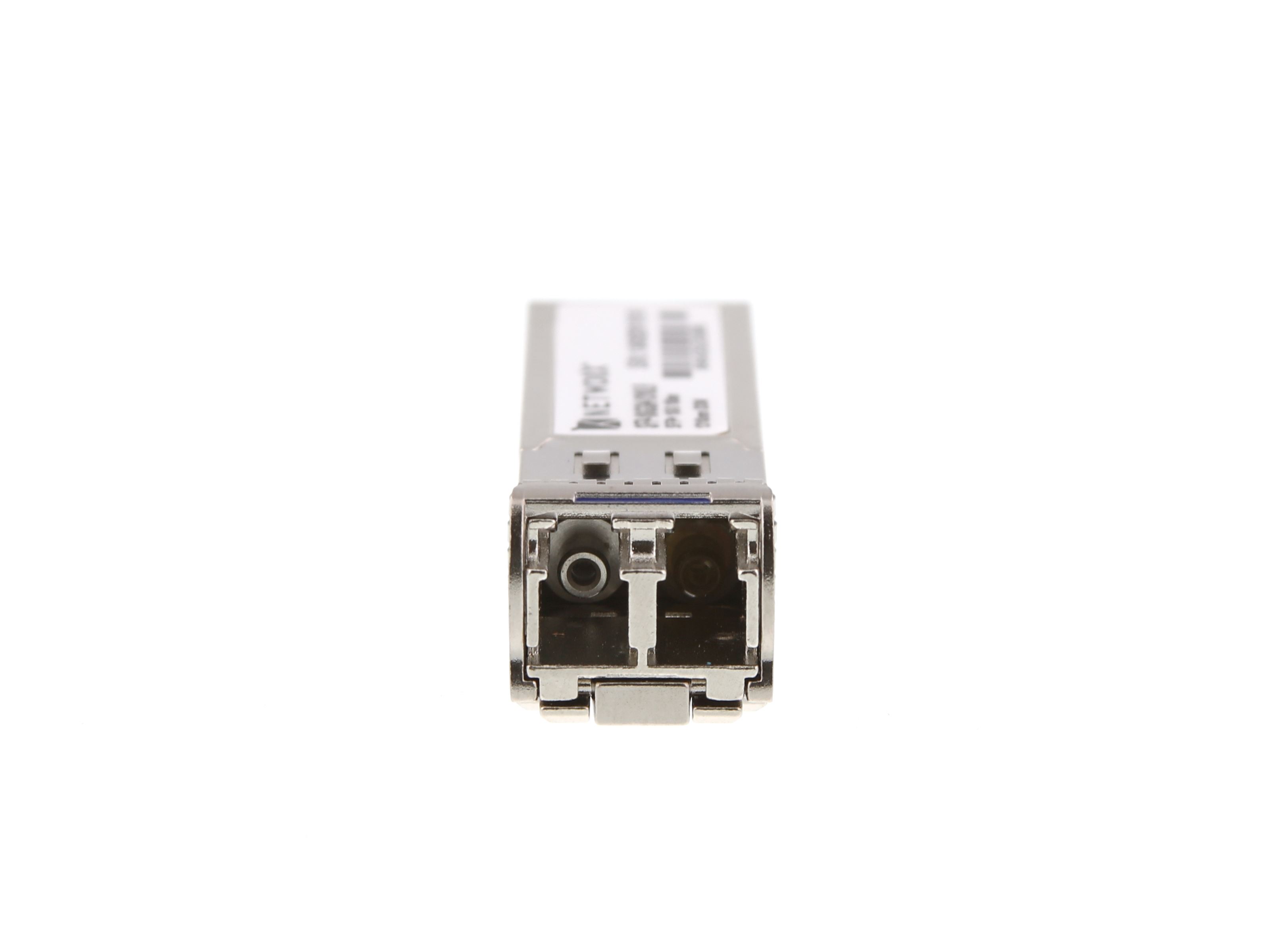

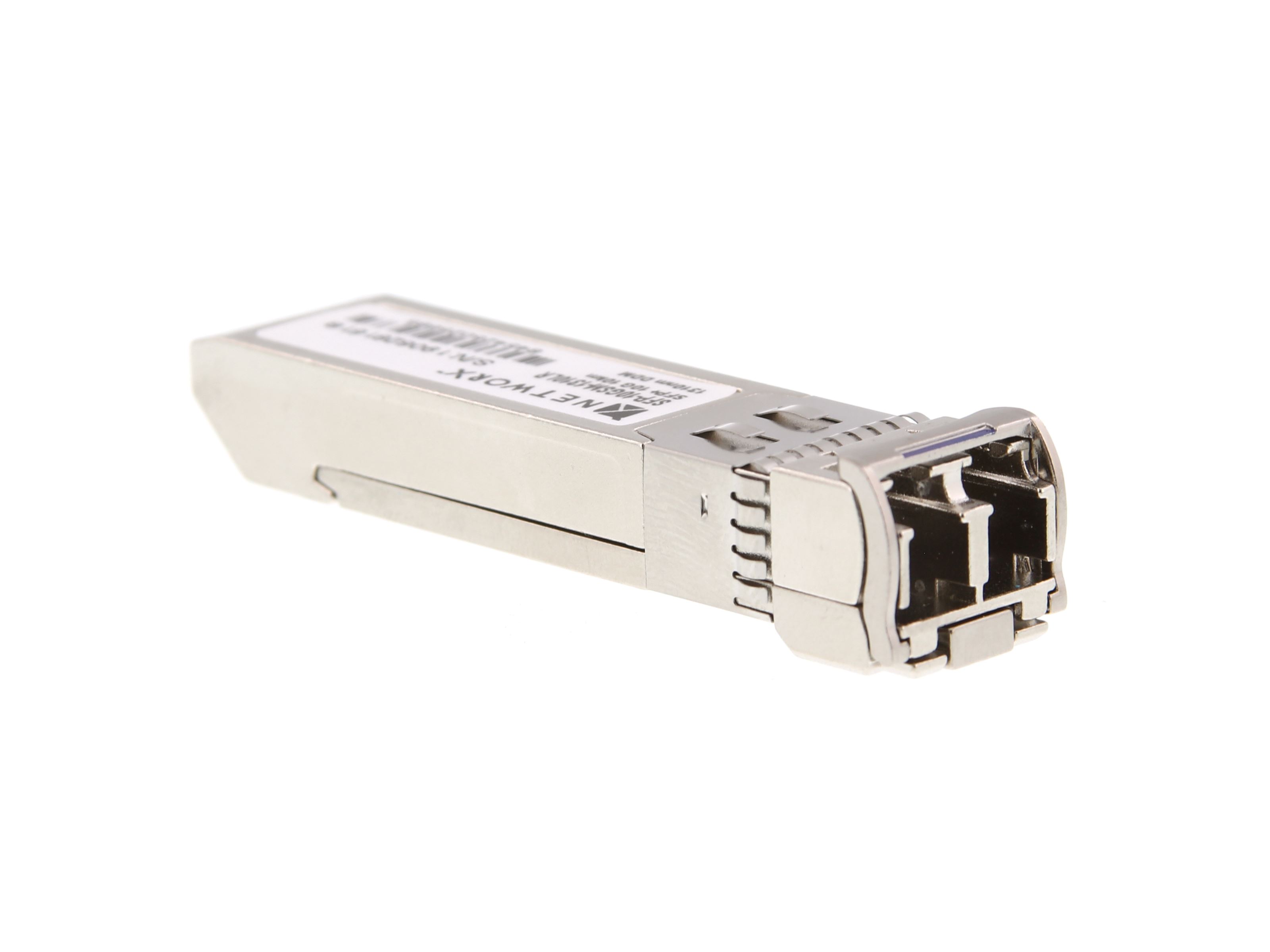

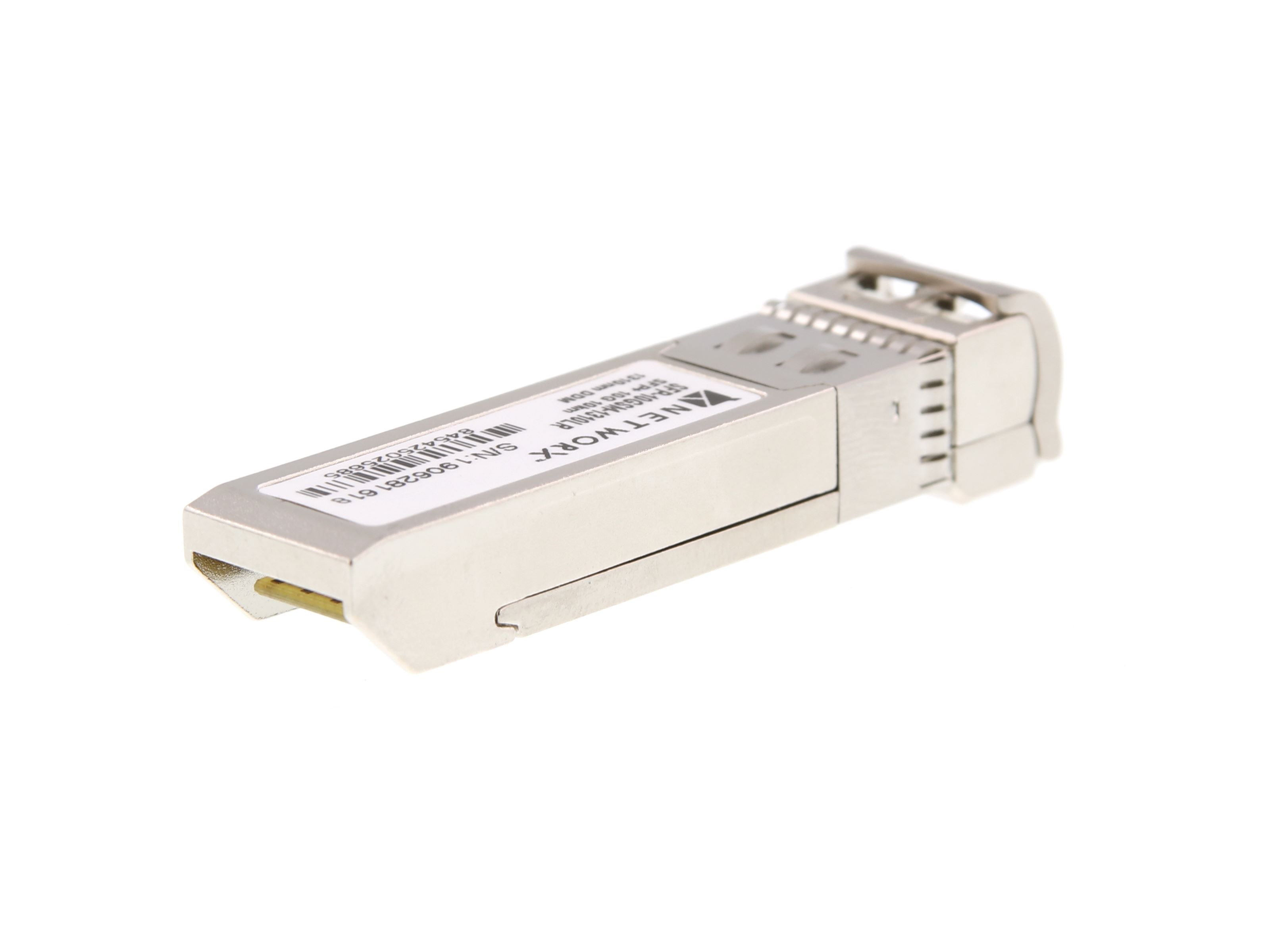

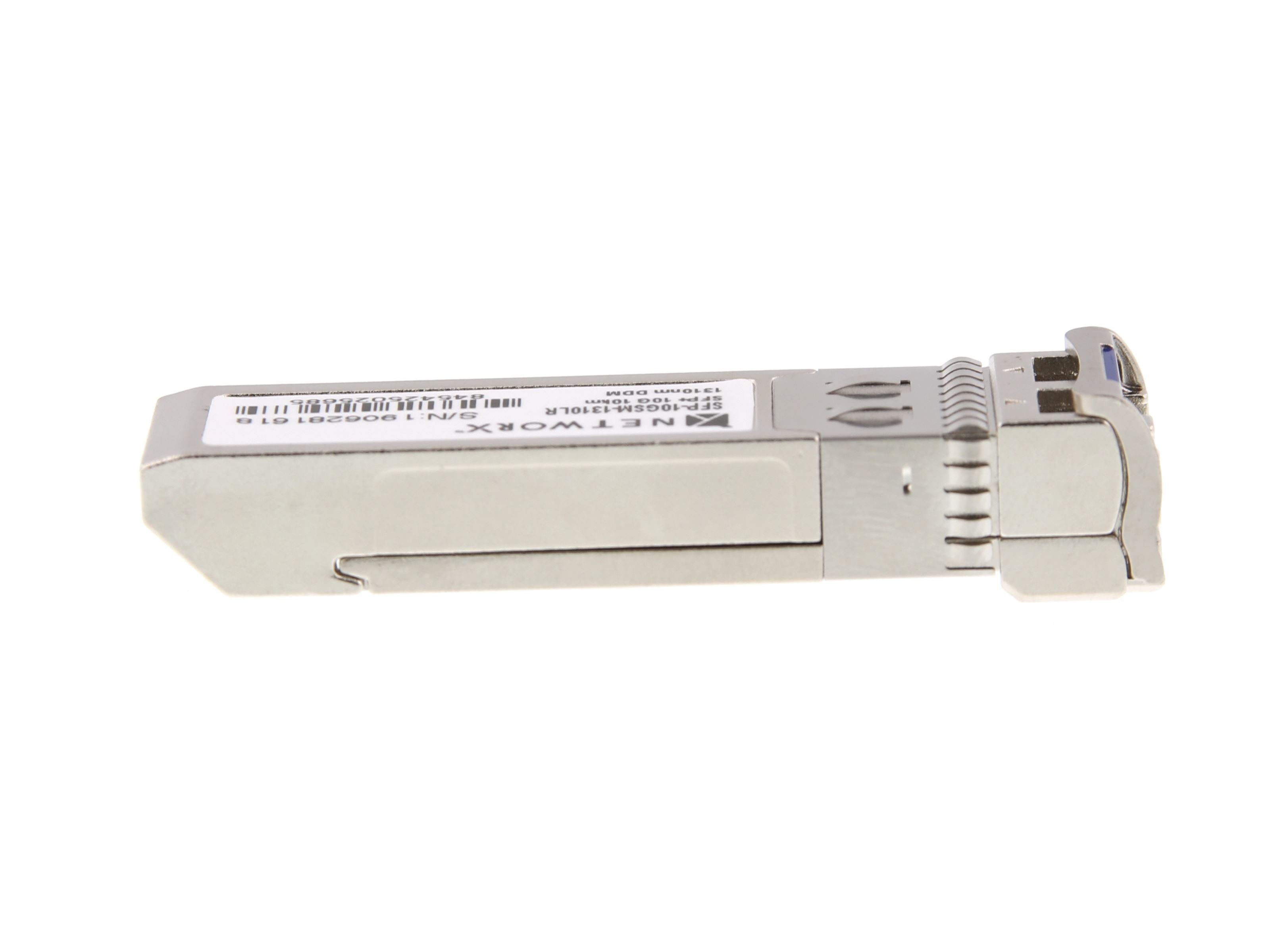

SFP+ 10 Gigabit Fiber Module - 10GBase-LR, LC Singlemode, 10km, 1310nm

Find the perfect pairing for your 10Gig network! This 10GBase-LR SFP+ is designed to work with the Networx® 10 Gig Media Converter!
SKU: SFP-10GSM-1310LR
$53.19

Get the most out of your network equipment with this 10 Gigabit 10BaseG-LR SFP+ Fiber Modules from Networx®. SFP or Small Form Pluggable Optical Modules are compact, hot-swappable media connectors that allow for quick and easy network connectivity for a wide variety of networking equipment. This SFP module is designed to work with the Networx® 10 Gigabit Media Converter box. The creation and standardization of the SFP allows for a single product to extremely flexible and allow for the reduction of excess units and surplus fiber often required for fixed installations.

  • Data Rate - 10 Gbps
  • Laser Type - DFB Laser
  • Mode - Full Duplex
  • Optical wavelength - 1310nm
  • Fiber Type (micron) - Singlemode 9/125
  • Max Distance - 10 kilometers over 9/125 Fiber
  • Optical Ouput Power - -6 ~ 0.5dBm
  • Receiving Sensitivity - <-14.4dBm
Products specifications
Attribute nameAttribute value
Power Supply+3.3V
Maximum Data Transfer Rate10 Gbps
Style10G SFP SM 1310nm LR
Maximum Transfer Distance10km
Wavelength1310nm
Warranty3 Year Warranty
Laser TypeDFB
ManufacturerNetworx®
ComplianceSFF-8431, IEEE 802.3ae, 10GBASE-LR/LW
Fiber TypeSinglemode
RoHS CompliantYes
ColorSilver
SKUSFP-10GSM-1310LR
GTIN00845425025685
