6U Swing Out Wall Mount Cabinet - 301 Series, 24 Inches Deep, Fully Assembled

Get Organized with this Fully Assembled 12U Swing Out Wall Mount Cabinet from Networx®.
SKU: WMC-S301-6U

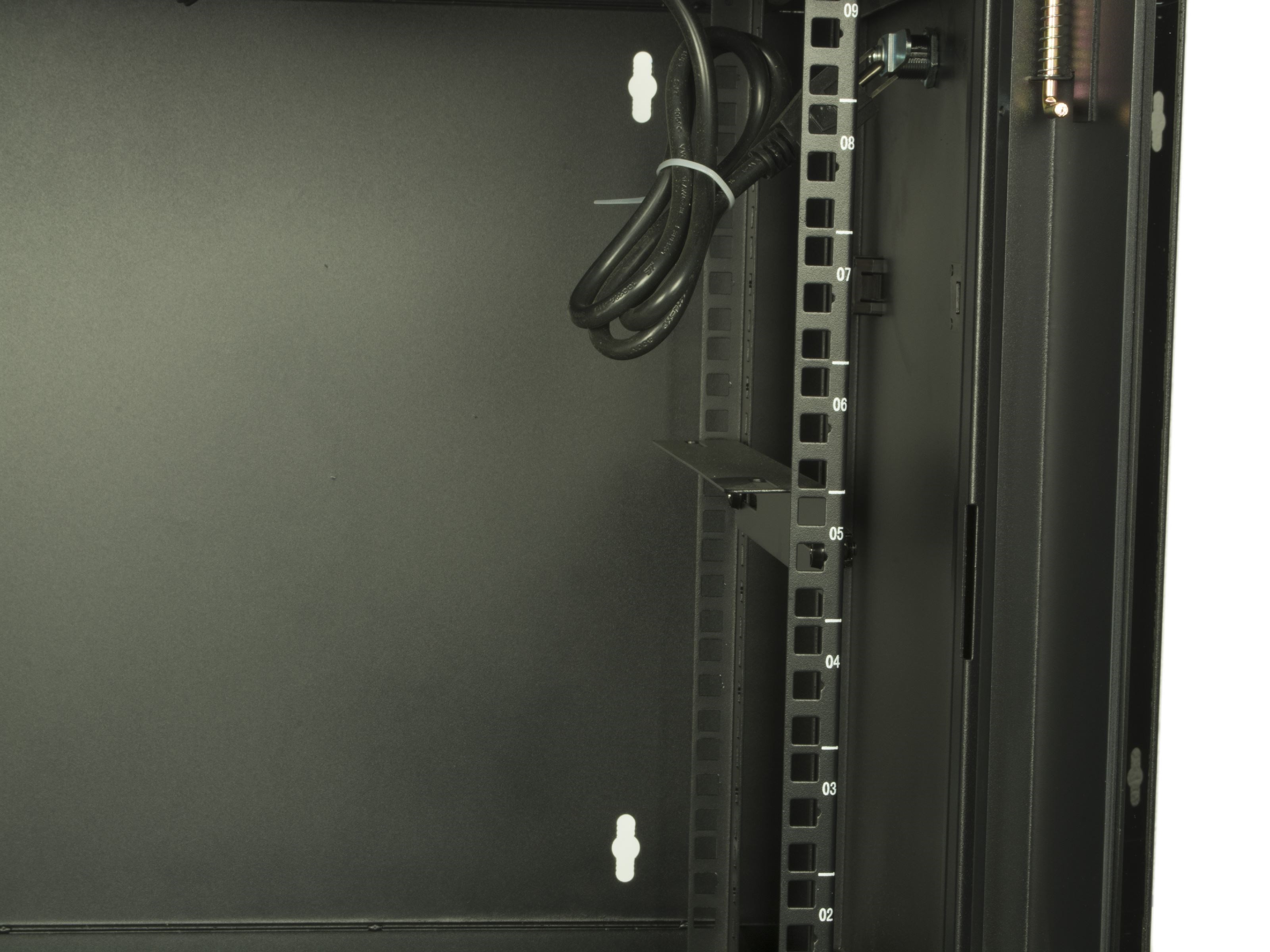

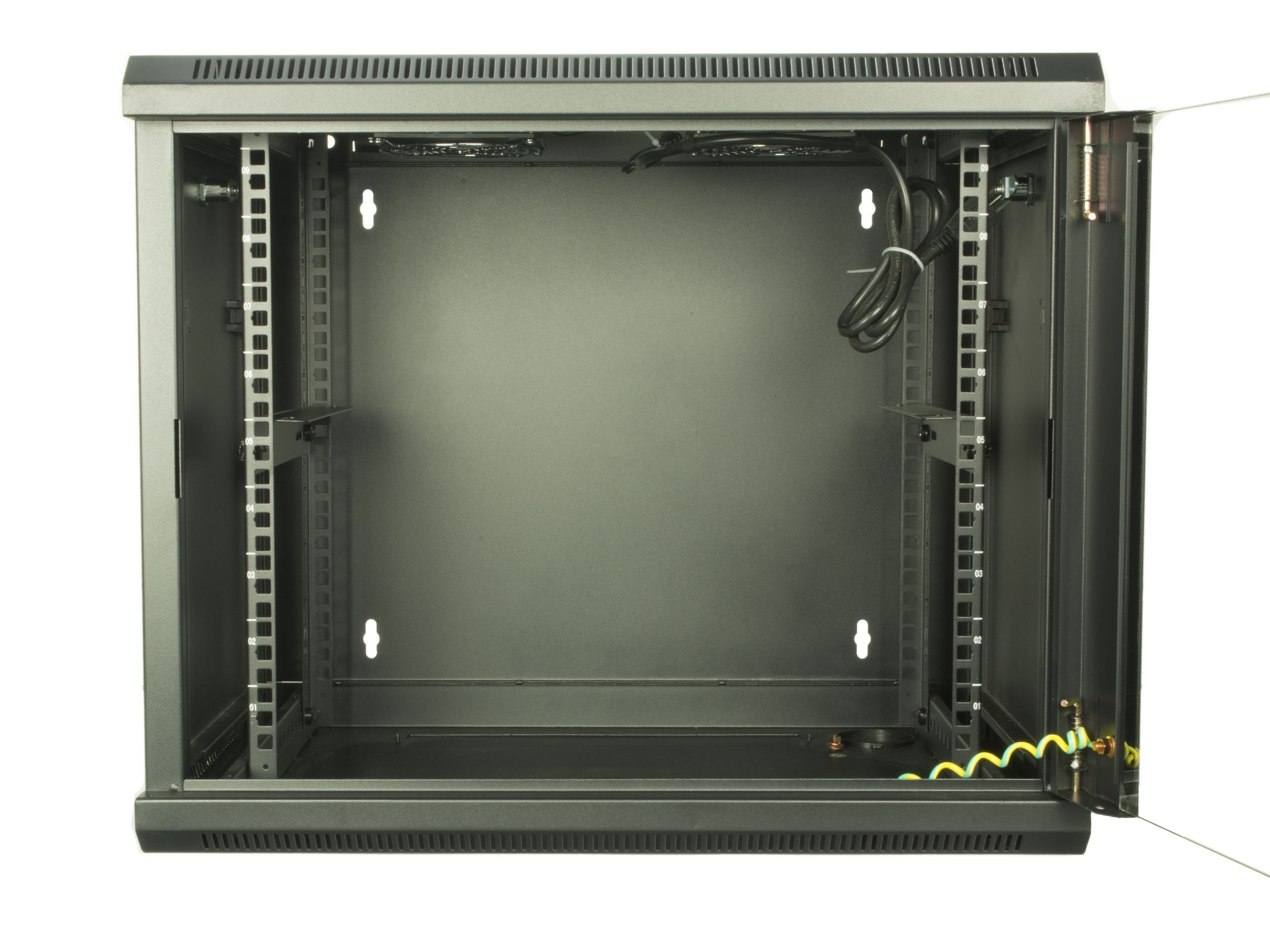

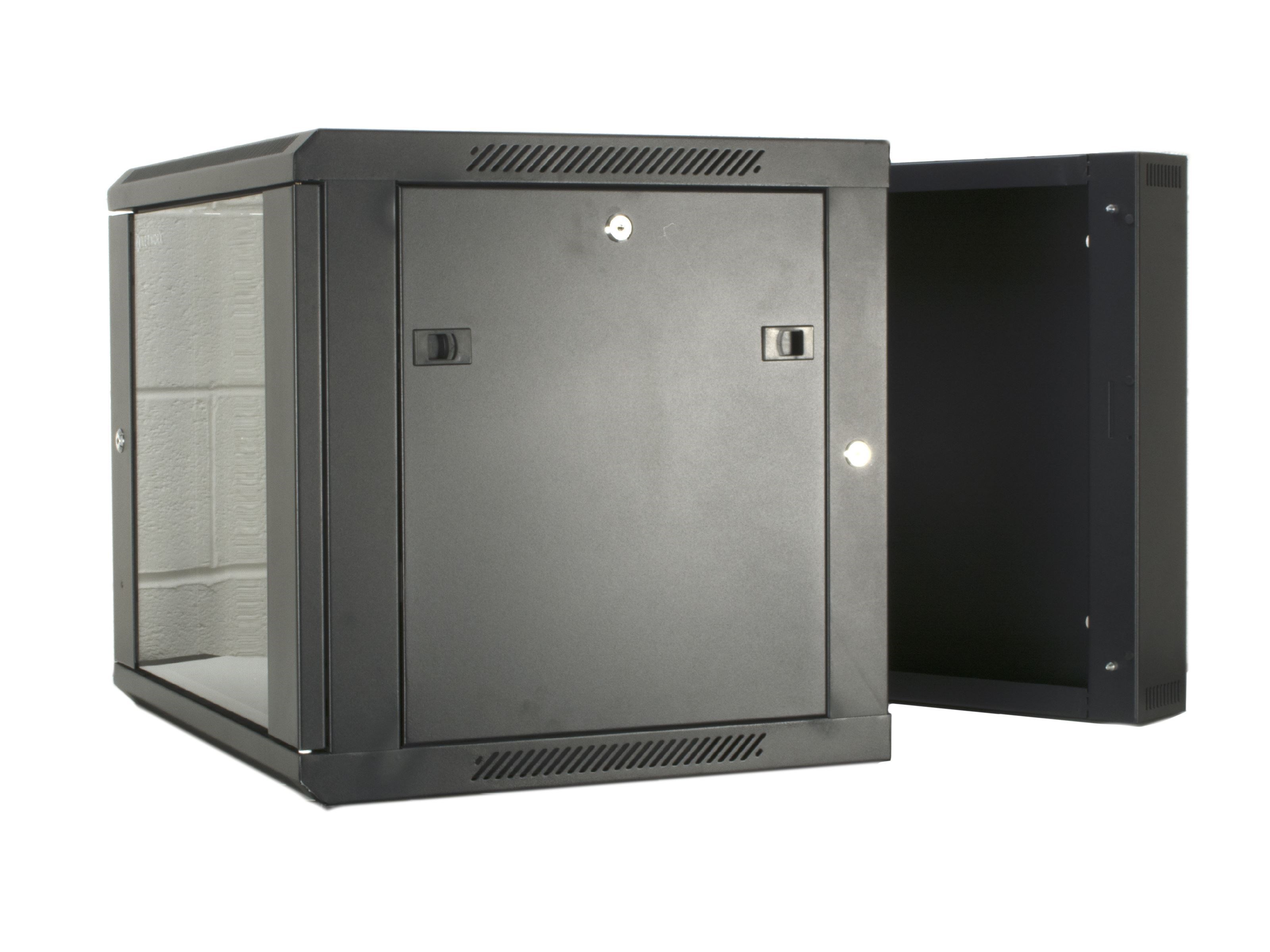

Get organized with the 6U 301 Series of Swing Out Wall Mount Cabinets from Networx®. The Swing Out style of cabients allows for the rear door of the cabinet to open up and allow even great flexibility and access. This cabinet comes equipped with some of the most requested features. Starting with the basics, this Wall Mount Cabinet is constructed with high quality SPCC Cold-Rolled Steel Panels. All Networx® Wall Mount Cabinets come with removable side panels, which include vents to keep equipment cool, to allow for quick access to sensitive networking equipment. All front panels swing out for easy access to loaded network equipment and include a window of 5mm tempered glass. Adjustable rails allow for full customization to allow a variety of networking equipment to fit securely. The rails are punched to allow for the installation of M6 Cage Nuts. Both Side Panels and Front Door are lockable with the included set of keys. Top/Bottom/Rear knockouts for cable entry and exit. All racks are designed to house 19" rack mountable equipment.

  • 6U Rack Mount Units
  • Designed for equipment with a 19” mounting profile
  • Vented Top/Sides/Front Panels for adequate airflow

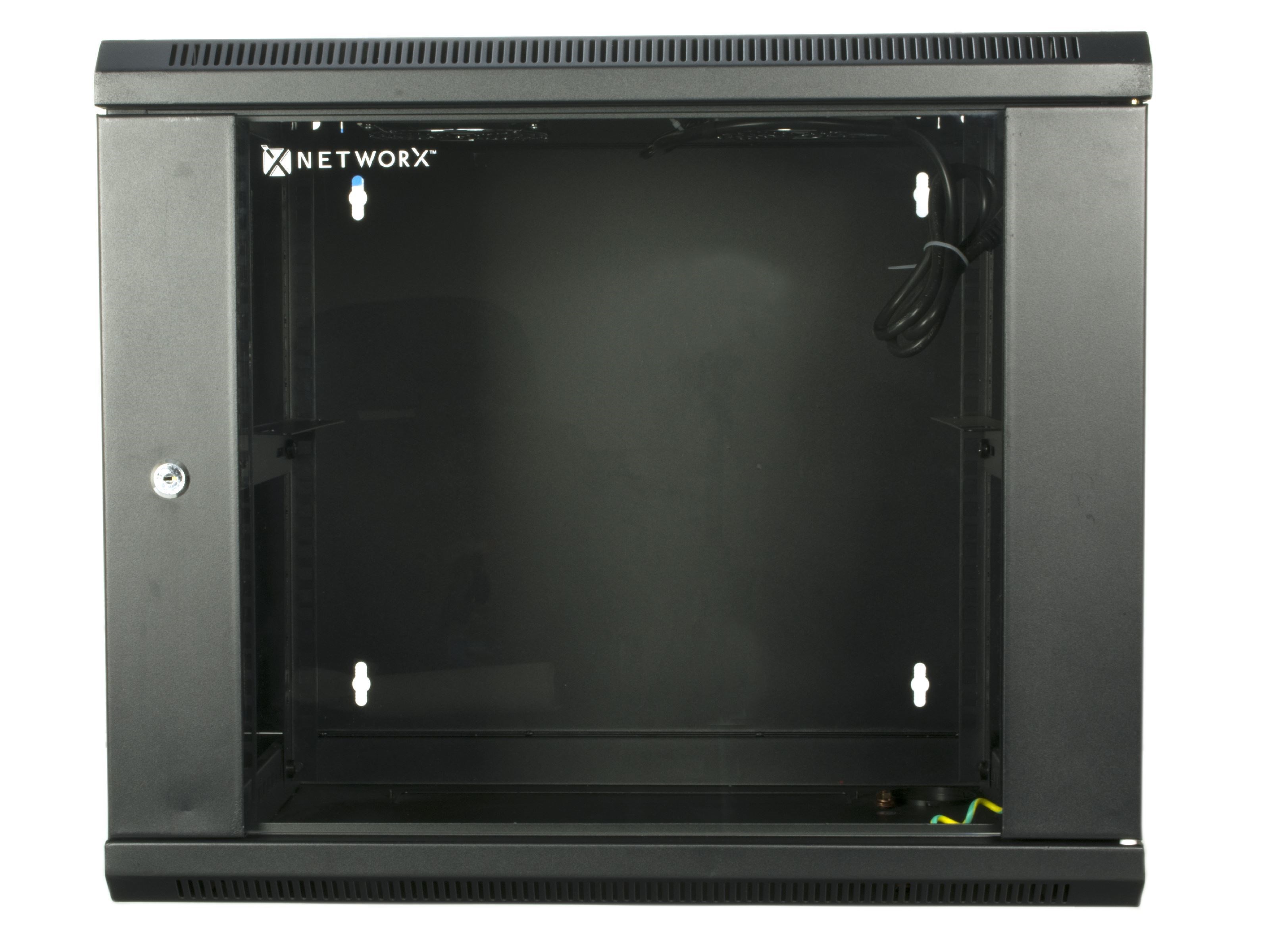

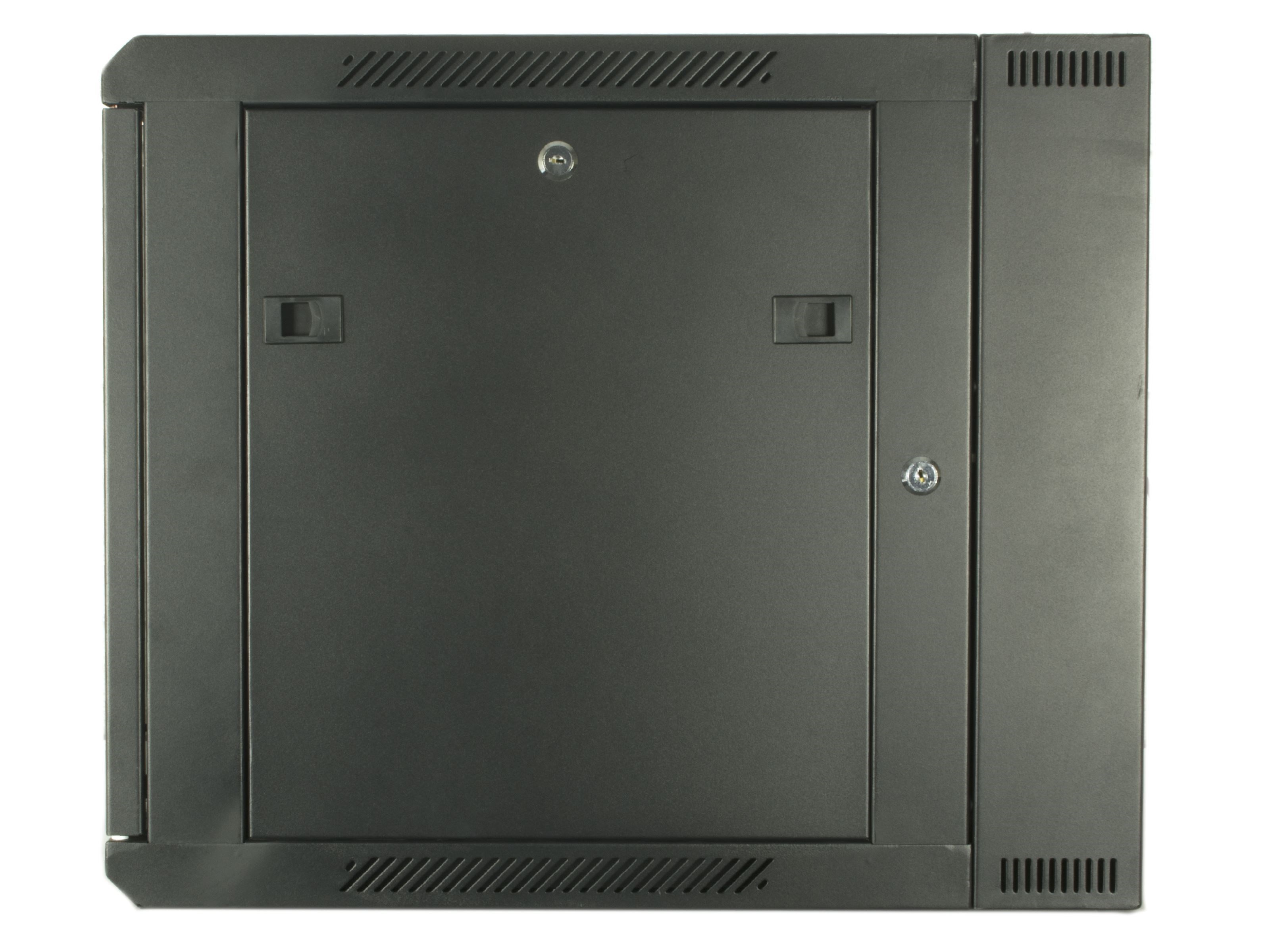

  • Reversible front door with tempered glass window

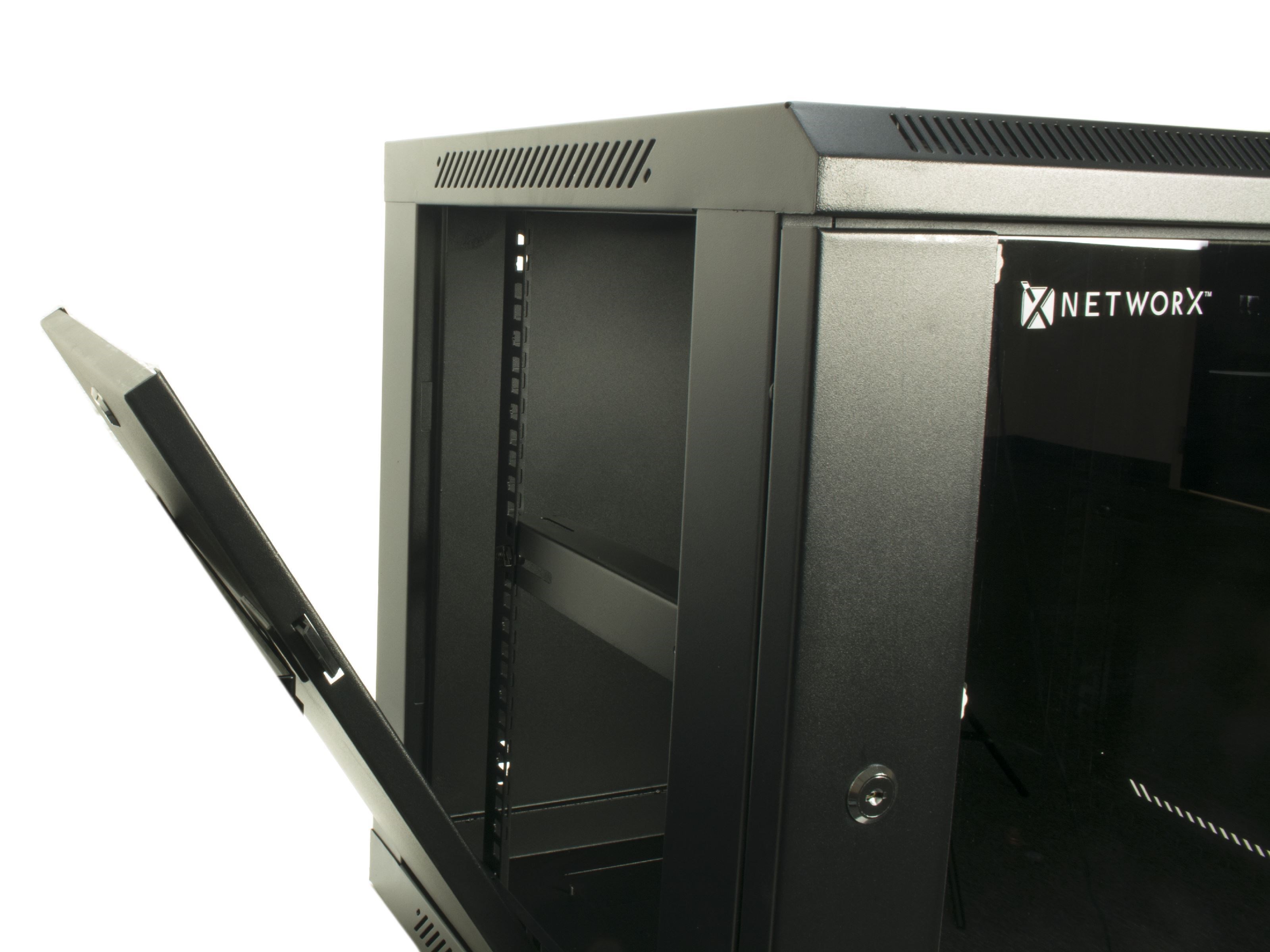

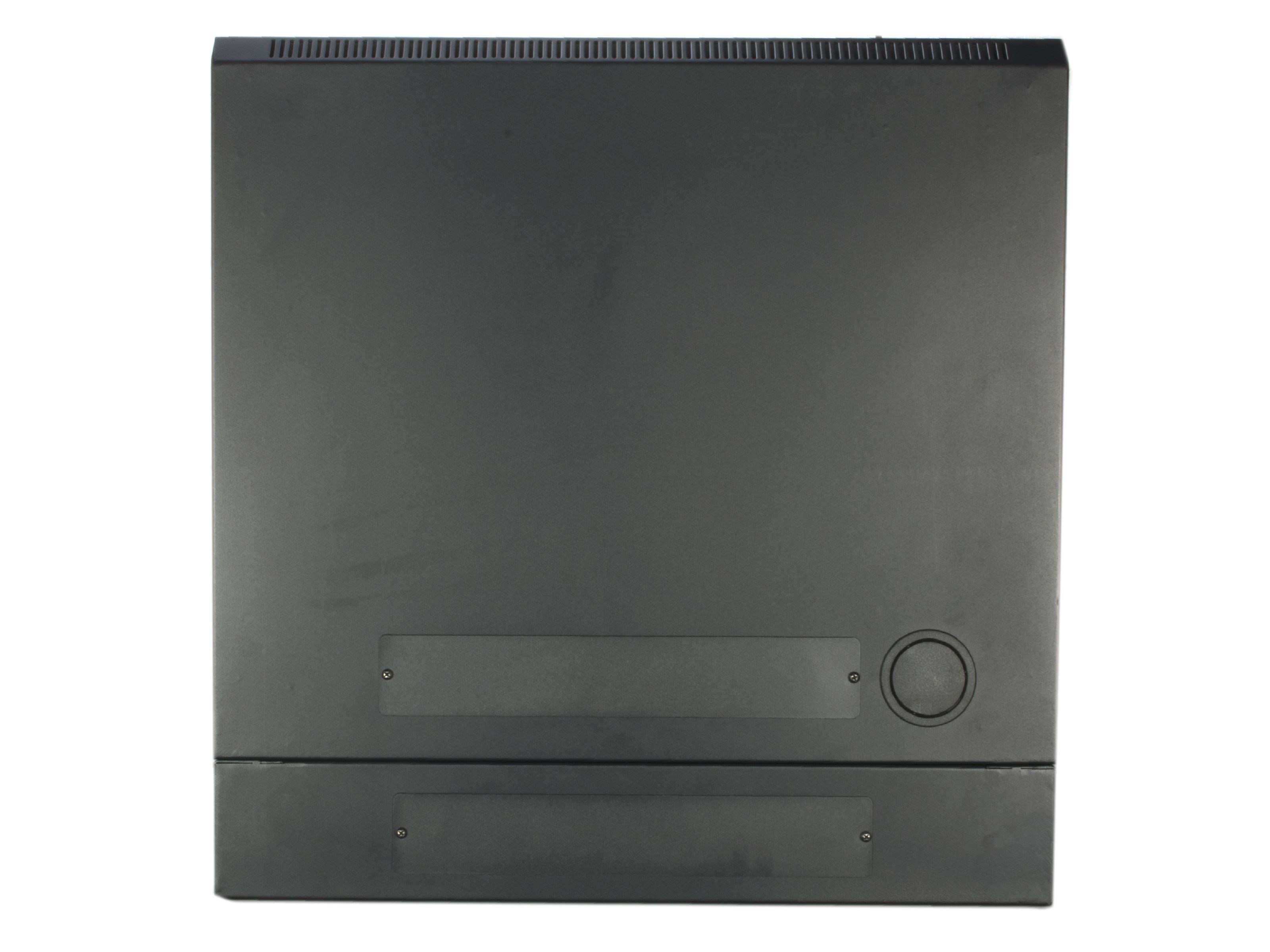

  • Removable side panels for easy access to equipment
  • Front and Side Panels are lockable with included set of keys

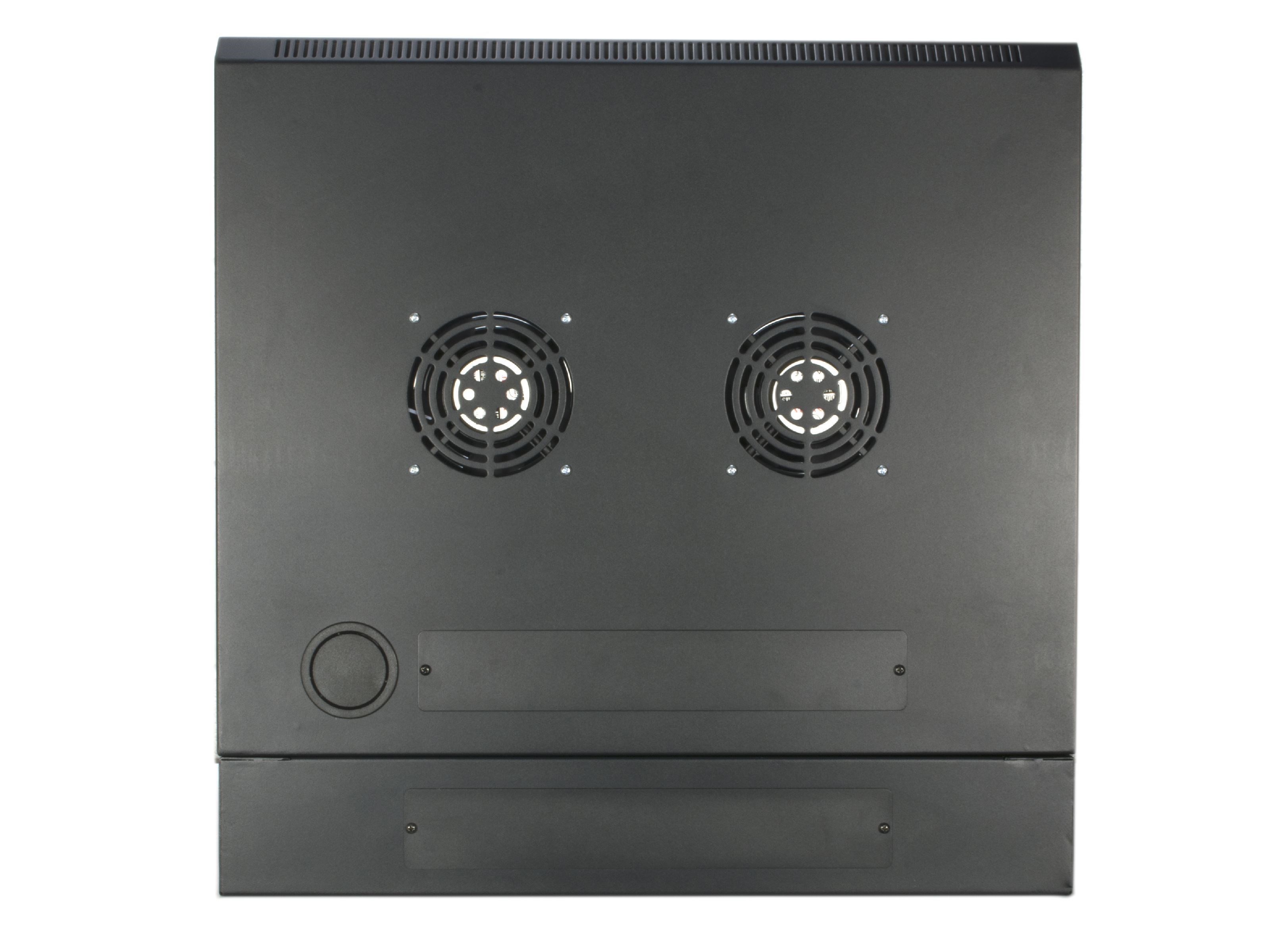

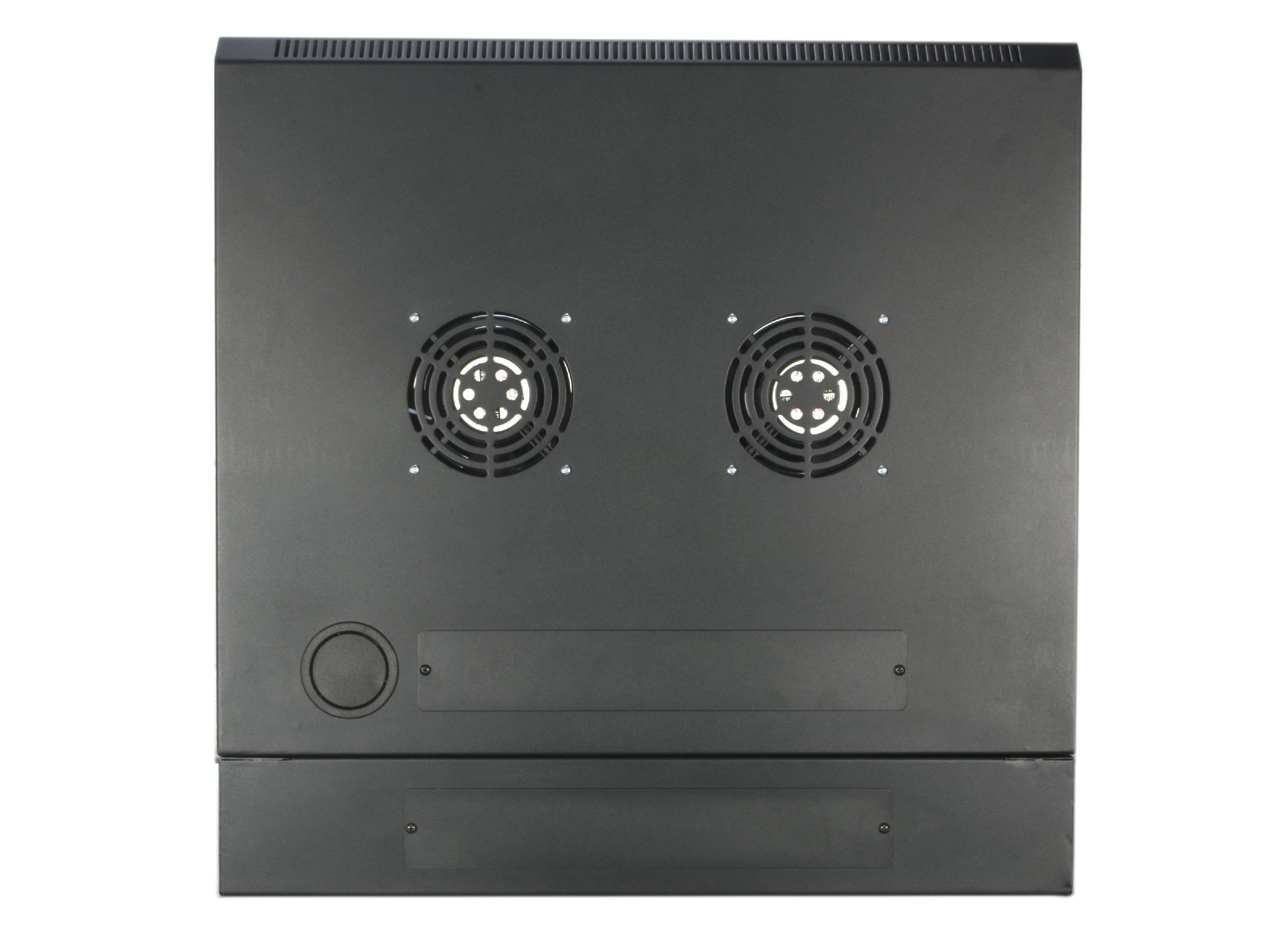

  • Top/Bottom/Real Knockouts for easy cable entry and exit
  • Supports up to 130lbs when secured properly
  • Fully Assembled
Products specifications
Attribute nameAttribute value
Cage Nut RailsFront & Rear
Delivery StyleAssembled
Door StyleTempered Glass

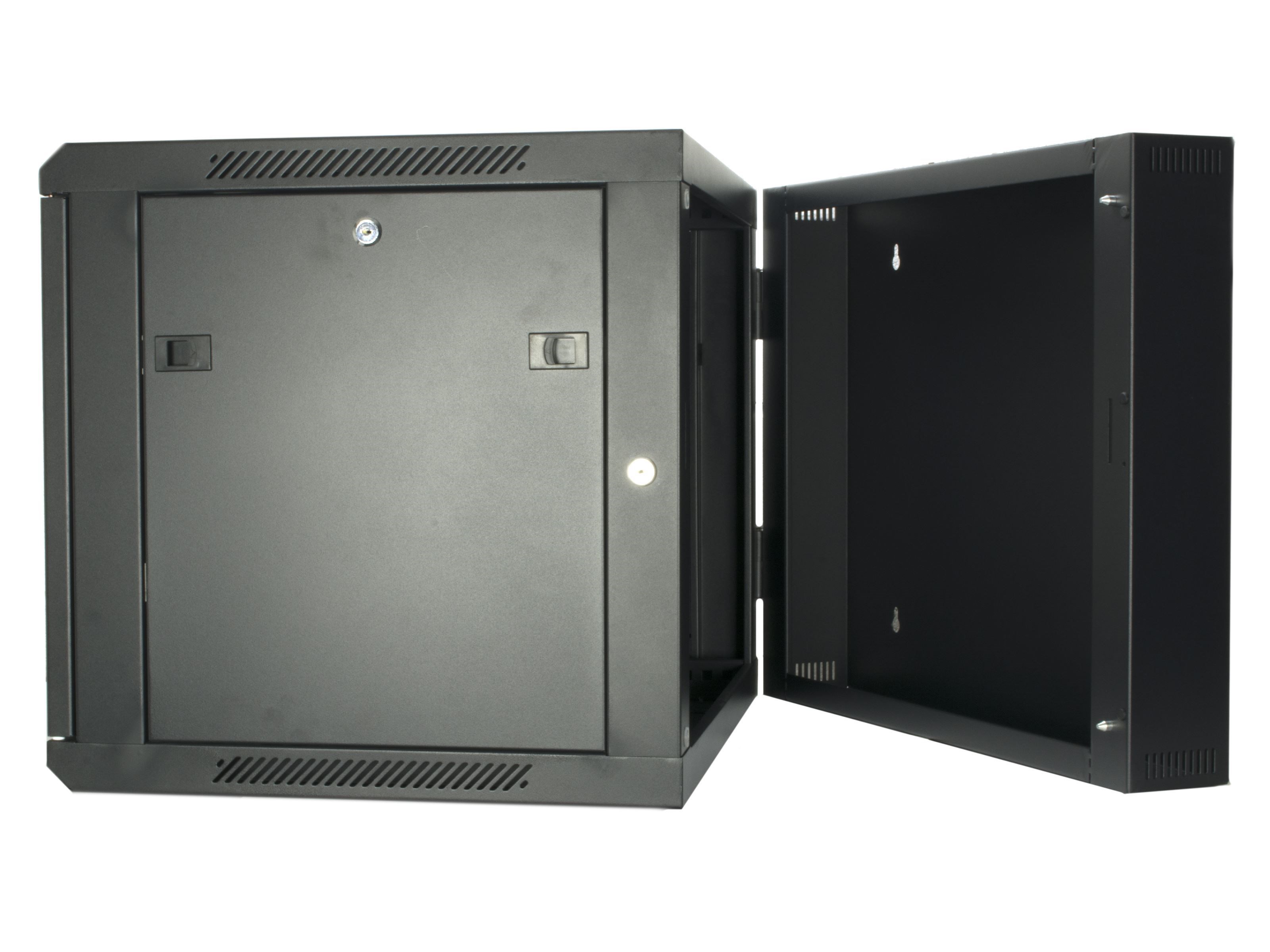

Hinged Swing Out DesignYes
Internal Mounting Format19"

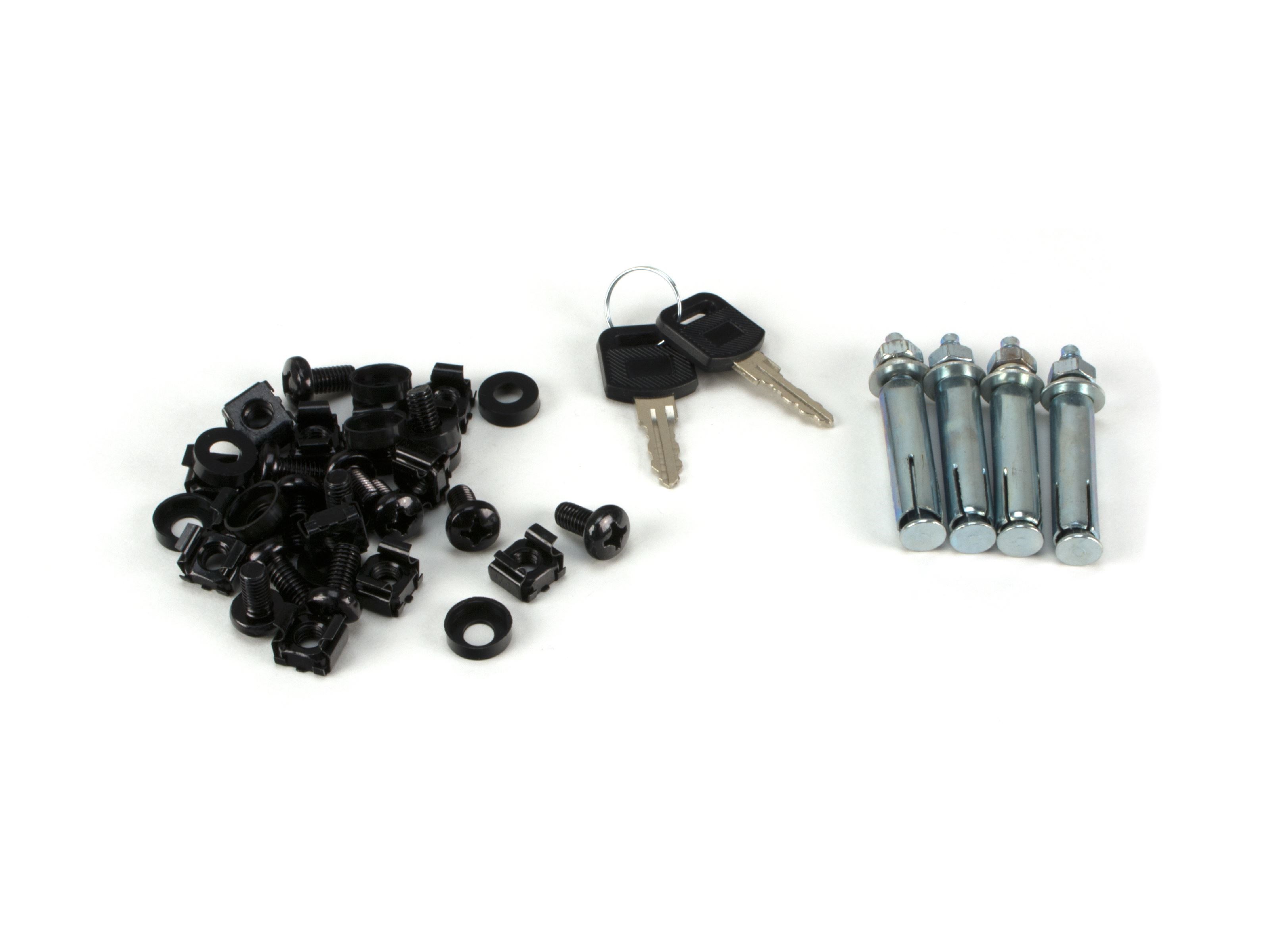

Key Lock Set (2 Keys per Set)1 Set
Load Capacity130 lbs
Locking Side PanelsYes
Rack Height (Assembled)13.2 Inch
Rack Size Depth (Internal)24" (19")
Rack Size Width (Internal)24" (19")
Reinforced Door FrameYes
Structure & FabricationSPCC Cold-Rolled Steel Sheets
Vented Side PanelsRemovable
